fix(build): make command compatible on windows

- Replaces AtCommand with WidgetPannel
- Adds export/import, local storage support
- Implements translation (i18n)
- Improves UI spacing and grid logic
- Adds reset-to-default and command loop composables

.eslintignore

@@ -0,0 +1,2 @@
+node_modules
+dist

.gitattributes

@@ -0,0 +1 @@
+*.sh eol=lf

LICENCE.txt

@@ -0,0 +1,21 @@
+The MIT License (MIT)
+
+Copyright (c) 2024 kerms
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

README.cn.md

@@ -0,0 +1,85 @@
+# wireless-esp32-tools 网页用户界面
+
+本项目是 [wireless-esp32-tools](https://github.com/kerms/wireless-esp32-tools) 项目的网页用户界面。
+
+`wireless-esp32-tools` 项目为多种ESP芯片提供了兼容CMSIS-DAP的无线调试工具，可将ESP芯片变为一个功能强大的无线调试器。
+
+## 关于此网页界面
+
+此Web应用程序提供了一个用户友好的仪表板，用于管理您的 `wireless-esp32-tools` 设备并与之交互。它采用 Vue.js 3、Vite 和 Element Plus 构建，并设计为直接托管在 ESP32 上。
+
+通过此界面，您可以构建一个自定义的仪表板来监控目标设备并与之交互。
+
+### 主要功能
+
+*   **Wi-Fi配置**：包括终端模式(STA)和热点模式(AP)，支持静态/动态IP地址分配和DNS设置。
+*   **动态组件仪表板**：一个完全灵活的基于网格的面板。
+*   **实时数据可视化**：包括一个用于监控目标设备串行通信的UART数据查看器。
+*   **嵌入式优先设计**：部署为单个.html文件以减少http连接数。
+*   **适用于小屏幕设计**：响应式布局适配移动设备和平板电脑，具有触摸友好的控件和针对小屏幕优化的UI元素。
+
+## 界面截图
+
+**组件面板**
+![组件面板](assets/widgetPannel.png)
+
+**UART数据显示**
+![UART数据显示](assets/uart.png)
+
+## 使用说明
+
+### 最终用户
+
+1.  将您的计算机或移动设备连接到运行 `wireless-esp32-tools` 的ESP32所承载的Wi-Fi网络。
+2.  打开Web浏览器并导航到ESP32设备的IP地址（例如 `http://dap.local` 或 `http://192.168.1.1`(连接AP的情况下)）。
+
+### 开发人员 (针对此Web UI)
+
+请按照以下步骤设置项目以进行本地开发或构建以进行部署。
+
+#### 环境准备
+
+*   [Node.js](https://nodejs.org/) (v16 或更高版本)
+*   [npm](https://www.npmjs.com/)
+
+#### 本地开发
+
+1.  **安装依赖：**
+    ```sh
+    npm install
+    ```
+2.  **运行开发服务器：**
+    ```sh
+    npm run dev
+    ```
+    这将在本地启动一个服务器，通常地址为 `http://localhost:5173`。
+
+3.  **为移动/远程调试运行：**
+    要从同一网络上的其他设备（如手机）访问开发服务器，请使用：
+    ```sh
+    npm run devh
+    ```
+    这将把服务器暴露给您的本地网络（例如 `http://192.168.X.X:5173`）。
+
+#### 构建生产版本 (部署到ESP32)
+
+1.  **构建项目：**
+    ```sh
+    npm run build
+    ```
+    此命令将编译和打包应用程序到 `dist/` 目录，生成 `index.html` 和 `ws.sharedworker.js`。
+
+2.  **压缩输出文件：**
+    进入 `dist/` 目录并使用gzip压缩构建产物。
+    ```sh
+    cd dist
+    gzip *
+    ```
+    这将生成 `index.html.gz` 和 `ws.sharedworker.js.gz`。
+
+3.  **部署到ESP32：**
+    将压缩后的 `.gz` 文件复制到您的 `wireless-esp32-tools` ESP-IDF项目中的相应目录（例如 `project_components/html/`），然后将固件刷入您的设备。
+
+## 许可证
+
+根据MIT许可证分发。更多信息请参见 `LICENCE.txt` 文件。

README.md

@@ -1,3 +1,87 @@
-# 允斯无线透传器的内嵌网页版上位机
+# Web UI for wireless-esp32-tools

+This is the web user interface for the [wireless-esp32-tools](https://github.com/kerms/wireless-esp32-tools) project.

+The `wireless-esp32-tools` project provides CMSIS-DAP compatible wireless debugging tools for various ESP chips, turning them into powerful wireless debug probes.
+
+## About This Web Interface
+
+This web application provides a user-friendly dashboard to manage and interact with your `wireless-esp32-tools` device. It is built with Vue.js 3, Vite, and Element Plus, and is designed to be hosted directly on the ESP32.
+
+From this interface, you can build a customized dashboard to monitor and interact with your target device.
+
+### Key Features
+
+*   **Wi-Fi Configuration**: Easily configure Wi-Fi settings including station mode (STA) and access point mode (AP), with support for static/dynamic IP addressing and DNS settings.
+*   **Dynamic Widget Dashboard**: A fully flexible grid-based panel.
+*   **Real-time Data Visualization**: Includes a UART data viewer for monitoring serial communication from your target device.
+*   **Embedded-First Design**: Deploy in single .html file to reduce the number of http connection.
+*   **Designed to be usable on small screen**: Responsive layout that adapts to mobile devices and tablets, with touch-friendly controls and optimized UI elements for small displays.
+
+## Screenshots
+

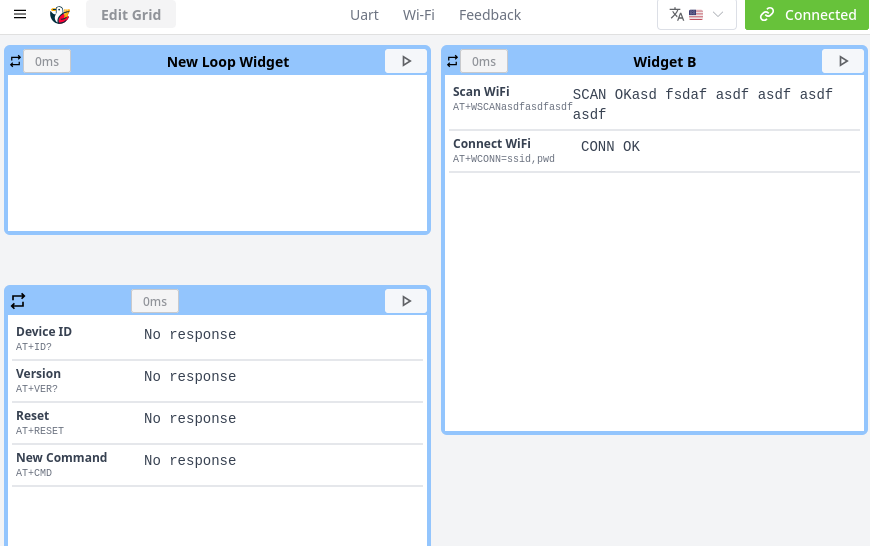

+**Widget Panel**
+![Widget Panel](assets/widgetPannel.png)
+
+**UART Data Viewer**
+![UART Data Viewer](assets/uart.png)
+
+## Getting Started
+
+### For End-Users
+
+1.  Connect your computer or mobile device to the Wi-Fi network hosted by the ESP32 running `wireless-esp32-tools`.
+2.  Open a web browser and navigate to the IP address of the ESP32 device (e.g., `http://dap.local` or `http://192.168.1.1`(when connected to the AP)).
+
+### For Developers (of this Web UI)
+
+Follow these steps to set up the project for local development or to build it for deployment.
+
+#### Prerequisites
+
+*   [Node.js](https://nodejs.org/) (v16 or later)
+*   [npm](https://www.npmjs.com/)
+
+#### Local Development
+
+1.  **Install dependencies:**
+    ```sh
+    npm install
+    ```
+2.  **Run the development server:**
+    ```sh
+    npm run dev
+    ```
+    This will start a local server, typically at `http://localhost:5173`.
+
+3.  **Run for mobile/remote debugging:**
+    To access the development server from other devices on the same network (like a mobile phone), use:
+    ```sh
+    npm run devh
+    ```
+    This will expose the server to your local network (e.g., `http://192.168.X.X:5173`).
+
+#### Building for Production (Deploying to ESP32)
+
+1.  **Build the project:**
+    ```sh
+    npm run build
+    ```
+    This command compiles and bundles the application into the `dist/` directory, creating `index.html` and `ws.sharedworker.js`.
+
+    There is some bugs on Firefox or Vue3 when embbeding sharedWorker in single file mode. So at the time, the sharedWorker are build separately.
+
+2.  **Compress the output files:**
+    Navigate into the `dist/` directory and compress the build artifacts using gzip.
+    ```sh
+    cd dist
+    gzip *
+    ```
+    This will generate `index.html.gz` and `ws.sharedworker.js.gz`.
+
+3.  **Deploy to ESP32:**
+    Copy the compressed `.gz` files to the appropriate directory in your `wireless-esp32-tools` ESP-IDF project (e.g., `project_components/html/`) and flash the firmware to your device.
+
+## License
+
+Distributed under the MIT License. See `LICENCE.txt` for more information.

index.html

@@ -4,7 +4,7 @@
     <meta charset="UTF-8">
     <link id="favicon" rel="icon" href="data:,">
     <meta name="viewport" content="width=device-width, initial-scale=1.0">
-    <title>Vite App</title>
+    <title>yunsi.studio project</title>
   </head>
   <body>
     <div id="app"></div>

package.json

@@ -4,24 +4,29 @@
   "private": true,
   "type": "module",
   "scripts": {
-    "dev": ". ./set_env.sh && vite",
-    "devh": ". ./set_env.sh && vite --host",
-    "build": "run-p type-check \"build-only {@}\" --",
-    "preview": ". ./set_env.sh && vite preview",
-    "build-only": ". ./set_env.sh && vite build",
-    "build:dev": ". ./set_env.sh && vite build --mode development",
+    "dev": "node scripts/gen-env.mjs",
+    "devh": "node scripts/gen-env.mjs --host",
+    "build": "run-p type-check build-only --",
+    "preview": "node scripts/gen-env.mjs preview",
+    "previewh": "node scripts/gen-env.mjs preview --host",
+    "build-only": "node scripts/gen-env.mjs build",
+    "build:dev": "NODE_ENV=development node scripts/gen-env.mjs build",
     "type-check": "vue-tsc --build --force",
-    "lint": "eslint . --ext .vue,.js,.jsx,.cjs,.mjs,.ts,.tsx,.cts,.mts --fix --ignore-path .gitignore",
+    "lint": "eslint . --ext .vue,.js,.jsx,.ts,.tsx --fix --ignore-path .gitignore",
     "format": "prettier --write src/"
   },
   "dependencies": {
     "@vueuse/core": "^10.9.0",
-    "element-plus": "^2.7.3",
+    "ansi_up": "^6.0.2",
+    "element-plus": "^2.8.1",
     "mitt": "^3.0.1",
     "pinia": "^2.1.7",
-    "vue": "^3.4.21",
+    "vue": "^3.5.16",
+    "vue-draggable-plus": "^0.4.1",
+    "vue-grid-layout-v3": "^3.1.2",
     "vue-i18n": "^9.10.2",
-    "vue-router": "^4.3.0"
+    "vue-router": "^4.3.0",
+    "vuetify": "^3.6.5"
   },
   "devDependencies": {
     "@rushstack/eslint-patch": "^1.3.3",
@@ -42,10 +47,11 @@
     "typescript": "~5.4.0",
     "unplugin-auto-import": "^0.17.5",
     "unplugin-vue-components": "^0.26.0",
-    "vite": "^5.1.6",
+    "vite": "^5.3.3",
     "vite-plugin-css-injected-by-js": "^3.5.0",
     "vite-plugin-html": "^3.2.2",
-    "vite-plugin-singlefile": "^2.0.1",
+    "vite-plugin-singlefile": "^2.0.2",
+    "vite-plugin-vuetify": "^2.0.3",
     "vite-svg-loader": "^5.1.0",
     "vue-tsc": "^2.0.6"
   }

scripts/gen-env.mjs

@@ -0,0 +1,25 @@
+import { execSync, spawn } from 'node:child_process';
+import { fileURLToPath } from 'node:url';
+import { dirname, resolve } from 'node:path';
+
+const gitTag = execSync('git describe --tags')
+    .toString().trim().split('-').slice(0, 2).join('-');
+
+const lastCommit = execSync('git log -1 --format=%cd')
+    .toString().trim();
+
+// run whatever came after “npm run dev …”
+const argsFromNpm = process.argv.slice(2);        // e.g. ["--host"]
+
+spawn(
+    process.platform === 'win32' ? 'npx.cmd' : 'npx',
+    ['vite', ...argsFromNpm],
+    {
+        stdio: 'inherit',
+        env: {
+            ...process.env,
+            VITE_APP_GIT_TAG: gitTag,
+            VITE_APP_LAST_COMMIT: lastCommit
+        }
+    }
+).on('exit', code => process.exit(code));

set_env.sh

@@ -1,3 +1,7 @@
-#!/bin/bash
-export VITE_APP_GIT_TAG=$(git describe --tags | cut -d'-' -f1,2)
-export VITE_APP_LAST_COMMIT=$(git log -1 --format=%cd)
+#!/usr/bin/env bash
+
+VITE_APP_GIT_TAG=$(git describe --tags | cut -d'-' -f1,2)
+VITE_APP_LAST_COMMIT=$(git log -1 --format=%cd)
+
+export VITE_APP_GIT_TAG
+export VITE_APP_LAST_COMMIT

src/App.vue

@@ -1,64 +1,94 @@
 <script setup lang="ts">
-import {useWsStore} from "@/stores/websocket";
-import type {IWebsocketService} from "@/composables/websocket/websocketService";
-import {getWebsocketService} from "@/composables/websocket/websocketService";
-import {onMounted, onUnmounted} from "vue";
-import {changeFavicon} from "@/composables/importFavicon";
-import {logHelloMessage} from "@/composables/logConsoleMsg";
-import NavBar from "@/views/navigation/NavBar.vue";
-import type {ControlMsg, ServerMsg} from "@/api";
-import {ControlEvent, ControlMsgType} from "@/api";
-import {routeCtrlMsg, routeModuleServerMsg} from "@/router/msgRouter";
-import {globalNotify} from "@/composables/notification";
-import {isDevMode} from "@/composables/buildMode";
+import { useWsStore } from '@/stores/websocket'
+import type { IWebsocketService } from '@/composables/websocket/websocketService'
+import { getWebsocketService } from '@/composables/websocket/websocketService'
+import { onMounted, onUnmounted } from 'vue'
+import { changeFavicon } from '@/composables/importFavicon'
+import { logHelloMessage } from '@/composables/logConsoleMsg'
+import NavBar from '@/views/navigation/NavBar.vue'
+import type { ControlMsg, ServerMsg } from '@/api'
+import { ControlEvent, ControlMsgType } from '@/api'
+import { routeCtrlMsg, routeModuleServerMsg } from '@/router/msgRouter'
+import { globalNotify } from '@/composables/notification'
+import {
+  getTrialDate,
+  getTrialMsg,
+  isDevMode,
+  isOTAEnabled,
+  isTrialMode
+} from '@/composables/buildMode'
+import { useSystemModule } from '@/composables/useSystemModule'
+import { useDataFlowModule } from '@/composables/useDataFlowModule'
+import { useUpdateModule } from '@/composables/useUpdateModule'
+import { ElMessageBox } from 'element-plus'
+import { translate } from '@/locales'

-const wsState = useWsStore();
+const wsState = useWsStore()

 const onClientCtrl = (msg: ControlMsg) => {
   if (isDevMode()) {
-    console.log("App.vue:", msg);
+    console.log('App.vue:', msg)
   }
   if (msg.type === ControlMsgType.WS_EVENT) {
-    wsState.$patch({state: msg.data as ControlEvent})
-    routeCtrlMsg(msg);
+    wsState.$patch({ state: msg.data as ControlEvent })
+    routeCtrlMsg(msg)
     if (msg.data === ControlEvent.CONNECTED) {
-      globalNotify("调试器已连接", "success");
+      globalNotify(translate('common.debuggerConnected'), 'success')
     }
   }
-};
+}

 const onServerMsg = (msg: ServerMsg) => {
   if (isDevMode()) {
-    console.log("App.vue:", msg);
+    console.log('App.vue:', msg)
   }
-  routeModuleServerMsg(msg);
-};
+  routeModuleServerMsg(msg)
+}

-let websocketService: IWebsocketService;
+let websocketService: IWebsocketService
 onMounted(() => {
-
-  logHelloMessage();
-  let host = "";
+  logHelloMessage()
+  let host: string
   if (isDevMode()) {
-    host = import.meta.env.VITE_DEVICE_HOST_NAME || "dap.local";
+    host = import.meta.env.VITE_DEVICE_HOST_NAME || 'dap.local'
   } else {
     host = window.location.host
   }
-  websocketService = getWebsocketService();
-  websocketService.init(host, onServerMsg, onClientCtrl);
-  changeFavicon();
-});
+  if (import.meta.env.VITE_DISABLE_CONNECTION !== 'true') {
+    websocketService = getWebsocketService()
+    websocketService.init(host, onServerMsg, onClientCtrl)
+    websocketService.getSocketStatus()
+  }
+  changeFavicon()

-onUnmounted(() => {
+  useSystemModule()
+  useDataFlowModule()

-});
+  if (isOTAEnabled()) {
+    useUpdateModule()
+  }
+
+  if (isTrialMode()) {
+    ElMessageBox.alert(getTrialMsg(), getTrialDate(), {
+      confirmButtonText: translate('common.ok')
+    })
+  }
+})
+
+onUnmounted(() => {})
 </script>

 <template>
-  <div class="flex flex-col h-screen">
+  <div class="flex flex-col wt-h-100">
     <header>
-      <nav-bar/>
+      <nav-bar />
     </header>
-    <RouterView/>
+    <RouterView />
   </div>
 </template>
+
+<style>
+.wt-h-100 {
+  height: 100vh;
+}
+</style>

src/api/apiDataFlow.ts

@@ -0,0 +1,104 @@
+import {type ApiJsonMsg} from '@/api'
+import * as api from "@/api/index";
+
+export enum WtDataFlowType {
+    NONE = 0,
+    SOCKET = 0x10,
+    WS_SERVER = 0x11,
+    WS_CLIENT,
+    WSS_SERVER,
+    WSS_CLIENT,
+    TCP_SERVER,
+    TCP_CLIENT,
+    TCP_TLS_SERVER,
+    TCP_TLS_CLIENT,
+    UDP_SERVER,
+    UDP_CLIENT,
+    PERIPHERAL = 0x80,
+    GPIO = 0x81,
+    UART = 0x82,
+    I2C,
+    I3C,
+    SPI,
+    I2S,
+    CAN,
+    RMT,
+    USB,
+}
+
+export enum WtDataFlowCmd {
+    UNKNOWN              = 0,
+    GET_INS_LIST         = 1,
+    GET_CUR_INS          = 2,
+    GET_CUR_ATTACH_LIST  = 3,
+    GET_ATTACH_LIST      = 4,
+    ATTACH               = 5,
+    ATTACH_CUR_TO_RECVER = 6,
+    ATTACH_CUR_TO_SENDER = 7,
+    DETACH_SINGLE        = 8,
+    DETACH_CUR_FROM      = 9,
+    SET_DATA_TYPE        = 10,
+}
+
+export interface IWtDataFlowJsonMsg extends ApiJsonMsg {
+    data_type?: 3 | 4,
+    ins_idx?: number,
+}
+
+export interface IPeriphInfo {
+    periph_num: number;
+}
+
+export interface ISocketInfo {
+    foreign_port: number;
+    foreign_ip: string;
+    local_port: number;
+}
+
+export interface InstanceInfo {
+    ins_idx: number,
+    mod_idx: number,
+    mod_type: number,
+    port_info: ISocketInfo | IPeriphInfo;
+}
+
+export interface IInstanceList extends ApiJsonMsg {
+    instances: InstanceInfo[],
+}
+
+export interface AttachInfo {
+    attach_idx: number,
+    s_ins_idx: number,
+    r_ins_idx: number,
+    data_type: 3 | 4,
+}
+
+export interface IAttachList extends ApiJsonMsg {
+    attaches: AttachInfo[],
+}
+
+export function wt_data_flow_get_instance_list() {
+    const jsonMsg: IWtDataFlowJsonMsg = {
+        cmd: WtDataFlowCmd.GET_INS_LIST,
+        module: api.WtModuleID.DATA_FLOW,
+    }
+    api.sendJsonMsg(jsonMsg);
+}
+
+export function wt_data_flow_attach_cur_to_sender(instance_index: number) {
+    const jsonMsg: IWtDataFlowJsonMsg = {
+        cmd: WtDataFlowCmd.ATTACH_CUR_TO_SENDER,
+        module: api.WtModuleID.DATA_FLOW,
+        data_type: 3,
+        ins_idx: instance_index,
+    }
+    api.sendJsonMsg(jsonMsg);
+}
+
+export function wt_data_flow_get_attach_list() {
+    const jsonMsg: IWtDataFlowJsonMsg = {
+        cmd: WtDataFlowCmd.GET_ATTACH_LIST,
+        module: api.WtModuleID.DATA_FLOW,
+    }
+    api.sendJsonMsg(jsonMsg);
+}

src/api/apiOTA.ts

@@ -0,0 +1,61 @@
+import {type ApiJsonMsg, sendJsonMsg, WtModuleID} from '@/api'
+
+export enum WtOTACmd {
+    WT_OTA_GET_UPDATE_INFO      = 1, /* total_size, ver */
+    WT_OTA_DO_UPDATE            = 2, /* returns OK, chunk of remaining bytes and total length -> wt_event_manager */
+    WT_OTA_GET_PROGRESS         = 3, /* returns chunk of remaining bytes and total length */
+    WT_OTA_DO_URL_UPDATE        = 4, /* force update { url: "https://" } */
+}
+
+export enum WtOTAProgressStatus {
+    OK = "OK",
+    IDLE = "IDLE",
+    IN_PROGRESS = "IN_PROGRESS",
+    FAILED = "FAILED",
+}
+
+export interface IOTAProgress extends ApiJsonMsg {
+    progress: number;
+    total_size: number;
+    status: string;
+}
+
+export interface IOTAFmInfo extends ApiJsonMsg {
+    fm_size: number;
+    fm_ver: string;
+    upd_date: string;
+    upd_note: string;
+}
+
+export function wt_ota_get_update_info() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.OTA,
+        cmd: WtOTACmd.WT_OTA_GET_UPDATE_INFO,
+    };
+    sendJsonMsg(msg);
+}
+
+export function wt_ota_do_update() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.OTA,
+        cmd: WtOTACmd.WT_OTA_DO_UPDATE,
+    };
+    sendJsonMsg(msg);
+}
+
+export function wt_ota_get_progress() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.OTA,
+        cmd: WtOTACmd.WT_OTA_GET_PROGRESS,
+    };
+    sendJsonMsg(msg);
+}
+
+export function wt_ota_do_url_update(url: string) {
+    const msg: ApiJsonMsg & {url: string} = {
+        module: WtModuleID.OTA,
+        cmd: WtOTACmd.WT_OTA_DO_URL_UPDATE,
+        url: url,
+    };
+    sendJsonMsg(msg);
+}

src/api/apiSystem.ts

@@ -0,0 +1,45 @@
+import {type ApiJsonMsg, sendJsonMsg, WtModuleID} from '@/api'
+
+export enum WtSytemCmd {
+    WT_SYS_GET_FM_INFO      = 1,
+    WT_SYS_REBOOT           = 2,
+    WT_SYS_GET_SYS_INFO     = 3,
+}
+
+export interface ISysFmInfo extends ApiJsonMsg {
+    fm_ver: string;
+    upd_date: string;
+}
+
+export interface ISysHwInfo extends ApiJsonMsg {
+    hw_ver: string;
+    mf_date: string;
+}
+
+export interface ISysInfo {
+    sn: string;
+}
+
+export function wt_sys_get_fm_info() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.SYSTEM,
+        cmd: WtSytemCmd.WT_SYS_GET_FM_INFO,
+    };
+    sendJsonMsg(msg);
+}
+
+export function wt_sys_reboot() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.SYSTEM,
+        cmd: WtSytemCmd.WT_SYS_REBOOT,
+    };
+    sendJsonMsg(msg);
+}
+
+export function wt_sys_get_sys_info() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.SYSTEM,
+        cmd: WtSytemCmd.WT_SYS_GET_SYS_INFO,
+    };
+    sendJsonMsg(msg);
+}

src/api/apiUart.ts

@@ -0,0 +1,110 @@
+import type {ApiBinaryMsg} from "@/api/binDataDef";
+import {WtDataType} from "@/api/binDataDef";
+import {type ApiJsonMsg, sendBinMsg, sendJsonMsg, WtModuleID} from "@/api/index";
+
+export enum WtUartCmd {
+    UNKNOWN = 0,
+
+    /* UART PERIPHERAL */
+    GET_AVAILABLE_NUMS = 1,
+    GET_BAUD = 4,
+    SET_BAUD = 5,
+    GET_CONFIG = 6, /* data bits, parity and stop bits */
+    SET_CONFIG = 7,
+    GET_FLOW_CTRL, /* flow control function RTS/CTS*/
+    SET_FLOW_CTRL,
+    GET_PINS_NUM, /* not implemented change pinout function */
+    SET_PINS_NUM, /* not implemented */
+    GET_MODE, /* not implemented UART/RS485/IrDA */
+    SET_MODE, /* not implemented UART/RS485/IrDA */
+
+    GET_STATUS = 20, /* is uart enabled and other information */
+    SET_STATUS,      /* set specific uart port disable */
+    GET_DATA_TYPE = 22, // 0x03 or 0x04
+    SET_DATA_TYPE = 23, // 0x03 or 0x04
+
+    GET_DEFAULT_NUM = 24,
+}
+
+enum ANSI_ESCAPE_CODE {
+    REFRESH_WINDOW = '\x1b[7t',
+    CLEAR_WINDOW = '\x1b[2J'
+}
+
+export interface IUartConfig {
+    data_bits: 5 | 6 | 7 | 8;
+    parity   : 0 | 1 | 2;
+    stop_bits: 1 | 15 | 2;
+}
+
+export interface IUartMsgConfig extends ApiJsonMsg, IUartConfig {
+    sub_mod: number;
+}
+
+export interface IUartMsgBaud extends ApiJsonMsg {
+    sub_mod: number;
+    baud: number;
+}
+
+export interface IUartMsgNum extends ApiJsonMsg {
+    num: number;
+}
+
+export function uart_send_msg(payload: Uint8Array, sub_mod: number) {
+    /* hard code uart num for now */
+    const msg: ApiBinaryMsg = {
+        sub_mod: sub_mod,
+        data_type: WtDataType.RAW,
+        module: WtModuleID.UART,
+        payload: payload,
+    }
+    sendBinMsg(msg);
+}
+
+export function uart_get_baud(uart_num: number) {
+    const cmd = {
+        cmd: WtUartCmd.GET_BAUD,
+        module: WtModuleID.UART,
+        sub_mod: uart_num,
+    }
+    sendJsonMsg(cmd);
+}
+
+export function uart_set_baud(baud: number, uart_num: number) {
+    const cmd: IUartMsgBaud = {
+        cmd: WtUartCmd.SET_BAUD,
+        module: WtModuleID.UART,
+        baud: baud,
+        sub_mod: uart_num,
+    }
+    sendJsonMsg(cmd);
+}
+
+export function uart_get_config(uart_num: number) {
+    const cmd = {
+        cmd: WtUartCmd.GET_CONFIG,
+        module: WtModuleID.UART,
+        sub_mod: uart_num,
+    }
+    sendJsonMsg(cmd);
+}
+
+export function uart_set_config(uart_config: IUartConfig, uart_num: number) {
+    const cmd: IUartMsgConfig = {
+        cmd: WtUartCmd.SET_CONFIG,
+        module: WtModuleID.UART,
+        sub_mod: uart_num,
+        data_bits: uart_config.data_bits,
+        parity: uart_config.parity,
+        stop_bits: uart_config.stop_bits,
+    }
+    sendJsonMsg(cmd);
+}
+
+export function uart_get_default_num() {
+    const cmd = {
+        cmd: WtUartCmd.GET_DEFAULT_NUM,
+        module: WtModuleID.UART,
+    }
+    sendJsonMsg(cmd);
+}

src/api/apiWifi.ts

@@ -2,20 +2,49 @@ import {type ApiJsonMsg, sendJsonMsg, WtModuleID} from '@/api'

 export enum WifiCmd {
     UNKNOWN = 0,
-    WIFI_API_JSON_STA_GET_AP_INFO,
-    WIFI_API_JSON_CONNECT,
-    WIFI_API_JSON_GET_SCAN,
-    WIFI_API_JSON_DISCONNECT,
-    WIFI_API_JSON_AP_GET_INFO,
+    WIFI_API_JSON_STA_GET_AP_INFO = 1,
+    WIFI_API_JSON_CONNECT         = 2,
+    WIFI_API_JSON_GET_SCAN        = 3,
+    WIFI_API_JSON_DISCONNECT      = 4,
+    WIFI_API_JSON_AP_GET_INFO     = 5,
+    WIFI_API_JSON_GET_MODE        = 6,
+    WIFI_API_JSON_SET_MODE        = 7,
+    WIFI_API_JSON_AP_SET_CRED     = 8,
+    WIFI_API_JSON_STA_GET_STATIC_INFO =  9,
+    WIFI_API_JSON_STA_SET_STATIC_CONF = 10,
 }

-interface WifiMsgOut extends ApiJsonMsg {
+export enum WifiMode {
+    /* permanent */
+    WIFI_AP_AUTO_STA_ON = 0,
+
+    WIFI_AP_STA_OFF     = 4, /* 100 */
+    WIFI_AP_OFF_STA_ON  = 5, /* 101 */
+    WIFI_AP_ON_STA_OFF  = 6, /* 110 */
+    WIFI_AP_STA_ON      = 7, /* 111 */
+
+    /* temporary */
+    WIFI_AP_STOP        = 8,
+    WIFI_AP_START       = 9,
+    WIFI_STA_STOP       = 10,
+    WIFI_STA_START      = 11,
+}
+
+export enum WifiStatus {
+    WIFI_MODE_NULL = 0,  /**< null mode */
+    WIFI_MODE_STA,   /**< WiFi station mode */
+    WIFI_MODE_AP,    /**< WiFi soft-AP mode */
+    WIFI_MODE_APSTA, /**< WiFi station + soft-AP mode */
+}
+
+export interface WiFiCredential extends ApiJsonMsg {
     ssid?: string;
     password?: string;
+    err?: string;
 }

 export function wifi_get_scan_list() {
-    const msg : WifiMsgOut = {
+    const msg : WiFiCredential = {
         module: WtModuleID.WIFI,
         cmd: WifiCmd.WIFI_API_JSON_GET_SCAN,
     }
@@ -23,7 +52,7 @@ export function wifi_get_scan_list() {
 }

 export function wifi_sta_get_ap_info() {
-    const msg : WifiMsgOut = {
+    const msg : WiFiCredential = {
         module: WtModuleID.WIFI,
         cmd: WifiCmd.WIFI_API_JSON_STA_GET_AP_INFO,
     }
@@ -31,7 +60,7 @@ export function wifi_sta_get_ap_info() {
 }

 export function wifi_ap_get_info() {
-    const msg : WifiMsgOut = {
+    const msg : WiFiCredential = {
         module: WtModuleID.WIFI,
         cmd: WifiCmd.WIFI_API_JSON_AP_GET_INFO,
     }
@@ -39,7 +68,7 @@ export function wifi_ap_get_info() {
 }

 export function wifi_connect_to(ssid: string, password: string) {
-    const msg: WifiMsgOut = {
+    const msg: WiFiCredential = {
         module: WtModuleID.WIFI,
         cmd: WifiCmd.WIFI_API_JSON_CONNECT,
         ssid: ssid,
@@ -49,6 +78,19 @@ export function wifi_connect_to(ssid: string, password: string) {
 }

 export interface WifiInfo extends ApiJsonMsg {
+    rssi: number;
+    ssid: string;
+    password: string;
+    gateway: string;
+    ip: string;
+    mac: string;
+    netmask: string;
+    dns_main: string;
+    dns_backup: string;
+    wifiLogo?: string;
+}
+
+export interface WifiScanInfo extends ApiJsonMsg {
     rssi: number;
     ssid: string;
     gateway: string;
@@ -59,5 +101,86 @@ export interface WifiInfo extends ApiJsonMsg {
 }

 export interface WifiList extends ApiJsonMsg {
-    scan_list: Array<WifiInfo>;
+    scan_list: Array<WifiScanInfo>;
 }
+
+export interface IWifiMode extends ApiJsonMsg {
+    mode?: WifiMode;
+    status?: WifiStatus;
+    ap_on_delay?: number;
+    ap_off_delay?: number;
+    err?: string;
+}
+
+export function wifi_set_mode(req_mode: WifiMode, ap_on_delay = -1, ap_off_delay = -1) {
+    let msg: IWifiMode;
+    if (req_mode === WifiMode.WIFI_AP_AUTO_STA_ON && ap_on_delay !== -1 && ap_off_delay !== -1) {
+        msg = {
+            module: WtModuleID.WIFI,
+            cmd: WifiCmd.WIFI_API_JSON_SET_MODE,
+            mode: req_mode,
+            ap_on_delay: ap_on_delay,
+            ap_off_delay: ap_off_delay,
+        };
+    } else {
+        msg = {
+            module: WtModuleID.WIFI,
+            cmd: WifiCmd.WIFI_API_JSON_SET_MODE,
+            mode: req_mode,
+        };
+    }
+    sendJsonMsg(msg);
+}
+
+export function wifi_get_mode() {
+    const msg: IWifiMode = {
+        module: WtModuleID.WIFI,
+        cmd: WifiCmd.WIFI_API_JSON_GET_MODE,
+    };
+
+    sendJsonMsg(msg);
+}
+
+export function wifi_ap_set_credential(ssid: string, password: string) {
+    const msg : WiFiCredential = {
+        module: WtModuleID.WIFI,
+        cmd: WifiCmd.WIFI_API_JSON_AP_SET_CRED,
+        ssid: ssid,
+        password: password,
+    }
+    sendJsonMsg(msg);
+}
+
+export interface IWifiStaStaticInfo {
+    static_ip_en: number;
+    static_dns_en: number;
+    ip: string;
+    gateway: string;
+    netmask: string;
+    dns_main: string;
+    dns_backup: string;
+}
+export function wifi_sta_get_static_info() {
+    const msg: ApiJsonMsg = {
+        module: WtModuleID.WIFI,
+        cmd: WifiCmd.WIFI_API_JSON_STA_GET_STATIC_INFO,
+    }
+    sendJsonMsg(msg);
+}
+
+export function wifi_sta_set_static_conf(static_info: IWifiStaStaticInfo) {
+    const msg: IWifiStaStaticInfo & ApiJsonMsg = {
+        module: WtModuleID.WIFI,
+        cmd: WifiCmd.WIFI_API_JSON_STA_SET_STATIC_CONF,
+        static_dns_en: static_info.static_dns_en,
+        static_ip_en: static_info.static_ip_en,
+        ip: static_info.ip,
+        gateway: static_info.gateway,
+        netmask: static_info.netmask,
+        dns_main: static_info.dns_main,
+        dns_backup: static_info.dns_backup,
+    }
+    sendJsonMsg(msg);
+}
+
+

src/api/index.ts

@@ -31,9 +31,11 @@ export interface ServerMsg {
 }

 export enum WtModuleID {
+    SYSTEM = 0,
     WIFI = 1,
     DATA_FLOW = 2,
     UART = 4,
+    OTA = 5,
 }

 export function sendJsonMsg(apiJsonMsg: ApiJsonMsg) {

src/assets/icon/arrow_drop_down.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 -960 960 960" fill="#5f6368"><path d="M480-360 280-560h400L480-360Z"/></svg>

src/assets/icon/arrow_drop_up.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 -960 960 960" fill="#5f6368"><path d="m280-400 200-200 200 200H280Z"/></svg>

src/assets/icon/close.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="m256-200-56-56 224-224-224-224 56-56 224 224 224-224 56 56-224 224 224 224-56 56-224-224-224 224Z"/></svg>

src/assets/icon/help.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 -960 960 960" fill="#5f6368"><path d="M478-240q21 0 35.5-14.5T528-290q0-21-14.5-35.5T478-340q-21 0-35.5 14.5T428-290q0 21 14.5 35.5T478-240Zm-36-154h74q0-33 7.5-52t42.5-52q26-26 41-49.5t15-56.5q0-56-41-86t-97-30q-57 0-92.5 30T342-618l66 26q5-18 22.5-39t53.5-21q32 0 48 17.5t16 38.5q0 20-12 37.5T506-526q-44 39-54 59t-10 73Zm38 314q-83 0-156-31.5T197-197q-54-54-85.5-127T80-480q0-83 31.5-156T197-763q54-54 127-85.5T480-880q83 0 156 31.5T763-763q54 54 85.5 127T880-480q0 83-31.5 156T763-197q-54 54-127 85.5T480-80Zm0-80q134 0 227-93t93-227q0-134-93-227t-227-93q-134 0-227 93t-93 227q0 134 93 227t227 93Zm0-320Z"/></svg>

src/assets/icon/lock.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="M240-80q-33 0-56.5-23.5T160-160v-400q0-33 23.5-56.5T240-640h40v-80q0-83 58.5-141.5T480-920q83 0 141.5 58.5T680-720v80h40q33 0 56.5 23.5T800-560v400q0 33-23.5 56.5T720-80H240Zm0-80h480v-400H240v400Zm240-120q33 0 56.5-23.5T560-360q0-33-23.5-56.5T480-440q-33 0-56.5 23.5T400-360q0 33 23.5 56.5T480-280ZM360-640h240v-80q0-50-35-85t-85-35q-50 0-85 35t-35 85v80ZM240-160v-400 400Z"/></svg>

src/assets/icon/lock_open.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="M240-160h480v-400H240v400Zm240-120q33 0 56.5-23.5T560-360q0-33-23.5-56.5T480-440q-33 0-56.5 23.5T400-360q0 33 23.5 56.5T480-280ZM240-160v-400 400Zm0 80q-33 0-56.5-23.5T160-160v-400q0-33 23.5-56.5T240-640h280v-80q0-83 58.5-141.5T720-920q83 0 141.5 58.5T920-720h-80q0-50-35-85t-85-35q-50 0-85 35t-35 85v80h120q33 0 56.5 23.5T800-560v400q0 33-23.5 56.5T720-80H240Z"/></svg>

src/assets/icon/play.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="M320-200v-560l440 280-440 280Zm80-280Zm0 134 210-134-210-134v268Z"/></svg>

src/assets/icon/repeat.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="M280-80 120-240l160-160 56 58-62 62h406v-160h80v240H274l62 62-56 58Zm-80-440v-240h486l-62-62 56-58 160 160-160 160-56-58 62-62H280v160h-80Z"/></svg>

src/assets/icon/text-data.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" height="24px" viewBox="0 -960 960 960" width="24px" fill="#1f1f1f"><path d="M240-320h320v-80H240v80Zm400 0h80v-80h-80v80ZM240-480h80v-80h-80v80Zm160 0h320v-80H400v80ZM160-160q-33 0-56.5-23.5T80-240v-480q0-33 23.5-56.5T160-800h640q33 0 56.5 23.5T880-720v480q0 33-23.5 56.5T800-160H160Zm0-80h640v-480H160v480Zm0 0v-480 480Z"/></svg>

src/assets/icon/translate.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24"><path d="M0 0h24v24H0z" fill="none"/><path d="M12.87 15.07l-2.54-2.51.03-.03c1.74-1.94 2.98-4.17 3.71-6.53H17V4h-7V2H8v2H1v1.99h11.17C11.5 7.92 10.44 9.75 9 11.35 8.07 10.32 7.3 9.19 6.69 8h-2c.73 1.63 1.73 3.17 2.98 4.56l-5.09 5.02L4 19l5-5 3.11 3.11.76-2.04zM18.5 10h-2L12 22h2l1.12-3h4.75L21 22h2l-4.5-12zm-2.62 7l1.62-4.33L19.12 17h-3.24z"/></svg>

src/assets/icon/trash.svg

@@ -0,0 +1 @@
+<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 -960 960 960" fill="#5f6368"><path d="M280-120q-33 0-56.5-23.5T200-200v-520h-40v-80h200v-40h240v40h200v80h-40v520q0 33-23.5 56.5T680-120H280Zm400-600H280v520h400v-520ZM360-280h80v-360h-80v360Zm160 0h80v-360h-80v360ZM280-720v520-520Z"/></svg>

src/composables/broadcastChannelDef.ts

@@ -1,4 +1,17 @@
-export const toServer = new BroadcastChannel("toServer");
-export const toClient = new BroadcastChannel("toClient");
-export const toWebsocketCtrl = new BroadcastChannel("toWebsocketCtrl");
-export const toClientCtrl = new BroadcastChannel("toClientCtrl");
+// Define a fallback mock class only if BroadcastChannel is undefined
+const BC: typeof BroadcastChannel = typeof BroadcastChannel !== 'undefined'
+    ? BroadcastChannel
+    : class {
+        constructor(name: string) {
+            // no-op
+        }
+        postMessage(_: any) {}
+        close() {}
+        addEventListener(_: string, __: any) {}
+        removeEventListener(_: string, __: any) {}
+    } as unknown as typeof BroadcastChannel;
+
+export const toServer = new BC("toServer");
+export const toClient = new BC("toClient");
+export const toWebsocketCtrl = new BC("toWebsocketCtrl");
+export const toClientCtrl = new BC("toClientCtrl");

src/composables/buildMode.ts

@@ -1,3 +1,19 @@
 export function isDevMode() {
     return import.meta.env.VITE_APP_MODE === 'dev';
 }
+
+export function isOTAEnabled() {
+    return import.meta.env.VITE_ENABLE_OTA === 'true' || false;
+}
+
+export function isTrialMode() {
+    return import.meta.env.VITE_TRIAL_MODE === "true" || false;
+}
+
+export function getTrialDate() {
+    return import.meta.env.VITE_TRIAL_DATE || "1970-01-01";
+}
+
+export function getTrialMsg() {
+    return import.meta.env.VITE_TRIAL_MSG || "感谢您试用允斯开放固件,若您喜欢,欢迎关注我的B站或者加入允斯群,新项目和更新都会在第一时间在这里发布. 使用愉快^_^";
+}

src/composables/notification.ts

@@ -2,7 +2,7 @@ import {ElMessage, ElNotification} from "element-plus";

 type NotificationType = 'error'  | 'warning' | 'info' | 'success' ;

-export function globalNotify(msg: string, type: NotificationType) {
+export function globalNotify(msg: string, type: NotificationType = "info") {
     ElMessage({
         message: msg,
         grouping: true,
@@ -13,7 +13,7 @@ export function globalNotify(msg: string, type: NotificationType) {
     })
 }

-export function globalNotifyRightSide(msg: string, type: NotificationType) {
+export function globalNotifyRightSide(msg: string, type: NotificationType = "info") {
     ElNotification({
         message: msg,
         type: type,

src/composables/useCommandLoopManager.ts

@@ -0,0 +1,176 @@
+/**
+ * @file Composable for managing a task scheduler that executes callbacks at specified intervals.
+ * This scheduler avoids time drift and handles race conditions from stale timers.
+ */
+import { ref, onUnmounted } from 'vue'
+import { isDevMode } from './buildMode'
+
+interface ScheduledTask {
+  id: string
+  intervalMS: number
+  nextExecutionTime: number
+  executeCallback: () => Promise<void> | void
+  oneTime: boolean
+  version: number
+}
+
+// --- Module-level state (Singleton pattern) ---
+
+/** A sorted array of tasks to be executed. The task at index 0 is always the next one. */
+const scheduledTasks = ref<ScheduledTask[]>([])
+/** Tracks the latest version for a given task ID to prevent stale timers from running. */
+const taskVersions = new Map<string, number>()
+/** The ID of the currently active `setTimeout` instance. */
+let currentTimerId: number | null = null
+/** A reactive flag indicating if the scheduler has any pending tasks. */
+export const isSchedulerRunning = ref(false)
+/** A lock to prevent concurrent task executions */
+let isTaskExecuting = false
+
+export function useCommandLoopManager() {
+  // --- Private Scheduler Core ---
+
+  /**
+   * Executes the task at the front of the queue and reschedules it if it's recurring.
+   */
+  const executeNextTask = async () => {
+    // If a task is already running, wait before trying to execute the next one.
+    if (isTaskExecuting) {
+      if (isDevMode()) console.log('[Scheduler] Delaying task execution: another task is already running.')
+      // This is a simple back-off strategy.
+      currentTimerId = window.setTimeout(executeNextTask, 50)
+      return
+    }
+
+    if (scheduledTasks.value.length === 0) {
+      isSchedulerRunning.value = false
+      return
+    }
+
+    const taskToExecute = scheduledTasks.value.shift()!
+
+    // Stale check
+    const latestVersion = taskVersions.get(taskToExecute.id)
+    if (taskToExecute.version !== latestVersion) {
+      if (isDevMode()) console.log(`[Scheduler] Discarding stale task '${taskToExecute.id}' v${taskToExecute.version}.`)
+      scheduleNextExecution() // The queue has changed, so recalculate.
+      return
+    }
+
+    // Acquire the lock and execute the callback.
+    try {
+      isTaskExecuting = true
+      if (isDevMode()) console.log(`[Scheduler] Executing task '${taskToExecute.id}' v${taskToExecute.version}`)
+      await taskToExecute.executeCallback()
+    } catch (error) {
+      console.error(`[Scheduler] Error in task '${taskToExecute.id}':`, error)
+    } finally {
+      isTaskExecuting = false // ALWAYS release the lock
+    }
+
+    // If it's a recurring task, reschedule it.
+    if (!taskToExecute.oneTime) {
+      taskToExecute.nextExecutionTime = Date.now() + taskToExecute.intervalMS
+      // Re-insert the task and re-sort the queue.
+      scheduledTasks.value.push(taskToExecute)
+      scheduledTasks.value.sort((a, b) => a.nextExecutionTime - b.nextExecutionTime)
+    } else {
+      taskVersions.delete(taskToExecute.id)
+    }
+
+    // Set the timer for the next task in the queue.
+    scheduleNextExecution()
+  }
+
+  /**
+   * Sets a single master timer for the next task in the queue.
+   */
+  const scheduleNextExecution = () => {
+    if (currentTimerId !== null) {
+      window.clearTimeout(currentTimerId)
+      currentTimerId = null
+    }
+
+    if (scheduledTasks.value.length === 0) {
+      isSchedulerRunning.value = false
+      return
+    }
+
+    const nextTask = scheduledTasks.value[0]
+    const timeout = Math.max(0, nextTask.nextExecutionTime - Date.now())
+
+    currentTimerId = window.setTimeout(executeNextTask, timeout)
+    isSchedulerRunning.value = true
+
+    if (isDevMode()) {
+      console.log(`[Scheduler] Next task '${nextTask.id}' v${nextTask.version} scheduled in ${timeout}ms.`)
+    }
+  }
+
+  // --- Public API ---
+
+  /**
+   * Registers a new task, updates an existing one, or removes a task.
+   * This is the single entry point for all scheduling changes.
+   * @param id A unique identifier for the task.
+   * @param intervalMS The interval in milliseconds. Pass 0 or an invalid value to unregister.
+   * @param executeCallback The function to execute.
+   * @param oneTime If true, the task runs once and is not rescheduled.
+   */
+  const registerLoop = (
+    id: string,
+    intervalMS: number | string,
+    executeCallback: () => Promise<void> | void,
+    oneTime = false,
+  ) => {
+    scheduledTasks.value = scheduledTasks.value.filter((task) => task.id !== id)
+
+    const interval = typeof intervalMS === 'string' ? parseInt(intervalMS, 10) : intervalMS
+    if (!interval || isNaN(interval) || interval <= 0) {
+      if (isDevMode()) console.log(`[Scheduler] Unregistered task '${id}'.`)
+      taskVersions.delete(id)
+      scheduleNextExecution()
+      return
+    }
+
+    const newVersion = (taskVersions.get(id) || 0) + 1
+    taskVersions.set(id, newVersion)
+
+    const newTask: ScheduledTask = {
+      id,
+      intervalMS: interval,
+      nextExecutionTime: Date.now() + interval,
+      executeCallback,
+      oneTime,
+      version: newVersion,
+    }
+
+    scheduledTasks.value.push(newTask)
+    scheduledTasks.value.sort((a, b) => a.nextExecutionTime - b.nextExecutionTime)
+
+    if (isDevMode()) {
+      console.log(`[Scheduler] Registered task '${id}' v${newVersion} with interval ${interval}ms.`)
+    }
+
+    scheduleNextExecution()
+  }
+
+  /**
+   * A convenience helper to explicitly remove a task from the scheduler.
+   * @param id The identifier of the task to remove.
+   */
+  const unregisterLoop = (id: string) => {
+    registerLoop(id, -1, () => {})
+  }
+
+  // --- Lifecycle Hook ---
+
+  onUnmounted(() => {
+    if (currentTimerId !== null) window.clearTimeout(currentTimerId)
+    scheduledTasks.value = []
+    taskVersions.clear()
+    isSchedulerRunning.value = false
+  })
+
+  return { registerLoop, unregisterLoop, isRunning: isSchedulerRunning }
+}

src/composables/useDataFlowModule.ts

@@ -0,0 +1,44 @@
+import {registerModule} from "@/router/msgRouter";
+import {type ApiJsonMsg, type ControlMsg, ControlMsgType, WtModuleID} from "@/api";
+import {isDevMode} from "@/composables/buildMode";
+import {useDataFlowStore} from "@/stores/useDataFlowStore";
+import {type IInstanceList, WtDataFlowCmd} from "@/api/apiDataFlow";
+
+
+export function useDataFlowModule() {
+    const dfStore = useDataFlowStore()
+
+    function onClientCtrl(msg: ControlMsg) {
+        if (msg.type !== ControlMsgType.WS_EVENT) {
+            return
+        }
+    }
+
+    function onClientMsg(msg: ApiJsonMsg) {
+        switch (msg.cmd as WtDataFlowCmd) {
+            case WtDataFlowCmd.GET_INS_LIST: {
+                const insList = msg as IInstanceList;
+                dfStore.instanceList = insList.instances;
+                break;
+            }
+            case WtDataFlowCmd.GET_ATTACH_LIST: {
+                break;
+            }
+            default:
+                break;
+        }
+        if (isDevMode()) {
+            console.log(msg);
+        }
+    }
+
+    registerModule(WtModuleID.DATA_FLOW, {
+        ctrlCallback: onClientCtrl,
+        serverJsonMsgCallback: onClientMsg,
+        serverBinMsgCallback: () => {},
+    });
+}
+
+
+
+

src/composables/useSequentialUart.ts

@@ -0,0 +1,83 @@
+import { useDataViewerStore } from '@/stores/dataViewerStore'
+import { watch } from 'vue'
+import type { IDataBuf } from '@/stores/dataViewerStore'
+import { isDevMode } from '@/composables/buildMode'
+
+function decodeUtf8(u8Arr: Uint8Array) {
+  try {
+    const decoder = new TextDecoder()
+    const decodedText = decoder.decode(u8Arr) // Attempt to decode
+    return decodedText.replace(/\uFFFD/g, '') // Remove all <20> characters
+  } catch (error) {
+    return ''
+  }
+}
+
+export function useSequentialUart() {
+  const dataViewerStore = useDataViewerStore() as any
+
+  async function sendCommand(command: string): Promise<string> {
+    return new Promise((resolve) => {
+      let responseBuffer = ''
+      let responseTimeout: number | null = null
+      const RESPONSE_WAIT_TIME = 10 // Wait 500ms after last response before resolving
+
+      // Index to track which messages we've already processed
+      let lastProcessedIndex = dataViewerStore.dataFiltered.length - 1
+
+      const stopWatch = watch(
+        () => dataViewerStore.dataFiltered,
+        (newBuf: IDataBuf[]) => {
+          if (isDevMode()) {
+            console.log('watch data', newBuf)
+          }
+
+          // Process only new messages
+          for (let i = lastProcessedIndex + 1; i < newBuf.length; i++) {
+            const message = newBuf[i]
+            if (message.isRX) {
+              // Add to response buffer
+              responseBuffer += decodeUtf8(message.data)
+
+              // Reset timeout to wait for more responses
+              if (responseTimeout) {
+                clearTimeout(responseTimeout)
+              }
+
+              responseTimeout = window.setTimeout(() => {
+                stopWatch()
+                resolve(responseBuffer)
+              }, RESPONSE_WAIT_TIME)
+            }
+          }
+
+          // Update last processed index
+          lastProcessedIndex = newBuf.length - 1
+        },
+        { deep: true }
+      )
+
+      dataViewerStore.addString(command, false, true)
+
+      // Set a maximum timeout in case no response is received
+      const maxTimeout = window.setTimeout(() => {
+        stopWatch()
+        resolve(responseBuffer)
+      }, 1000) // 5 seconds maximum wait time
+    })
+  }
+
+  async function sendCommands(commands: string[]): Promise<string[]> {
+    const responses: string[] = []
+    for (const command of commands) {
+      const response = await sendCommand(command)
+      responses.push(response)
+    }
+    if (isDevMode()) {
+      console.log('sendCommands', responses)
+    }
+    return responses
+  }
+
+  return { sendCommands }
+}

src/composables/useSystemModule.ts

@@ -0,0 +1,54 @@
+import {useSystemStore} from "@/stores/useSystemStore";
+import {registerModule} from "@/router/msgRouter";
+import {type ApiJsonMsg, ControlEvent, type ControlMsg, ControlMsgType, WtModuleID} from "@/api";
+import {type ISysFmInfo, type ISysInfo, wt_sys_get_fm_info, wt_sys_get_sys_info, WtSytemCmd} from "@/api/apiSystem";
+import {isDevMode} from "@/composables/buildMode";
+
+
+export function useSystemModule() {
+    const sysStore = useSystemStore()
+
+    function onClientCtrl(msg: ControlMsg) {
+        if (msg.type !== ControlMsgType.WS_EVENT) {
+            return
+        }
+
+        if (msg.data === ControlEvent.CONNECTED) {
+            wt_sys_get_fm_info();
+            wt_sys_get_sys_info();
+            sysStore.rebootInProgress = false;
+        }
+    }
+
+    function onClientMsg(msg: ApiJsonMsg) {
+        switch (msg.cmd as WtSytemCmd) {
+            case WtSytemCmd.WT_SYS_REBOOT:
+                sysStore.rebootInProgress = true;
+                break;
+            case WtSytemCmd.WT_SYS_GET_FM_INFO: {
+                const fm_info = msg as ISysFmInfo;
+                sysStore.curFmInfo.date = fm_info.upd_date;
+                sysStore.curFmInfo.ver = fm_info.fm_ver;
+                break;
+            }
+            case WtSytemCmd.WT_SYS_GET_SYS_INFO: {
+                const sysInfo: ISysInfo = msg as ISysInfo & ApiJsonMsg;
+                Object.assign(sysStore.sysInfo, sysInfo);
+                break;
+            }
+        }
+        if (isDevMode()) {
+            console.log(msg);
+        }
+    }
+
+    registerModule(WtModuleID.SYSTEM, {
+        ctrlCallback: onClientCtrl,
+        serverJsonMsgCallback: onClientMsg,
+        serverBinMsgCallback: () => {},
+    });
+}
+
+
+
+

src/composables/useUartModule.ts

@@ -0,0 +1,81 @@
+import type { IUartMsgConfig, IUartMsgNum } from '@/api/apiUart'
+import type { IUartMsgBaud } from '@/api/apiUart'
+import { uart_get_baud, uart_get_config, WtUartCmd } from '@/api/apiUart'
+import { useUartStore } from '@/stores/useUartStore'
+import { registerModule } from '@/router/msgRouter'
+import * as api from '@/api'
+import { isDevMode } from './buildMode'
+import { useDataViewerStore } from '@/stores/dataViewerStore'
+import type { ApiBinaryMsg } from '@/api/binDataDef'
+import { ControlEvent } from '@/api'
+import * as df from '@/api/apiDataFlow'
+import { uart_get_default_num } from '@/api/apiUart'
+
+export function useUartModule() {
+  const dataViewerStore = useDataViewerStore()
+  const uartStore = useUartStore()
+
+  function updateUartData() {
+    /* TODO: hard code for the moment, 0 is UART instance id (can be changed in the future) */
+    uart_get_default_num()
+    df.wt_data_flow_attach_cur_to_sender(0)
+  }
+
+  const onUartJsonMsg = (msg: api.ApiJsonMsg) => {
+    switch (msg.cmd as WtUartCmd) {
+      case WtUartCmd.GET_BAUD:
+      case WtUartCmd.SET_BAUD: {
+        const uartMsg = msg as IUartMsgBaud
+        if (uartMsg.baud) {
+          dataViewerStore.setUartBaud(uartMsg.baud)
+        }
+        break
+      }
+      case WtUartCmd.GET_CONFIG:
+      case WtUartCmd.SET_CONFIG: {
+        const uartMsg = msg as IUartMsgConfig
+        dataViewerStore.uartConfig.data_bits = uartMsg.data_bits
+        dataViewerStore.uartConfig.stop_bits = uartMsg.stop_bits
+        dataViewerStore.uartConfig.parity = uartMsg.parity
+        break
+      }
+      case WtUartCmd.GET_DEFAULT_NUM:
+        uartStore.uartNum = (msg as IUartMsgNum).num
+        uart_get_baud(uartStore.uartNum)
+        uart_get_config(uartStore.uartNum)
+        break
+      default:
+        if (isDevMode()) {
+          console.log('uart not treated', msg)
+        }
+        break
+    }
+  }
+
+  const onUartBinaryMsg = (msg: ApiBinaryMsg) => {
+    if (isDevMode()) {
+      console.log('uart', msg)
+    }
+
+    dataViewerStore.addSegment(new Uint8Array(msg.payload), true)
+  }
+
+  const onClientCtrl = (msg: api.ControlMsg) => {
+    if (msg.type !== api.ControlMsgType.WS_EVENT) {
+      return
+    }
+
+    if (msg.data === ControlEvent.DISCONNECTED) {
+      dataViewerStore.acceptIncomingData = false
+    } else if (msg.data === ControlEvent.CONNECTED) {
+      updateUartData()
+      dataViewerStore.acceptIncomingData = true
+    }
+  }
+
+  registerModule(api.WtModuleID.UART, {
+    ctrlCallback: onClientCtrl,
+    serverJsonMsgCallback: onUartJsonMsg,
+    serverBinMsgCallback: onUartBinaryMsg
+  })
+}

src/composables/useUpdateModule.ts

@@ -0,0 +1,99 @@
+import {registerModule} from "@/router/msgRouter";
+import {type ApiJsonMsg, ControlEvent, type ControlMsg, ControlMsgType, WtModuleID} from "@/api";
+import {useUpdateStore} from "@/stores/useUpdateStore";
+import {
+    type IOTAFmInfo,
+    type IOTAProgress,
+    WtOTACmd,
+    WtOTAProgressStatus,
+    wt_ota_get_progress,
+    wt_ota_get_update_info,
+} from "@/api/apiOTA";
+import {isDevMode} from "@/composables/buildMode";
+import {useSystemStore} from "@/stores/useSystemStore";
+
+export function useUpdateModule() {
+    const updateStore = useUpdateStore()
+    const sysStore = useSystemStore()
+
+    function onClientCtrl(msg: ControlMsg) {
+        if (msg.type !== ControlMsgType.WS_EVENT) {
+            return
+        }
+
+        if (msg.data === ControlEvent.CONNECTED) {
+            wt_ota_get_update_info();
+            wt_ota_get_progress();
+        }
+    }
+
+    function onClientMsg(msg: ApiJsonMsg) {
+        switch (msg.cmd as WtOTACmd) {
+            case WtOTACmd.WT_OTA_GET_UPDATE_INFO: {
+                const info = msg as IOTAFmInfo;
+                Object.assign(updateStore.newFmInfo, info);
+                if (updateStore.newFmInfo.fm_ver !== sysStore.curFmInfo.ver && updateStore.newFmInfo.fm_ver[0] !== '-'
+                    && (updateStore.updateStatus === 'IDLE' || updateStore.updateStatus === 'FAILED')) {
+                    updateStore.canUpdate = true;
+                } else {
+                    updateStore.canUpdate = false;
+                }
+                break;
+            }
+            case WtOTACmd.WT_OTA_DO_UPDATE:
+                break;
+            case WtOTACmd.WT_OTA_GET_PROGRESS: {
+                const progress = msg as IOTAProgress;
+                updateStore.updateStatus = progress.status;
+                if (progress.total_size !== 0) {
+                    updateStore.updateProgress = (progress.progress / progress.total_size) * 100;
+                } else {
+                    updateStore.updateProgress = 0;
+                }
+                if (progress.status === WtOTAProgressStatus.IDLE) {
+                    if (updateStore.newFmInfo.fm_ver !== sysStore.curFmInfo.ver && updateStore.newFmInfo.fm_ver[0] !== '-') {
+                        updateStore.canUpdate = true;
+                    } else {
+                        updateStore.canUpdate = false;
+                    }
+                    updateStore.clearProgressInterval();
+                    updateStore.progressBarStatus = '';
+                } else if (progress.status === WtOTAProgressStatus.FAILED) {
+                    if (updateStore.newFmInfo.fm_ver !== sysStore.curFmInfo.ver && updateStore.newFmInfo.fm_ver[0] !== '-') {
+                        updateStore.canUpdate = true;
+                    } else {
+                        updateStore.canUpdate = false;
+                    }
+                    updateStore.clearProgressInterval();
+                    updateStore.progressBarStatus = 'exception';
+                } else if (progress.status === WtOTAProgressStatus.IN_PROGRESS) {
+                    updateStore.setProgressInterval();
+                    updateStore.progressBarStatus = '';
+                    updateStore.canUpdate = false;
+                } else if (progress.status === WtOTAProgressStatus.OK) {
+                    updateStore.clearProgressInterval();
+                    updateStore.canUpdate = false;
+                    updateStore.progressBarStatus = 'success';
+                }
+                break;
+            }
+            default:
+                break;
+        }
+
+        if (isDevMode()) {
+            console.log(msg);
+        }
+    }
+
+    registerModule(WtModuleID.OTA, {
+        ctrlCallback: onClientCtrl,
+        serverJsonMsgCallback: onClientMsg,
+        serverBinMsgCallback: () => {
+        },
+    });
+}
+
+
+
+

src/composables/websocket/websocketService.ts

@@ -2,7 +2,7 @@ import MyWorker from '@/composables/websocket/ws.sharedworker?sharedworker'
 import {WebsocketWrapper} from "@/composables/websocket/websocketWrapper";
 import {toClient, toClientCtrl, toServer} from "@/composables/broadcastChannelDef";
 import type {ControlMsg, ServerMsg} from "@/api";
-import {ControlEvent, ControlMsgType} from "@/api";
+import {ControlMsgType} from "@/api";
 import {isDevMode} from "@/composables/buildMode";

 export interface IWebsocketService {
@@ -14,12 +14,13 @@ export interface IWebsocketService {
     deinit(): void;

     send(msg: ServerMsg): void;
+    getSocketStatus(): void;
 }

 /**
  * Websocket that run in a shared worker, shared across tabs
  */
-class WebsocketShared implements IWebsocketService{
+class WebsocketShared implements IWebsocketService {
     private static instance: IWebsocketService;

     private worker: SharedWorker;
@@ -82,6 +83,10 @@ class WebsocketShared implements IWebsocketService{

         this.ctrlCallback(ev.data);
     }
+
+    getSocketStatus() {
+        this.worker.port.postMessage({type: ControlMsgType.WS_GET_STATE} as ControlMsg)
+    }
 }

 class WebsocketClassic implements IWebsocketService{
@@ -115,10 +120,14 @@ class WebsocketClassic implements IWebsocketService{
     send(msg: ServerMsg): void {
         this.socket.send(msg);
     }
+
+    getSocketStatus(): void {
+        this.socket.getSocketStatus();
+    }
 }

 export function getWebsocketService(): IWebsocketService {
-    if (typeof SharedWorker !== 'undefined') {
+    if (typeof SharedWorker !== 'undefined' && typeof localStorage !== 'undefined') {
         return WebsocketShared.getInstance();
     } else {
         return WebsocketClassic.getInstance();

src/composables/websocket/websocketWrapper.ts

@@ -1,5 +1,4 @@
-
-import type {ApiJsonMsg, ControlMsg, ServerMsg} from "@/api";
+import type {ControlMsg, ServerMsg} from "@/api";
 import {ControlEvent, ControlMsgType} from "@/api";
 import {isDevMode} from "@/composables/buildMode";

@@ -9,6 +8,8 @@ interface IWebsocket {
     close(): void;

     send(msg: ServerMsg): void;
+
+    getSocketStatus(): void;
 }

 class WebsocketDummy implements IWebsocket {
@@ -20,6 +21,9 @@ class WebsocketDummy implements IWebsocket {
     send(msg: ServerMsg) {

     }
+
+    getSocketStatus(): void {
+    }
 }

 class OneTimeWebsocket implements IWebsocket {
@@ -61,6 +65,8 @@ class OneTimeWebsocket implements IWebsocket {
                     console.log("No heart beat, break connection");
                     this.close();
                     this.clear();
+                // } else if (this.socket.readyState === this.socket.CONNECTING) {
+                //     this.close();
                 }
                 if (isDevMode()) {
                     console.log("interval: ", this.heartBeatTimeCount, "state: ", this.socket.readyState);
@@ -159,6 +165,26 @@ class OneTimeWebsocket implements IWebsocket {
         this.ctrlCallback(msg);
         this.closeCallback();
     }
+
+    getSocketStatus() {
+        let type: ControlEvent;
+        switch (this.socket.readyState) {
+            case WebSocket.CONNECTING:
+                type = ControlEvent.CONNECTING;
+                break;
+            case WebSocket.OPEN:
+                type = ControlEvent.CONNECTED;
+                break;
+            default:
+                type = ControlEvent.DISCONNECTED;
+                break;
+        }
+        const msg: ControlMsg = {
+            type: ControlMsgType.WS_EVENT,
+            data: type,
+        };
+        this.ctrlCallback(msg);
+    }
 }

 export class WebsocketWrapper {
@@ -219,4 +245,8 @@ export class WebsocketWrapper {
     send(msg: ServerMsg) {
         this.socket.send(msg)
     }
+
+    getSocketStatus() {
+        this.socket.getSocketStatus();
+    }
 }

src/composables/websocket/ws.sharedworker.ts

@@ -1,12 +1,11 @@
 import type {ControlMsg, ServerMsg} from "@/api";
-
-declare const self: SharedWorkerGlobalScope;
-
+import {ControlEvent, ControlMsgType} from "@/api";
 import {WebsocketWrapper} from "@/composables/websocket/websocketWrapper";
 import {toClient, toClientCtrl, toServer} from "@/composables/broadcastChannelDef";
-import {ControlEvent, ControlMsgType} from "@/api";
 import {isDevMode} from "@/composables/buildMode";

+declare const self: SharedWorkerGlobalScope;
+
 const websocket = new WebsocketWrapper();
 let host = "";

@@ -30,6 +29,8 @@ self.onconnect = function(event) {
                 host = e.data.data;
                 websocket.init(host, msgBroadcast, ctrlBroadcast);
             }
+        } else if (e.data.type === ControlMsgType.WS_GET_STATE) {
+            websocket.getSocketStatus();
         }
     };
     const msg: ControlMsg = {

src/i18n.ts

@@ -1,19 +1,52 @@
-import { createI18n } from 'vue-i18n';
+import {createI18n} from 'vue-i18n';
 import zh from '@/locales/zh'
 import en from '@/locales/en'
+import fr from '@/locales/fr'

-// const locale = localStorage.getItem('lang') || 'zh';
-export const locale = 'zh';
+const userLanguage = navigator.language || 'en';
+
+// Get the language code (e.g., 'en' from 'en-US')
+export const locale = userLanguage.split('-')[0];
+const messages = {
+    zh,
+    en,
+    fr,
+} as const;
+
+type Locale = keyof typeof messages;
+
+export const availableLanguages = Object.keys(messages);
+
+// export const locale = 'zh';
+console.log(userLanguage, locale, availableLanguages)

 const i18n = createI18n({
     globalInjection: true,
     legacy: false,
     locale: locale,
     fallbackLocale: 'zh',
-    messages: {
-        zh,
-        // en,
-    }
+    messages: messages
 });

+export function getFlagFromLang(lang: string) {
+    if (lang === 'zh') {
+        return '🇨🇳';
+    } else if (lang === 'en') {
+        return '🇺🇸';
+    } else if (lang === 'fr') {
+        return '🇫🇷';
+    }
+    return '🏳️';
+}
+
+export function setLang(lang: string): void {
+    if (availableLanguages.includes(lang)) {
+        i18n.global.locale.value = lang as Locale;
+    }
+}
+
+export function getLang() {
+    return i18n.global.locale;
+}
+
 export default i18n;

src/locales/en.ts

@@ -1,3 +1,235 @@
 export default {
-    disconnected: "disconnected"
+    emoji: {
+        flag: "🇺🇸",
+    },
+    disconnected: "Disconnected",
+    connected: "Connected",
+    connecting: "Connecting",
+    use: "use",
+    author: "author",
+    studioYunSi: "Yunsi Studio",
+    authorEmail: "Author email",
+    TencentQQGroup: "QQ Group",
+    Discord: "Discord",
+    BiliBili: "BiliBili",
+
+    suggestion: "suggestion",
+    feature: "feature",
+    version: "Version",
+    releaseTime: "Release Time",
+    credit: "Credit",
+    aboutWebHost: "About the Web Host Application",
+    aboutDebugger: "About the Debugger",
+    officialWebsite: "Official Website",
+    email: "Email",
+    note: "Note",
+    welcomeMessage: "Welcome to reach out anytime",
+    serialNumber: "Serial Number",
+
+    ws: {
+        disconnected: "Disconnected",
+        connected: "Connected",
+        connecting: "Connecting",
+    },
+
+    page: {
+        home: "Home",
+        wifi: "Wi-Fi",
+        about: "About",
+        uart: "Uart",
+        widget: "Widget",
+        feedback: "Feedback",
+        close: "Close",
+        update: "Update",
+        fullscreen: "Fullscreen",
+        windowed: "Windowed"
+    },
+
+    uart: {
+        port: "Port",
+        startCommunication: "Start Communication",
+        stopCommunication: "Stop Communication",
+        commonlyUsed: "Common",
+        baudrate: "Baud Rate",
+        customBaud: "Custom Baud",
+        use: "Use",
+        actual: "Actual",
+        dataBits: "Data Bits",
+        stopBits: "Stop Bits",
+        parity: "Parity",
+        parityNone: "None",
+        parityOdd: "Odd",
+        parityEven: "Even",
+        flowControl: "Flow Control",
+        send: "Send",
+        clear: "Clear",
+        clearTooltip: "Only clears the display area, can be restored with refresh.",
+        updateTooltip: "Sync with cache + filter",
+        autoUpdateTooltip: "Only stop refreshing the display area; the background continues to receive data.",
+        receive: "Receive",
+
+        displayOptions: "Display Options",
+        display: "Display",
+        show: "Show",
+        text: "Text",
+        timestamp: "Timestamp",
+        enable: "Enable",
+        lineWrap: "Line Wrap",
+        highlight: "Highlight",
+
+        frameBreakStrategy: "Frame Break Strategy",
+        priority: "Priority",
+        rule: "Rule",
+        ruleTips:
+            "<p>Timeout=-1: Disable timeout frame break</p>" +
+            "<p>Timeout=0: Immediate break, any received data is considered complete</p>" +
+            "<p>Match after break: Typical \\n scenario</p>" +
+            "<p>Match before break: For scenarios with special frame headers</p>" +
+            "<p>Fixed byte frame break: Useful for large data transfer, e.g., break frame every 1024 bytes for easy data viewing</p>",
+        value: "Value",
+        timeout: "Timeout",
+        match: "Match",
+        byte: "Byte",
+        begin: "b",
+        end: "b",
+
+        other: "Other",
+        decodeAnsiEscapeCodes: "Decode ANSI Escape Codes",
+        ansiTooltips:
+            "<p>ANSI escape codes have many uses for terminals and text, such as changing text colors, among other effects.</p>\n" +
+            "<p>\n  Learn more ->\n  <a target=\"_blank\" href=\"https://en.wikipedia.org/wiki/ANSI_escape_code\">" +
+            "https://en.wikipedia.org/wiki/ANSI_escape_code\n  </a></p>",
+        filter: "Filter",
+        textAndEscape: "Text with \\n\\x support",
+        autoUpdateNewData: "Auto-refresh new data",
+        updateFrequency: "Data Display Update Interval (ms)",
+        updateFrequencyTooltip: "Increasing the interval can reduce CPU usage.",
+
+        addHeader: "Add Header",
+        addFooter: "Add Footer",
+
+        passthrough: "Passthrough",
+        proxy: "Proxy",
+        serverPort: "Server Port",
+        connectedClient: "Connected Client",
+        refresh: "Refresh",
+        interface: "Interface",
+        noClientConnected: "No Client Connected",
+
+        import: "Import",
+        export: "Export",
+        reset: "Reset",
+        resetTooltip: "Takes effect after refreshing the page.",
+        saveToLocal: "Save to Local",
+        saveToLocalTooltip: "If multiple pages exist, they will overwrite each other.",
+        add: "Add",
+        edit: "Edit",
+        drag: "Drag",
+        ipChangeAlert: "Changing the IP address will cause the configuration to be lost.",
+
+        layout: "Layout",
+        landscape: "Landscape",
+        portrait: "Portrait",
+        responsive: "Responsive",
+        configPannel: "Config",
+        displayPannel: "Display",
+        macroPannel: "Quick Send",
+        autoScrollToBottom: "Auto Scroll",
+        clearScreen: "Clear",
+        autoUpdate: "Auto Update",
+        tempDisplayTooltip: "Data that does not meet the frame-break rules (e.g., not timed out) is temporarily displayed in real-time in this area. If it exceeds 8192 bytes, it will automatically break frames.",
+        loopSend: "Loop Send",
+        loopSendTooltip: "The actual frequency is affected by the interface refresh rate. For more accuracy, you can try turning off 'auto-refresh'.",
+        sendFormat: "Send Format",
+        cachedFrame: "Cached",
+        format: "Format",
+    },
+
+    wifi: {
+        settings: "Settings",
+        setFailed: "Settings failed to set",
+        setSuccess: "Settings saved",
+        connection: "Connection",
+        scanning: "Scanning",
+        scan: "Scan",
+        scanDone: "Scan done",
+        warnWifiName: "Enter Wi-Fi Name",
+        password: "Password",
+        connectInfoHTML: "Changing Wi-Fi will disconnect this interface from the passthrough device if not connected through its hotspot.",
+        connect: "Connect",
+        mode: "Mode",
+        save: "Save",
+        station: "Station",
+        intelligent: "Smart",
+        APOnly: "Hotspot Only",
+        disconnected: "Disconnected",
+        modeTipsHtml: "<p>\n" +
+            "<el-textsize=\"small\">Smart Mode:</el-text>\n" +
+            "After connecting to Wi-Fi, the hotspot will turn off automatically after 30 seconds if no device is connected. It will turn on after 5 seconds if disconnected from AP.\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">Coexistence Mode:</el-text>\n" +
+            "Convenient but impacts stability and increases power consumption.\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">Hotspot-Only Mode Drawback:</el-text>\n" +
+            "No network connection.\n" +
+            "</p>",
+        enabled: "Enabled",
+        disabled: "Disabled",
+
+        stationInfo: "Terminal (STA)",
+        hotspotInfo: "Hotspot (AP)",
+        signalStrength: "Signal Strength",
+        gateway: "Gateway",
+        netmask: "Netmask",
+        primaryDNS: "Primary DNS",
+        backupDNS: "Backup DNS",
+        IPmode: "IP Allocation Mode",
+        DNSmode: "DNS Mode",
+        internalAddress: "Internal Address",
+
+        autoIP: "Automatic (DHCP)",
+        staticIP: "Static IP",
+        autoDNS: "Automatic (Use Gateway)",
+        staticDNS: "Static DNS",
+        APauto_STA: "Smart Hotspot + Persistent Terminal (AP+STA)",
+        APonly: "Hotspot Only (AP)",
+        AP_STA: "Persistent Hotspot + Persistent Terminal (AP+STA)",
+
+        connectionSuccess: "Connection Successful",
+        enterAPName: "Entre the AP name",
+        debuggerNotConnected: "Debugger not connected",
+    },
+
+    widget: {
+        editGrid: 'Edit Grid',
+        editCell: 'Edit Cell',
+        loopWidget: 'Loop Widget',
+        loopWidgetDesc: 'Container for command sequences.',
+        addGrid: 'Add to Grid',
+        dataViewer: 'Data Viewer',
+        dataViewerDesc: 'Displays raw text data from UART.',
+        exportSettings: 'Export Settings',
+        importSettings: 'Import Settings',
+        resetToDefault: 'Reset to Default',
+        gridItemName: 'Widget name',
+        dropHere: 'Drop here',
+        run: 'Run',
+        loop: 'Loop',
+        delay: 'Delay',
+        addCommand: 'Add Command',
+        loopInterval: 'Loop Interval',
+        uartViewOnce: 'UART View Widget can only be added once.'
+    },
+
+    common: {
+        debuggerConnected: 'Debugger connected',
+        ok: 'OK'
+    },
+
+    navbar: {
+        navigationSidebar: 'Navigation Sidebar',
+        getSomeFries: "Let's go to the dock and get some fries",
+    },
 };

src/locales/fr.ts

@@ -0,0 +1,236 @@
+export default {
+    emoji: {
+        flag: "🇫🇷",
+    },
+    disconnected: "Déconnecté",
+    connected: "Connecté",
+    connecting: "Connexion..",
+    use: "utiliser",
+    author: "Auteur",
+    studioYunSi: "Studio Yunsi",
+    authorEmail: "Email de l'auteur",
+    TencentQQGroup: "Groupe QQ",
+    Discord: "Discord",
+    BiliBili: "BiliBili",
+
+    suggestion: "suggestion",
+    feature: "fonctionnalité",
+    version: "Version",
+    releaseTime: "Date de Publication",
+    credit: "Remerciements",
+    aboutWebHost: "À propos de l'Hôte Web",
+    aboutDebugger: "À propos du Débogueur",
+    officialWebsite: "Site Officiel",
+    email: "E-mail",
+    note: "Remarque",
+    welcomeMessage: "N'hésitez pas à venir nous solliciter.",
+    serialNumber: "Numéro de série",
+
+    ws: {
+        disconnected: "Déconnecté",
+        connected: "Connecté",
+        connecting: "Connexion..",
+    },
+
+    page: {
+        home: "Accueil",
+        wifi: "Wi-Fi",
+        about: "À propos",
+        uart: "Uart",
+        widget: "Widget",
+        feedback: "Feedback",
+        close: "Fermer",
+        update: "Mise à jour",
+        fullscreen: "Plein écran",
+        windowed: "Fenêtré",
+    },
+
+    uart: {
+        port: "Port",
+        startCommunication: "Démarrer la communication",
+        stopCommunication: "Arrêter la communication",
+        commonlyUsed: "Fréquemment utilisé",
+        baudrate: "Taux de Baud",
+        customBaud: "Baud",
+        use: "Utiliser",
+        actual: "Actuel",
+        dataBits: "Bits de Données",
+        stopBits: "Bits d'Arrêt",
+        parity: "Parité",
+        parityNone: "Aucune",
+        parityOdd: "Impair(Odd)",
+        parityEven: "Pair(Even)",
+        flowControl: "Contrôle de Flux",
+        send: "Envoyer",
+        clear: "Effacer",
+        clearTooltip: "Ne supprime que la zone d'affichage, peut être restaurée en actualisant.",
+        updateTooltip: "Synchroniser avec le cache + filtrer",
+        autoUpdateTooltip: "Arrête uniquement le rafraîchissement de la zone d'affichage ; l'arrière-plan continue de recevoir des données.",
+        receive: "Recevoir",
+
+        displayOptions: "Options d'Affichage",
+        display: "Affichage",
+        show: "Afficher",
+        text: "Texte",
+        timestamp: "Horodatage",
+        enable: "Activer",
+        lineWrap: "Retour à la Ligne",
+        highlight: "Surligner",
+
+        frameBreakStrategy: "Stratégie de Coupure de Trame",
+        priority: "Priorité",
+        rule: "Règle",
+        ruleTips:
+            "<p>Délai d'expiration=-1 : Désactiver la coupure de trame par délai d'expiration</p>" +
+            "<p>Délai d'expiration=0 : Coupure immédiate, toutes données reçues sont considérées complètes</p>" +
+            "<p>Match après coupure : Scénario typique \\n</p>" +
+            "<p>Match avant coupure : Pour des scénarios avec en-têtes de trame spécifiques</p>" +
+            "<p>Coupure de trame par octets fixes : Utile pour le transfert de grandes quantités de données, par exemple, couper la trame tous les 1024 octets pour faciliter la visualisation des données</p>",
+        value: "Valeur",
+        timeout: "Timeout",
+        match: "Match",
+        byte: "Byte",
+        begin: "b",
+        end: "b",
+
+        other: "Autres",
+        decodeAnsiEscapeCodes: "Décode Échappement ANSI",
+        ansiTooltips:
+            "<p>Les codes d'échappement ANSI ont de nombreuses utilisations pour les terminaux et le texte, comme changer les couleurs du texte, entre autres effets.</p>" +
+            "<p>\n  En savoir plus ->\n  " +
+            "<a target=\"_blank\" href=\"https://en.wikipedia.org/wiki/ANSI_escape_code\">\n" +
+            "https://en.wikipedia.org/wiki/ANSI_escape_code\n  </a>\n</p>",
+        filter: "Filtrer",
+        textAndEscape: "Texte;supporte\\n\\x",
+        autoUpdateNewData: "Auto-update nouvelles données",
+        updateFrequency: "Délais rafraîchissement des Données (ms)",
+        updateFrequencyTooltip: "Augmenter l'intervalle peut réduire l'utilisation des ressources CPU.",
+
+        addHeader: "Ajouter un En-tête",
+        addFooter: "Ajouter un Pied de page",
+
+        passthrough: "Transmission",
+        proxy: "Proxy",
+        serverPort: "Port Serveur",
+        connectedClient: "Client Connecté",
+        refresh: "Rafraîchir",
+        interface: "Interface",
+        noClientConnected: "Aucun Client Connecté",
+
+        import: "Importer",
+        export: "Exporter",
+        reset: "Réinitialiser",
+        resetTooltip: "Prend effet après le rafraîchissement de la page.",
+        saveToLocal: "Enregistrer Localement",
+        saveToLocalTooltip: "S'il existe plusieurs pages, elles se chevaucheront mutuellement.",
+        add: "Ajouter",
+        edit: "Éditer",
+        drag: "Glisser",
+        ipChangeAlert: "Le changement d'adresse IP entraînera la perte de la configuration.",
+
+        layout: "Disposition",
+        landscape: "Paysage",
+        portrait: "Portrait",
+        responsive: "Résponsive",
+        configPannel: "Configuration",
+        displayPannel: "Données",
+        macroPannel: "Envoie Rapide",
+        autoScrollToBottom: "Auto Scroll",
+        clearScreen: "Effacer",
+        autoUpdate: "Auto Update",
+        tempDisplayTooltip: "es données qui ne respectent pas les règles de rupture de trame (par exemple : non expirées) s'affichent temporairement en temps réel dans cette zone. Au-delà de 8192 octets, une rupture de trame est automatique.",
+        loopSend: "Envoi en Boucle",
+        loopSendTooltip: "La fréquence réelle est influencée par le taux de rafraîchissement de l'interface. Pour plus de précision, vous pouvez essayer de désactiver 'l'actualisation automatique'.",
+        sendFormat: "Format d'Envoi",
+        cachedFrame: "Cache",
+        format: "Format",
+    },
+
+    wifi: {
+        settings: "Paramètres",
+        setFailed: "Echec d'enregistrement de paramètres",
+        setSuccess: "Paramètres enregistrés",
+        connection: "Connexion",
+        scanning: "Recherche en cours",
+        scan: "Rechercher",
+        scanDone: "Fin recherche de Wi-Fi",
+        warnWifiName: "Entrez le nom du Wi-Fi",
+        password: "Mot de passe",
+        connectInfoHTML: "Changer de Wi-Fi déconnectera cette interface du dispositif de transmission s'il ne passe pas par le point d'accès.",
+        connect: "Connecter",
+        mode: "Mode",
+        save: "Enregistrer",
+        station: "Station",
+        intelligent: "Intelligent",
+        APOnly: "Point d'accès uniquement",
+        disconnected: "Déconnecté",
+        modeTipsHtml: "<p>\n" +
+            "<el-textsize=\"small\">Mode intelligent :</el-text>\n" +
+            "Après la connexion au Wi-Fi, le point d'accès s'éteindra automatiquement après 30 secondes si aucun appareil n'est connecté. Il s'allumera après 5 secondes si la connexion AP est perdue.\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">Mode coexistence :</el-text>\n" +
+            "Pratique mais réduit la stabilité et augmente la consommation d'énergie.\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">Inconvénient du mode point d'accès seul :</el-text>\n" +
+            "Pas de connexion réseau.\n" +
+            "</p>",
+        enabled: "Activé",
+        disabled: "Désactivé",
+
+        stationInfo: "Terminal(STA)",
+        hotspotInfo: "Point d'Accès(AP)",
+        signalStrength: "Puissance du Signal",
+        gateway: "Passerelle",
+        netmask: "Masque de Sous-réseau",
+        primaryDNS: "DNS Primaire",
+        backupDNS: "DNS Secondaire",
+        IPmode: "Mode d'Attribution IP",
+        DNSmode: "Mode DNS",
+        internalAddress: "Adresse Interne",
+
+        autoIP: "Automatique (DHCP)",
+        staticIP: "IP Statique",
+        autoDNS: "Automatique (gateway)",
+        staticDNS: "DNS Statique",
+        APauto_STA: "Point d'Accès Intelligent + Terminal Permanent (AP+STA)",
+        APonly: "Point d'Accès Seul (AP)",
+        AP_STA: "Point d'Accès Permanent + Terminal Permanent (AP+STA)",
+
+        connectionSuccess: "Connexion Réussie",
+        enterAPName: "Entrez le nom du AP",
+        debuggerNotConnected: "Debugger non connecté",
+    },
+
+    widget: {
+        editGrid: 'Modifier la grille',
+        editCell: 'Modifier les cellules',
+        loopWidget: 'Widget Boucle',
+        loopWidgetDesc: 'Conteneur pour les séquences de commandes.',
+        addGrid: 'Ajouter à la grille',
+        dataViewer: 'Visualiseur de données',
+        dataViewerDesc: "Affiche les données texte brutes de l'UART.",
+        exportSettings: 'Exporter les paramètres',
+        importSettings: 'Importer les paramètres',
+        resetToDefault: 'Réinitialiser par défaut',
+        gridItemName: "Nom",
+        dropHere: 'Déposer ici',
+        run: 'Exécuter',
+        loop: 'Boucle',
+        delay: 'Délai',
+        addCommand: 'Ajouter une commande',
+        loopInterval: 'Intervalle de répétition',
+        uartViewOnce: "Le widget de vue UART ne peut être ajouté qu'une seule fois."
+    },
+
+    common: {
+        debuggerConnected: 'Débogueur connecté',
+        ok: 'OK'
+    },
+
+    navbar: {
+        navigationSidebar: 'Barre latérale de navigation',
+        getSomeFries: 'Allons au quai prendre des frites',
+    },
+};

src/locales/index.ts

@@ -7,8 +7,8 @@ type NestedKeyOf<ObjectType extends object> = {
         : `${Key}`
 }[keyof ObjectType & (string | number)];

-type TranslationKeys = NestedKeyOf<typeof zh>;
+export type TranslationKeys = NestedKeyOf<typeof zh>;

-export function translate<K extends TranslationKeys>(key: K | string): string {
-    return i18n.global.t(key.toLowerCase());
+export function translate(key: TranslationKeys | string): string {
+    return i18n.global.t(key);
 }

src/locales/zh.ts

@@ -1,7 +1,30 @@
 export default {
+    emoji: {
+        flag: "🇨🇳",
+    },
     disconnected: "未连接",
     connected: "已连接",
     connecting: "连接中",
+    use: "使用",
+    author: "作者",
+    studioYunSi: "允斯工作室",
+    authorEmail: "作者邮箱",
+    TencentQQGroup: "QQ群",
+    Discord: "Discord",
+    BiliBili: "哔哩哔哩",
+
+    suggestion: "建议",
+    feature: "需求",
+    version: "版本",
+    releaseTime: "发布时间",
+    credit: "鸣谢",
+    aboutWebHost: "关于网页版上位机",
+    aboutDebugger: "关于调试器",
+    officialWebsite: "官网",
+    email: "邮箱",
+    note: "备注",
+    welcomeMessage: "欢迎来打扰啊~",
+    serialNumber: "序列号",

     ws: {
         disconnected: "未连接",
@@ -13,8 +36,204 @@ export default {
         home: "主页",
         wifi: "Wi-Fi",
         about: "关于",
-        uart: "UART透传",
+        uart: "UART",
+        widget: "组件",
         feedback: "反馈",
         close: "关闭",
+        update: "更新",
+        fullscreen: "全屏",
+        windowed: "窗口",
+    },
+
+    uart: {
+        port: "接口",
+        startCommunication: "开始数据收发",
+        stopCommunication: "停止数据收发",
+        commonlyUsed: "常用",
+        baudrate: "波特率",
+        customBaud: "自定义波特率",
+        use: "使用",
+        actual: "实际",
+        dataBits: "数据位",
+        stopBits: "停止位",
+        parity: "校验位",
+        parityNone: "无(None)",
+        parityOdd: "奇(Odd)",
+        parityEven: "偶(Even)",
+        flowControl: "流控制",
+        send: "发送",
+        clear: "清空",
+        clearTooltip: "仅清除显示区域，可用刷新恢复",
+        updateTooltip: "与缓存同步+过滤",
+        autoUpdateTooltip: "仅停止刷新显示区，后台继续接收数据",
+        receive: "接收",
+
+        displayOptions: "显示选项",
+        display: "显示框",
+        show: "显示",
+        text: "文本",
+        timestamp: "时间戳",
+        enable: "启用",
+        lineWrap: "换行",
+        highlight: "高亮",
+
+        frameBreakStrategy: "断帧策略",
+        priority: "优先级",
+        rule: "规则",
+        ruleTips:
+            "<p>超时=-1： 禁用超时断帧</p>" +
+            "<p>超时=0： 当机立断，收到任何数据都视为完整数据</p>" +
+            "<p>匹配断后：典型\\n的场景</p>" +
+            "<p>匹配断前：用于有特殊帧头的场景</p>" +
+            "<p>固定字节断帧：传输大量数据，比如可以每隔1024字节断帧，方便查看数据</p>",
+        value: "值",
+        timeout: "超时",
+        match: "匹配",
+        byte: "字节",
+        begin: "断",
+        end: "断",
+
+        other: "其他",
+        decodeAnsiEscapeCodes: "解码ANSI转义码",
+        ansiTooltips:
+            "<p>ANSI转义码对终端和文本有很多作用，比如改变文本颜色等。</p>\n" +
+            "<p>\n" +
+            "  简单了解->\n" +
+            "  <a target=\"_blank\" href=\"https://yunsi.studio/wireless-debugger/docs/uart-webhost/ansi-escape-code\">\n" +
+            "    https://yunsi.studio/wireless-debugger/docs/uart-webhost/ansi-escape-code\n" +
+            "  </a>\n" +
+            "</p>",
+        filter: "过滤",
+        textAndEscape: "文本，支持\\n\\x",
+        autoUpdateNewData: "新数据自动刷新",
+        updateFrequency: "数据显示刷新间隔(ms)",
+        updateFrequencyTooltip: "提高间隔可减少CPU资源的使用",
+
+        addHeader: "增加帧头",
+        addFooter: "增加帧尾",
+
+        passthrough: "透传",
+        proxy: "透传",
+        serverPort: "服务器端口",
+        connectedClient: "已连接的客户端",
+        refresh: "刷新",
+        interface: "接口",
+        noClientConnected: "无客户端连接",
+
+        import: "导入",
+        export: "导出",
+        reset: "重置",
+        resetTooltip: "刷新页面后生效",
+        saveToLocal: "保存到本地",
+        saveToLocalTooltip: "若存在多个页面，会相互覆盖",
+        add: "添加",
+        edit: "编辑",
+        drag: "拖拽",
+        ipChangeAlert: "IP地址改变会导致配置丢失",
+
+        layout: "布局",
+        landscape: "横/行",
+        portrait: "竖/列",
+        responsive: "自适应",
+        configPannel: "设置窗",
+        displayPannel: "数据窗",
+        macroPannel: "快捷窗",
+        autoScrollToBottom: "自动滚动到底部",
+        clearScreen: "清屏",
+        autoUpdate: "自动刷新",
+        tempDisplayTooltip: "未满足断帧规则的数据（如：未超时），暂时实时显示在此区域。超过8192字节，自动断帧；",
+        loopSend: "循环发送",
+        loopSendTooltip: "实际频率受界面刷新率影响，如需要更精确，可以尝试关闭'自动刷新'",
+        sendFormat: "发送格式",
+        cachedFrame: "缓存帧数",
+        format: "格式化",
+    },
+
+    wifi: {
+        settings: "配置",
+        setFailed: "设置失败",
+        setSuccess: "配置成功",
+        connection: "连接",
+        scanning: "扫描中",
+        scan: "扫描",
+        scanDone: "扫描成功",
+        warnWifiName: "请输入WIFI名",
+        password: "密码",
+        connectInfoHTML: "如果不是通过透传器的热点连接，更换Wi-Fi将导致此界面与透传器断开连接。",
+        connect: "连接",
+        mode: "模式",
+        save: "保存",
+        station: "终端",
+        intelligent: "智能",
+        APOnly: "仅开启热点",
+        disconnected: "未连接",
+        modeTipsHtml: "<p>\n" +
+            "<el-textsize=\"small\">智能模式：</el-text>\n" +
+            "成功连接至Wi-Fi后,如果此设备的热点未被其他设备连接,将在30秒后自动关闭热点;如果此设备与AP断开连接,将在5秒后自动开启热点\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">热点+终端共存模式：</el-text>\n" +
+            "方便使用，但是影响稳定性，增加功耗\n" +
+            "</p>\n" +
+            "<p>\n" +
+            "<el-textsize=\"small\">单热点模式缺点：</el-text>\n" +
+            "无网络\n" +
+            "</p>",
+        enabled: "已开启",
+        disabled: "未开启",
+
+        stationInfo: "终端(STA)",
+        hotspotInfo: "自发热点(AP)",
+        signalStrength: "信号强度",
+        gateway: "网关",
+        netmask: "掩码",
+        primaryDNS: "首选DNS",
+        backupDNS: "备用DNS",
+        IPmode: "IP分配模式",
+        DNSmode: "DNS模式",
+        internalAddress: "内网地址",
+
+        autoIP: "自动 (DHCP)",
+        staticIP: "静态IP",
+        autoDNS: "自动 (使用网关)",
+        staticDNS: "静态DNS",
+        APauto_STA: "智能热点+常开终端 (AP+STA)",
+        APonly: "仅开启热点 (AP)",
+        AP_STA: "常开热点+常开终端 (AP+STA)",
+
+        connectionSuccess: "连接成功",
+        enterAPName: "请输入AP名",
+        debuggerNotConnected: "调试器未连接",
+    },
+
+    widget: {
+        editGrid: '编辑网格',
+        editCell: '编辑单元',
+        loopWidget: '循环小部件',
+        loopWidgetDesc: '用于命令序列的容器。',
+        addGrid: '添加到网格',
+        dataViewer: '数据显示器',
+        dataViewerDesc: '显示来自UART的原始文本数据。',
+        exportSettings: '导出设置',
+        importSettings: '导入设置',
+        resetToDefault: '重置',
+        gridItemName: '组件名称',
+        dropHere: '在此处放置',
+        run: '运行',
+        loop: '循环',
+        delay: '延迟',
+        addCommand: '添加命令',
+        loopInterval: '循环间隔',
+        uartViewOnce: 'UART视图组件只能添加一次。'
+    },
+
+    common: {
+        debuggerConnected: '调试器已连接',
+        ok: '好的'
+    },
+
+    navbar: {
+        navigationSidebar: '导航侧栏',
+        getSomeFries: '走，去码头整点薯条',
     },
 }

src/main.ts

@@ -4,6 +4,8 @@ import '@/assets/page.css'
 import '@/assets/navigation.css'
 import 'element-plus/dist/index.css';

+import 'vuetify/styles'
+import { createVuetify } from 'vuetify'

 import { createApp } from 'vue'
 import { createPinia } from 'pinia'
@@ -17,5 +19,6 @@ const app = createApp(App)
 app.use(createPinia())
 app.use(i18n);
 app.use(router)
+app.use(createVuetify())

 app.mount('#app')

src/router/index.ts

@@ -1,54 +1,101 @@
-import {createRouter, createWebHistory} from 'vue-router'
-import Home from '@/views/Home.vue'
+import {createRouter, createWebHashHistory, type RouteLocationNormalizedLoaded} from 'vue-router'
 import Wifi from '@/views/Wifi.vue'
 import Feedback from '@/views/Feedback.vue'
 import About from '@/views/About.vue'
 import Uart from '@/views/Uart.vue'
 import Page404 from '@/views/404.vue'
+import Update from '@/views/Update.vue'
+import WidgetPannel from '@/views/WidgetPannel.vue'
 import {translate} from "@/locales";
+import {isOTAEnabled} from "@/composables/buildMode";
+import {reactive, watch} from "vue";
+import {getLang} from "@/i18n";

+const languageState = reactive({
+    lang: getLang()
+});
+
+interface AppRouteMeta {
+    title?: string;
+    titleKey?: string;
+}
+
+const updateMetaTitles = () => {
+    router.getRoutes().forEach(route => {
+        const meta = route.meta as AppRouteMeta;
+        if (meta.titleKey) {
+            meta.title = translate(meta.titleKey);
+        }
+    });
+};
+
+function updateDocumentTitle(route: RouteLocationNormalizedLoaded) {
+    const meta = route.meta as AppRouteMeta;
+    document.title = typeof route.meta.title === 'string'
+        ? `${translate(meta.titleKey || "")} | ${translate('studioYunSi')}`
+        : '允斯调试器';
+}
+
+// Watch for language changes to update the titles dynamically
+watch(() => languageState.lang, () => {
+    // Recompute all route meta titles
+    updateMetaTitles();
+    updateDocumentTitle(router.currentRoute.value);
+}, {deep: true});

 const router = createRouter({
-    history: createWebHistory(import.meta.env.BASE_URL),
+    history: createWebHashHistory(import.meta.env.BASE_URL),
     routes: [
         {
             path: '/',
             name: 'home',
-            meta: {title: translate("page.home")},
-            // component: Wifi
-            redirect: () => '/wifi',
+            meta: { titleKey: 'page.home' },
+            redirect: () => '/uart',
         }, {
             path: '/home:ext(.*)',
-            meta: {title: translate("page.home")},
+            meta: { titleKey: 'page.home' },
             redirect: () => '/',
         }, {
             path: '/wifi:ext(.*)',
-            meta: {title: translate('page.wifi')},
+            meta: { titleKey: 'page.wifi' },
             component: Wifi,
         }, {
             path: '/about:ext(.*)',
-            meta: {title: translate('page.about')},
+            meta: { titleKey: 'page.about' },
             component: About,
         }, {
             path: '/uart:ext(.*)',
-            meta: {title: translate('page.uart')},
+            meta: { titleKey: 'page.uart' },
             component: Uart,
+        }, {
+            path: '/widget:ext(.*)',
+            meta: { titleKey: 'page.widget' },
+            component: WidgetPannel,
         }, {
             path: '/feedback:ext(.*)',
-            meta: {title: translate('page.feedback')},
+            meta: { titleKey: 'page.feedback' },
             name: 'feedback',
             component: Feedback,
         }, {
-            path: '/:catchAll(.*)', // This will match all paths that aren't matched by above routes
+            path: '/update:ext(.*)',
+            meta: { titleKey: 'page.update' },
+            name: 'update',
+            component: isOTAEnabled() ? Update : Page404,
+        }, {
+            path: '/:catchAll(.*)', // Catch-all route for 404
             name: 'NotFound',
             component: Page404,
         },
     ]
 })

+// Update document title dynamically
 router.beforeEach((to, from, next) => {
-    document.title = typeof to.meta.title === 'string' ? to.meta.title + " | 允斯工作室" : '允斯调试器';
+    updateDocumentTitle(to);
     next();
 });

-export default router
+// Initialize titles on load
+updateMetaTitles();
+
+export default router;

src/router/msgRouter.ts

@@ -12,6 +12,9 @@ const moduleMap = new Map<number, IModuleCallback>();

 export function registerModule(moduleId: number, moduleCallback: IModuleCallback): boolean {
     if (moduleMap.has(moduleId)) {
+        if (isDevMode()) {
+            console.log("module ", moduleId, "already registered");
+        }
         return false;
     }


src/stores/useDataFlowStore.ts

@@ -0,0 +1,11 @@
+import {defineStore} from "pinia";
+import {type Ref, ref} from "vue";
+import type {InstanceInfo} from "@/api/apiDataFlow";
+
+export const useDataFlowStore = defineStore('data_flow', () => {
+    const instanceList: Ref<InstanceInfo[]> = ref([]);
+
+    return {
+        instanceList,
+    }
+});

src/stores/useSystemStore.ts

@@ -0,0 +1,28 @@
+import {defineStore} from "pinia";
+import {ref} from "vue";
+
+export const useSystemStore = defineStore('system', () => {
+
+    const curFmInfo = ref({
+        ver: "-",
+        date: "-",
+    });
+
+    const hwInfo = ref({
+        ver: "-",
+        date: "-",
+    })
+
+    const sys_info = ref({
+        sn: "-",
+    });
+
+    const rebootInProgress = ref(false);
+
+    return {
+        curFmInfo,
+        hwInfo,
+        sysInfo: sys_info,
+        rebootInProgress,
+    }
+});

src/stores/useUartStore.ts

@@ -0,0 +1,8 @@
+import { ref } from 'vue'
+import { defineStore } from 'pinia'
+
+export const useUartStore = defineStore('uart', () => {
+    const uartNum = ref(1);
+
+    return { uartNum }
+})

src/stores/useUpdateStore.ts

@@ -0,0 +1,45 @@
+import { ref } from 'vue'
+import { defineStore } from 'pinia'
+import {wt_ota_get_progress} from "@/api/apiOTA";
+
+export const useUpdateStore = defineStore('update', () => {
+    const canUpdate = ref(false);
+    const updateProgress = ref(0);
+    const updateStatus = ref('');
+
+    const progressBarStatus = ref('');
+
+    let progressIntervalID = -1;
+
+    const newFmInfo = ref({
+        fm_size: 0,
+        fm_ver: "-",
+        upd_date: "-",
+        upd_note: "-",
+    })
+
+    function setProgressInterval() {
+        if (progressIntervalID < 0) {
+            progressIntervalID = setInterval(() => {
+                wt_ota_get_progress();
+            }, 1000);
+        }
+    }
+
+    function clearProgressInterval() {
+        if (progressIntervalID >= 0) {
+            clearInterval(progressIntervalID);
+            progressIntervalID = -1;
+        }
+    }
+
+    return {
+        canUpdate,
+        updateProgress,
+        updateStatus,
+        progressBarStatus,
+        newFmInfo,
+        setProgressInterval,
+        clearProgressInterval,
+    }
+})

src/stores/useWidgetStore.ts

@@ -0,0 +1,424 @@
+import { computed, markRaw, ref, toRaw, watch } from 'vue'
+import { defineStore } from 'pinia'
+import type { WidgetItem } from '@/types/grid'
+import { globalNotify } from '@/composables/notification'
+import { ElMessageBox } from 'element-plus'
+import UartAtCommand from '@/views/widgets/uartAtCommand.vue'
+import WidgetLoop from '@/views/widgets/widgetLoop.vue'
+import textDataViewer from '@/views/text-data-viewer/textDataViewer.vue'
+
+const componentMap: { [key: string]: any } = {
+  WidgetLoop,
+  textDataViewer,
+  UartAtCommand
+}
+
+const getComponentName = (component: any): string | null => {
+  const rawComponent = toRaw(component)
+  for (const name in componentMap) {
+    if (componentMap[name] === rawComponent) {
+      return name
+    }
+  }
+  return null
+}
+
+const getDefaultLayout = (): WidgetItem[] => [
+  {
+    x: 0,
+    y: 0,
+    w: 10,
+    h: 10,
+    i: 0,
+    name: 'Widget A',
+    static: false,
+    widget: markRaw(WidgetLoop),
+    widgetProps: [
+      {
+        id: 1,
+        componentType: markRaw(UartAtCommand),
+        props: { label: 'Device ID', command: 'AT+ID?', response: 'ID:xxxx' }
+      },
+      {
+        id: 2,
+        componentType: markRaw(UartAtCommand),
+        props: { label: 'Version', command: 'AT+VER?', response: 'V1.0.0' }
+      },
+      {
+        id: 3,
+        componentType: markRaw(UartAtCommand),
+        props: { label: 'Reset', command: 'AT+RESET', response: 'OK' }
+      }
+    ]
+  },
+  {
+    x: 10,
+    y: 0,
+    w: 10,
+    h: 10,
+    i: 1,
+    name: 'Widget B',
+    static: false,
+    widget: markRaw(WidgetLoop),
+    widgetProps: [
+      {
+        id: 1,
+        componentType: markRaw(UartAtCommand),
+        props: {
+          label: 'Scan WiFi',
+          command: 'AT+WSCANasdfasdfasdf',
+          response: 'SCAN OKasd fsdaf asdf asdf asdf asdf '
+        }
+      },
+      {
+        id: 2,
+        componentType: markRaw(UartAtCommand),
+        props: {
+          label: 'Connect WiFi',
+          command: 'AT+WCONN=ssid,pwd',
+          response: 'CONN OK'
+        }
+      }
+    ]
+  },
+  {
+    x: 0,
+    y: 10,
+    w: 10,
+    h: 10,
+    i: 2,
+    name: 'Widget C',
+    static: false,
+    widget: markRaw(WidgetLoop),
+    widgetProps: [
+      {
+        id: 1,
+        componentType: markRaw(UartAtCommand),
+        props: {
+          label: 'Ping Test',
+          command: 'AT+PING=google.com',
+          response: 'PING OK'
+        }
+      }
+    ]
+  },
+  {
+    x: 10,
+    y: 10,
+    w: 10,
+    h: 10,
+    i: 3,
+    name: 'Widget D',
+    static: false,
+    widget: markRaw(textDataViewer),
+    widgetProps: []
+  }
+]
+
+const throttle = (fn: Function, wait: number) => {
+  let inThrottle: boolean, lastFn: number, lastTime: number
+  return function (this: any, ...args: any[]) {
+    const context = this
+    if (!inThrottle) {
+      fn.apply(context, args)
+      lastTime = Date.now()
+      inThrottle = true
+    } else {
+      clearTimeout(lastFn)
+      lastFn = window.setTimeout(() => {
+        if (Date.now() - lastTime >= wait) {
+          fn.apply(context, args)
+          lastTime = Date.now()
+        }
+      }, Math.max(wait - (Date.now() - lastTime), 0))
+    }
+  }
+}
+
+export const useWidgetStore = defineStore('widget', () => {
+  const layout = ref<WidgetItem[]>(getDefaultLayout())
+
+  const editCell = ref(false)
+  const editGrid = ref(false)
+  const showOptions = ref(true)
+
+  const isUartViewAdded = computed(() =>
+    layout.value.some((item) => toRaw(item.widget) === textDataViewer)
+  )
+
+  watch(
+    () => editGrid.value,
+    (newValue) => {
+      if (newValue) {
+        editCell.value = false
+      }
+    }
+  )
+
+  watch(
+    () => editCell.value,
+    (newValue) => {
+      if (newValue) {
+        editGrid.value = false
+      }
+    }
+  )
+
+  const getNextId = (): number => {
+    const numericIds = layout.value.map((item) => Number(item.i)).filter((id) => !isNaN(id))
+    if (numericIds.length === 0) {
+      return 0
+    }
+    return Math.max(...numericIds) + 1
+  }
+
+  const addLoopWidget = () => {
+    const nextId = getNextId()
+    let y = 0
+    if (layout.value.length > 0) {
+      y = Math.max(...layout.value.map((item) => item.y + item.h))
+    }
+    const newWidget: WidgetItem = {
+      x: 0,
+      y: y,
+      w: 10,
+      h: 5,
+      i: nextId,
+      name: `New Loop Widget`,
+      static: false,
+      widget: markRaw(WidgetLoop),
+      widgetProps: []
+    }
+    layout.value.push(newWidget)
+  }
+
+  const addUartViewWidget = () => {
+    if (isUartViewAdded.value) {
+      globalNotify('UART View Widget can only be added once.', 'warning')
+      return
+    }
+
+    const nextId = getNextId()
+    let y = 0
+    if (layout.value.length > 0) {
+      y = Math.max(...layout.value.map((item) => item.y + item.h))
+    }
+
+    const newWidget: WidgetItem = {
+      x: 0,
+      y: y,
+      w: 10,
+      h: 10,
+      i: nextId,
+      name: 'UART Data Viewer',
+      static: false,
+      widget: markRaw(textDataViewer),
+      widgetProps: []
+    }
+    layout.value.push(newWidget)
+  }
+
+  const deleteWidget = (index: number) => {
+    layout.value.splice(index, 1)
+  }
+
+  const resetToDefault = () => {
+    ElMessageBox.confirm(
+      'This will reset your layout to the default settings. Are you sure?',
+      'Warning',
+      {
+        confirmButtonText: 'OK',
+        cancelButtonText: 'Cancel',
+        type: 'warning'
+      }
+    )
+      .then(() => {
+        layout.value = getDefaultLayout()
+        globalNotify('Layout reset to default.', 'success')
+      })
+      .catch(() => {
+        globalNotify('Layout reset cancelled.', 'info')
+      })
+  }
+
+  const exportSettings = () => {
+    try {
+      const layoutToSave = toRaw(layout.value).map((item) => {
+        const rawItem = toRaw(item)
+        return {
+          ...rawItem,
+          widget: getComponentName(rawItem.widget),
+          widgetProps: rawItem.widgetProps?.map((prop: any) => {
+            const rawProp = toRaw(prop)
+            return {
+              ...rawProp,
+              componentType: getComponentName(rawProp.componentType)
+            }
+          })
+        }
+      })
+
+      const dataStr = JSON.stringify(layoutToSave, null, 2)
+      const dataUri = 'data:application/json;charset=utf-8,' + encodeURIComponent(dataStr)
+
+      const exportFileDefaultName = 'at-command-settings.json'
+
+      const linkElement = document.createElement('a')
+      linkElement.setAttribute('href', dataUri)
+      linkElement.setAttribute('download', exportFileDefaultName)
+      linkElement.click()
+      globalNotify('Settings exported successfully.', 'success')
+    } catch (error) {
+      console.error('Failed to export settings:', error)
+      globalNotify('Failed to export settings.', 'error')
+    }
+  }
+
+  const importSettings = () => {
+    const input = document.createElement('input')
+    input.type = 'file'
+    input.accept = '.json'
+    input.onchange = (e) => {
+      const file = (e.target as HTMLInputElement).files?.[0]
+      if (!file) return
+
+      const reader = new FileReader()
+      reader.onload = (event) => {
+        try {
+          const fileContent = event.target?.result as string
+          const parsedLayout = JSON.parse(fileContent)
+
+          // Basic validation
+          if (!Array.isArray(parsedLayout)) {
+            throw new Error('Invalid format: expected an array of widgets.')
+          }
+
+          const newLayout = parsedLayout
+            .map((item: any) => {
+              if (item.widget && componentMap[item.widget]) {
+                item.widget = markRaw(componentMap[item.widget])
+              } else {
+                console.warn(`Unknown widget type "${item.widget}" during import. Skipping item.`)
+                return null
+              }
+
+              if (item.widgetProps) {
+                item.widgetProps.forEach((prop: any) => {
+                  if (prop.componentType && componentMap[prop.componentType]) {
+                    prop.componentType = markRaw(componentMap[prop.componentType])
+                  } else if (prop.componentType) {
+                    console.warn(
+                      `Unknown componentType "${prop.componentType}" for widget "${item.name}". It will be ignored.`
+                    )
+                    prop.componentType = null
+                  }
+                })
+                item.widgetProps = item.widgetProps.filter((prop: any) => prop.componentType)
+              }
+              return item
+            })
+            .filter(Boolean) // remove null items
+
+          layout.value = newLayout
+          globalNotify('Settings imported successfully.', 'success')
+        } catch (error: any) {
+          console.error('Failed to import settings:', error)
+          globalNotify(`Failed to import settings: ${error.message}`, 'error')
+        }
+      }
+      reader.readAsText(file)
+    }
+    input.click()
+  }
+
+  const saveLayoutToLocalStorage = () => {
+    try {
+      const layoutToSave = toRaw(layout.value).map((item) => {
+        const rawItem = toRaw(item)
+        return {
+          ...rawItem,
+          widget: getComponentName(rawItem.widget),
+          widgetProps: rawItem.widgetProps?.map((prop: any) => {
+            const rawProp = toRaw(prop)
+            return {
+              ...rawProp,
+              componentType: getComponentName(rawProp.componentType)
+            }
+          })
+        }
+      })
+      localStorage.setItem('at-command-layout', JSON.stringify(layoutToSave))
+    } catch (error) {
+      console.error('Failed to save layout to localStorage:', error)
+    }
+  }
+
+  const loadLayoutFromLocalStorage = () => {
+    const savedLayoutJSON = localStorage.getItem('at-command-layout')
+    if (!savedLayoutJSON) return
+
+    try {
+      const parsedLayout = JSON.parse(savedLayoutJSON)
+
+      if (!Array.isArray(parsedLayout)) {
+        throw new Error('Invalid format in localStorage: expected an array of widgets.')
+      }
+
+      const newLayout = parsedLayout
+        .map((item: any) => {
+          if (item.widget && componentMap[item.widget]) {
+            item.widget = markRaw(componentMap[item.widget])
+          } else {
+            console.warn(`Unknown widget type "${item.widget}" from localStorage. Skipping item.`)
+            return null
+          }
+
+          if (item.widgetProps) {
+            item.widgetProps.forEach((prop: any) => {
+              if (prop.componentType && componentMap[prop.componentType]) {
+                prop.componentType = markRaw(componentMap[prop.componentType])
+              } else if (prop.componentType) {
+                console.warn(
+                  `Unknown componentType "${prop.componentType}" for widget "${item.name}" from localStorage. It will be ignored.`
+                )
+                prop.componentType = null
+              }
+            })
+            item.widgetProps = item.widgetProps.filter((prop: any) => prop.componentType)
+          }
+          return item
+        })
+        .filter(Boolean) // remove null items
+
+      layout.value = newLayout
+      globalNotify('Settings restored from last session.', 'success')
+    } catch (error: any) {
+      console.error('Failed to load layout from localStorage:', error)
+      globalNotify(`Failed to load settings from localStorage: ${error.message}`, 'error')
+      localStorage.removeItem('at-command-layout')
+    }
+  }
+
+  watch(
+    layout,
+    throttle(() => saveLayoutToLocalStorage(), 1000),
+    { deep: true }
+  )
+
+  loadLayoutFromLocalStorage()
+
+  return {
+    layout,
+    editGrid,
+    editCell,
+    showOptions,
+    isUartViewAdded,
+    addLoopWidget,
+    addUartViewWidget,
+    deleteWidget,
+    resetToDefault,
+    exportSettings,
+    importSettings,
+    getNextId
+  }
+})

src/types/grid.ts

@@ -0,0 +1,26 @@
+import type { Component } from 'vue'
+
+export interface UartCommandData {
+  command: string
+  label: string
+  response: string
+}
+
+export interface DraggableComponent<T = Record<string, any>> {
+  id: number
+  componentType: Component | string
+  props: T
+}
+
+export interface WidgetItem {
+  x: number
+  y: number
+  w: number
+  h: number
+  i: number
+  name: string
+  static: boolean
+  widget: Component | string
+  widgetIconName?: string
+  widgetProps: DraggableComponent[]
+}

src/views/About.vue

@@ -1,22 +1,25 @@
 <script setup lang="ts">
+import {useSystemStore} from "@/stores/useSystemStore";
+import {translate} from "@/locales";
+
 const version = import.meta.env.VITE_APP_GIT_TAG || "v0.0.0";
 const compileTime = import.meta.env.VITE_APP_LAST_COMMIT || "1970-00-00";
+const sysStore = useSystemStore();
 </script>

 <template>
   <div class="text-layout">
     <el-divider></el-divider>
-    <el-divider>关于</el-divider>
+    <el-divider>{{ translate('page.about') }}</el-divider>
     <el-divider></el-divider>
     <el-collapse>
-      <el-collapse-item title="关于网页版上位机">
+      <el-collapse-item :title="translate('aboutWebHost')">
         <el-descriptions border :column="1" class="mt-5 description-style">
-          <el-descriptions-item label="版本">{{ version }}</el-descriptions-item>
-          <el-descriptions-item label="发布时间">{{ compileTime }}</el-descriptions-item>
-          <el-descriptions-item label="许可证">MIT</el-descriptions-item>
+          <el-descriptions-item :label="translate('version')">{{ version }}</el-descriptions-item>
+          <el-descriptions-item :label="translate('releaseTime')">{{ compileTime }}</el-descriptions-item>
         </el-descriptions>

-        <el-descriptions title="鸣谢" border :column="1" class="mt-5 description-style">
+        <el-descriptions :title="translate('credit')" border :column="1" class="mt-5 description-style">
           <el-descriptions-item label="vuejs"><a target="_blank" href="https://github.com/vuejs/vue/blob/main/LICENSE">MIT</a>
           </el-descriptions-item>
           <el-descriptions-item label="typescript"><a
@@ -40,13 +43,15 @@ const compileTime = import.meta.env.VITE_APP_LAST_COMMIT || "1970-00-00";
           </el-descriptions-item>
         </el-descriptions>
       </el-collapse-item>
-      <el-collapse-item title="关于下位机">
+      <el-collapse-item :title="translate('aboutDebugger')">
         <el-descriptions border :column="1" class="mt-5 description-style">
-          <el-descriptions-item label="官网"><a target="_blank" href="https://yunsi.studio/wireless-proxy">允斯工作室</a></el-descriptions-item>
-          <el-descriptions-item label="版本">-</el-descriptions-item>
+          <el-descriptions-item :label="translate('officialWebsite')"><a target="_blank" href="https://yunsi.studio/wireless-debugger">https://yunsi.studio/wireless-debugger</a></el-descriptions-item>
+          <el-descriptions-item :label="translate('version')">{{ sysStore.curFmInfo.ver }}</el-descriptions-item>
+          <el-descriptions-item :label="translate('releaseTime')">{{ sysStore.curFmInfo.date }}</el-descriptions-item>
+          <el-descriptions-item :label="translate('serialNumber')">{{ sysStore.sysInfo.sn }}</el-descriptions-item>
         </el-descriptions>

-        <el-descriptions title="鸣谢" border :column="1" class="mt-5 description-style">
+        <el-descriptions :title="translate('credit')" border :column="1" class="mt-5 description-style">
           <el-descriptions-item label="windowsair"><a target="_blank" href="https://github.com/windowsair/wireless-esp8266-dap">wireless-esp8266-dap</a>
           </el-descriptions-item>
         </el-descriptions>
@@ -54,22 +59,22 @@ const compileTime = import.meta.env.VITE_APP_LAST_COMMIT || "1970-00-00";
     </el-collapse>


-    <el-descriptions title="作者：空空(kerms)" border :column="1" class="mt-5 description-style">
-      <el-descriptions-item label="官网"><a target="_blank" href="https://yunsi.studio/">允斯工作室（https://yunsi.studio/）</a></el-descriptions-item>
+    <el-descriptions :title="translate('author') + ' :空空(kerms)'" border :column="1" class="mt-5 description-style">
+      <el-descriptions-item :label="translate('officialWebsite')"><a target="_blank" href="https://yunsi.studio/">https://yunsi.studio/</a></el-descriptions-item>
       <el-descriptions-item label="github"><a target="_blank" href="https://github.com/kerms">https://github.com/kerms</a>
       </el-descriptions-item>
-      <el-descriptions-item label="邮箱">kerms@niazo.org</el-descriptions-item>
+      <el-descriptions-item :label="translate('email')">kerms@niazo.org</el-descriptions-item>
       <el-descriptions-item label="BiliBili"><a target="_blank" href="https://space.bilibili.com/3461571571353885">3461571571353885</a>
       </el-descriptions-item>
-      <el-descriptions-item label="QQ群">642246000</el-descriptions-item>
-      <el-descriptions-item label="备注">欢迎大家来打扰啊～</el-descriptions-item>
+      <el-descriptions-item :label="translate('TencentQQGroup')">642246000</el-descriptions-item>
+      <el-descriptions-item :label="translate('note')">{{ translate('welcomeMessage') }}</el-descriptions-item>
     </el-descriptions>
   </div>
   <el-divider></el-divider>

 </template>

-<style scoped>
+<style scoped lang="postcss">
 .description-style :deep(.el-descriptions__label) {
   @apply w-32
 }

src/views/Feedback.vue

@@ -2,12 +2,13 @@

   <div class="text-layout">
     <el-divider></el-divider>
-    <el-divider>反馈</el-divider>
+    <el-divider>{{ translate('page.feedback') }}</el-divider>
     <el-divider></el-divider>

-    <el-descriptions title="反馈/建议/需要新功能" border :column="1">
-      <el-descriptions-item label="QQ群">642246000</el-descriptions-item>
-      <el-descriptions-item label="作者邮箱">kerms@niazo.org</el-descriptions-item>
+    <el-descriptions :title="translate('page.feedback') + '/' + translate('suggestion') + '/' + translate('feature')" border :column="1">
+      <el-descriptions-item :label="translate('TencentQQGroup')">642246000</el-descriptions-item>
+      <el-descriptions-item :label="translate('authorEmail')">kerms@niazo.org</el-descriptions-item>
+<!--  TODO: add discord + BiliBili / instagram ?  -->
     </el-descriptions>

   </div>
@@ -16,5 +17,5 @@


 <script setup lang="ts">
-
+import {translate} from "@/locales";
 </script>

src/views/Uart.vue

@@ -1,9 +1,480 @@
+<template>
+  <div class="button-m-0 messages-container flex flex-grow overflow-hidden" :class="{'flex-col': store.winLayoutMode ==='col'}">
+    <div v-show="store.winLeft.show" ref="win1Ref" class="bg-gray-50 flex-shrink-0 overflow-auto"
+         :class="{
+      'max-w-60': store.winLayoutMode==='row', 'xl:max-w-80': store.winLayoutMode==='row',
+      'min-w-60': store.winLayoutMode==='row', 'xl:min-w-80': store.winLayoutMode==='row'
+    }"
+    >
+      <text-data-config></text-data-config>
+    </div>
+
+    <div v-show="store.winLeft.show && (winDataView.show || store.winRight.show)" ref="firstWinResizeRef"></div>
+
+    <div v-show="winDataView.show" class="flex flex-col flex-grow overflow-hidden p-2">
+      <textDataViewer :showDataConfig="store.winLeft.show"></textDataViewer>
+    </div>
+
+    <div v-show="winDataView.show && store.winRight.show" ref="thirdWinResizeRef"></div>
+
+    <div v-show="store.winRight.show" ref="win2Ref" :class="{
+      'max-w-80': store.winLayoutMode==='row', 'xl:max-w-96': store.winLayoutMode==='row',
+      'min-w-80': store.winLayoutMode==='row', 'xl:min-w-96': store.winLayoutMode==='row'
+    }"
+         class="bg-gray-50 flex flex-col flex-shrink-0 min-h-32 overflow-auto p-2">
+      <TextDataMacro @winSizeRefresh="handleWinSizeRefresh"></TextDataMacro>
+    </div>
+  </div>
+
+  <teleport to="#page-spec-slot">
+    <div>
+      <el-popover
+          placement="bottom"
+          trigger="click"
+          :hide-after="0"
+          transition="none"
+      >
+        <div class="button-m-0 flex flex-col space-y-2">
+          <div class="custom-style flex justify-center">
+            <el-segmented v-model="store.winLayoutMode" :options="layoutOptions" size="small"/>
+          </div>
+          <el-checkbox v-model="store.winAutoLayout" border size="small"
+                       :disabled="store.winLayoutMode==='col'">
+            {{ $t('uart.responsive') }}
+          </el-checkbox>
+          <el-checkbox v-model="store.winLeft.show" border size="small" :disabled="store.winAutoLayout">
+            {{ $t("uart.configPannel") }}
+          </el-checkbox>
+          <el-checkbox v-model="winDataView.show" border size="small" :disabled="store.winAutoLayout">
+            {{ $t('uart.displayPannel') }}
+          </el-checkbox>
+          <el-checkbox v-model="store.winRight.show" border size="small" :disabled="store.winAutoLayout">
+            {{ $t('uart.macroPannel') }}
+          </el-checkbox>
+        </div>
+
+        <template #reference>
+          <el-button class="min-h-full" type="primary" :size="layoutConf.isMedium ? 'small' : 'default'">
+            {{ $t('uart.layout') }}
+          </el-button>
+        </template>
+      </el-popover>
+    </div>
+    <div class="mx-1"></div>
+  </teleport>
+</template>
+
 <script setup lang="ts">
+import {computed, onMounted, onUnmounted, reactive, type Ref, ref, type UnwrapRef, watch} from "vue";
+import {breakpointsTailwind, useBreakpoints} from '@vueuse/core'
+import {useDataViewerStore} from '@/stores/dataViewerStore';
+import * as api from '@/api';
+import {ControlEvent} from '@/api';
+import {
+  type IUartMsgBaud,
+  type IUartMsgConfig,
+  type IUartMsgNum,
+  uart_get_baud,
+  uart_get_config,
+  uart_get_default_num,
+  WtUartCmd
+} from '@/api/apiUart';
+
+/* TODO: use https://antoniandre.github.io/splitpanes/ */
+
+import { type ApiBinaryMsg } from '@/api/binDataDef'
+import * as df from '@/api/apiDataFlow'
+import textDataViewer from '@/views/text-data-viewer/textDataViewer.vue'
+import textDataConfig from '@/views/text-data-viewer/textDataConfig.vue'
+import { registerModule } from '@/router/msgRouter'
+import { isDevMode } from '@/composables/buildMode'
+import { useWsStore } from '@/stores/websocket'
+import { useUartStore } from '@/stores/useUartStore'
+import TextDataMacro from '@/views/text-data-viewer/textDataMacro.vue'
+import { translate } from '@/locales'
+import { useUartModule } from '@/composables/useUartModule'
+
+
+const store = useDataViewerStore()
+const wsStore = useWsStore()
+const uartStore = useUartStore()
+
+const firstWinResizeRef = ref(document.body);
+const thirdWinResizeRef = ref(document.body);
+const win1Ref = ref(document.body);
+const win2Ref = ref(document.body);
+
+const breakpoints = useBreakpoints(breakpointsTailwind)
+
+const layoutConf = reactive({
+  isSmall: breakpoints.smaller("sm"),
+  isMedium: breakpoints.smaller("lg"),
+});
+
+const layoutOptions = computed(() => [{
+  label: translate("uart.landscape"),
+  value: 'row'
+}, {
+  label: translate("uart.portrait"),
+  value: 'col'
+}]);
+
+interface WinProperty {
+  show: boolean;
+  width: string;
+  height: string;
+  borderSize: number;
+}
+
+
+const winDataView = reactive({
+  show: true,
+})
+
+const ctx = reactive({
+  curResizeTarget: "none",
+  curHeightOffset: 0,
+});
+
+function updateCursor(i: HTMLElement) {
+  if (store.winLayoutMode === 'row') {
+    i.style.cursor = "col-resize";
+  } else {
+    i.style.cursor = "row-resize";
+  }
+}
+
+function updateWin(r: Ref<HTMLElement>, p: UnwrapRef<WinProperty>) {
+  if (store.winLayoutMode === 'row') {
+    r.value.style.minHeight = "";
+    r.value.style.maxHeight = ""
+    if (winDataView.show) {
+      r.value.style.minWidth = p.width;
+      r.value.style.maxWidth = p.width;
+    }
+  } else {
+    r.value.style.minWidth = ""
+    r.value.style.maxWidth = ""
+    if (winDataView.show) {
+      r.value.style.minHeight = p.height;
+      r.value.style.maxHeight = p.height;
+    }
+  }
+}
+
+function updateCursors() {
+  updateCursor(firstWinResizeRef.value);
+  updateCursor(thirdWinResizeRef.value);
+}
+
+function updateResizer() {
+  updateCursors();
+  updateWin(win1Ref, store.winLeft);
+  updateWin(win2Ref, store.winRight);
+}
+
+function mouseResize(e: MouseEvent) {
+  const curTarget = e.target as HTMLElement
+
+  if (store.winLayoutMode === 'row') {
+    let f = e.clientX;
+    if (ctx.curResizeTarget === "first") {
+      win1Ref.value.style.minWidth = f + "px";
+      win1Ref.value.style.maxWidth = f + "px";
+    } else {
+      if (isDevMode()) {
+        console.log("Row clientX", e.clientX, "clientY", e.clientY,
+            "layerX", e.layerX, "layerY", e.layerY, "offsetX", e.offsetX, "offsetY", e.offsetY,
+            "pageX", e.pageX, "pageY", e.pageY, win2Ref.value.clientHeight);
+      }
+      win2Ref.value.style.minWidth = document.body.scrollWidth - f - store.winRight.borderSize + "px";
+      win2Ref.value.style.maxWidth = document.body.scrollWidth - f - store.winRight.borderSize + "px";
+    }
+  } else {
+    /* col mode */
+    let f = e.clientY;
+    if (ctx.curResizeTarget === "first") {
+      win1Ref.value.style.minHeight = f - ctx.curHeightOffset + "px";
+      win1Ref.value.style.maxHeight = f - ctx.curHeightOffset + "px";
+    } else {
+      if (isDevMode()) {
+        console.log("Col clientX", e.clientX, "clientY", e.clientY,
+            "layerX", e.layerX, "layerY", e.layerY, "offsetX", e.offsetX, "offsetY", e.offsetY,
+            "pageX", e.pageX, "pageY", e.pageY, curTarget.offsetWidth, ctx.curHeightOffset);
+      }
+      win2Ref.value.style.minHeight = ctx.curHeightOffset - f + "px";
+      win2Ref.value.style.maxHeight = ctx.curHeightOffset - f + "px";
+    }
+  }
+}
+
+function touchResize(e: TouchEvent) {
+  let t = e.touches[0];
+  let f: number;
+
+  if (store.winLayoutMode === 'row') {
+    f = t.clientX;
+    if (ctx.curResizeTarget === "first") {
+      win1Ref.value.style.minWidth = f + "px";
+      win1Ref.value.style.maxWidth = f + "px";
+    } else {
+      win2Ref.value.style.minWidth = document.body.scrollWidth - f - store.winRight.borderSize + "px";
+      win2Ref.value.style.maxWidth = document.body.scrollWidth - f - store.winRight.borderSize + "px";
+    }
+  } else {
+    /* column layout mode */
+    f = t.clientY;
+    if (ctx.curResizeTarget === "first") {
+      /* setting window */
+      win1Ref.value.style.minHeight = f - ctx.curHeightOffset + "px";
+      win1Ref.value.style.maxHeight = f - ctx.curHeightOffset + "px";
+    } else {
+      /* quick access window */
+      win2Ref.value.style.minHeight = document.body.scrollHeight - f - store.winRight.borderSize + "px";
+      win2Ref.value.style.maxHeight = document.body.scrollHeight - f - store.winRight.borderSize + "px";
+    }
+  }
+}
+
+function startResize(event: Event) {
+  // Normalize touch and mouse events
+  if (event.type.includes('touch')) {
+    ctx.curHeightOffset = (event as TouchEvent).touches[0].clientY;
+  } else {
+    ctx.curHeightOffset = (event as MouseEvent).clientY;
+  }
+
+  const divRef = event.target;
+
+  if (divRef === firstWinResizeRef.value) {
+    ctx.curResizeTarget = "first";
+    ctx.curHeightOffset -= win1Ref.value.clientHeight;
+    // ctx.curOffset = win1Ref.value.clientHeight;
+  } else if (divRef === thirdWinResizeRef.value) {
+    ctx.curResizeTarget = "third";
+    ctx.curHeightOffset += win2Ref.value.clientHeight;
+  }
+
+  win1Ref.value.style.transition = 'initial';
+  win2Ref.value.style.transition = 'initial';
+  document.addEventListener("mousemove", mouseResize, false);
+  document.addEventListener("touchmove", touchResize, false);
+  store.winAutoLayout = false;
+}
+
+function stopResize() {
+  if (win1Ref.value) {
+    win1Ref.value.style.transition = '';
+    if (store.winLayoutMode === "row") {
+      store.winLeft.width = win1Ref.value.style.minWidth;
+    } else {
+      store.winLeft.height = win1Ref.value.style.minHeight;
+    }
+  }
+  if (win2Ref.value) {
+    win2Ref.value.style.transition = '';
+    if (store.winLayoutMode === "row") {
+      store.winRight.width = win2Ref.value.style.minWidth;
+    } else {
+      store.winRight.height = win2Ref.value.style.minHeight;
+    }
+  }
+  document.body.style.cursor = '';
+  document.removeEventListener("mousemove", mouseResize, false);
+  document.removeEventListener("touchmove", touchResize, false);
+}
+
+watch(() => store.winLayoutMode, (value) => {
+  updateResizer();
+  if (value === "col") {
+    store.winAutoLayout = false;
+  }
+});
+
+watch([
+  () => layoutConf.isSmall,
+  () => store.winAutoLayout
+], (value) => {
+  if (store.winAutoLayout) {
+    store.winRight.show = !value[0];
+    win1Ref.value.style.minWidth = "";
+    win1Ref.value.style.maxWidth = "";
+  }
+}, {
+  immediate: true,
+});
+
+watch([
+  () => layoutConf.isMedium,
+  () => store.winAutoLayout
+], (value) => {
+  if (store.winAutoLayout) {
+    store.winLeft.show = !value[0];
+    win1Ref.value.style.minWidth = "";
+    win1Ref.value.style.maxWidth = "";
+    win2Ref.value.style.minWidth = "";
+    win2Ref.value.style.maxWidth = "";
+    winDataView.show = true;
+  }
+}, {
+  immediate: true
+});
+
+watch(() => winDataView.show, value => {
+  if (!value) {
+    win1Ref.value.style.minWidth = "";
+    win1Ref.value.style.maxWidth = "";
+    win1Ref.value.style.maxHeight = "";
+    win1Ref.value.style.maxHeight = "";
+
+    win2Ref.value.style.minWidth = "";
+    win2Ref.value.style.maxWidth = "";
+    win2Ref.value.style.maxHeight = "";
+    win2Ref.value.style.maxHeight = "";
+  }
+});
+
+watch(() => store.winRight.show, value => {
+  if (!value && !winDataView.show) {
+    win1Ref.value.style.maxHeight = "";
+    win1Ref.value.style.maxHeight = "";
+    win1Ref.value.style.maxWidth = "";
+    win1Ref.value.style.maxWidth = "";
+  }
+});
+
+const onUartJsonMsg = (msg: api.ApiJsonMsg) => {
+  switch (msg.cmd as WtUartCmd) {
+    case WtUartCmd.GET_BAUD:
+    case WtUartCmd.SET_BAUD:{
+      const uartMsg = msg as IUartMsgBaud;
+      if (uartMsg.baud) {
+        store.setUartBaud(uartMsg.baud)
+      }
+      break;
+    }
+    case WtUartCmd.GET_CONFIG:
+    case WtUartCmd.SET_CONFIG:{
+      const uartMsg = msg as IUartMsgConfig;
+      store.uartConfig.data_bits = uartMsg.data_bits;
+      store.uartConfig.stop_bits = uartMsg.stop_bits;
+      store.uartConfig.parity = uartMsg.parity;
+      break;
+    }
+    case WtUartCmd.GET_DEFAULT_NUM:
+      uartStore.uartNum = (msg as IUartMsgNum).num;
+      uart_get_baud(uartStore.uartNum);
+      uart_get_config(uartStore.uartNum);
+      break;
+    default:
+      if (isDevMode()) {
+        console.log("uart not treated", msg);
+      }
+      break
+  }
+};
+
+const onUartBinaryMsg = (msg: ApiBinaryMsg) => {
+  if (isDevMode()) {
+    console.log("uart", msg);
+  }
+
+  store.addSegment(new Uint8Array(msg.payload), true);
+};
+
+const onClientCtrl = (msg: api.ControlMsg) => {
+  if (msg.type !== api.ControlMsgType.WS_EVENT) {
+    return
+  }
+
+  if (msg.data === ControlEvent.DISCONNECTED) {
+    store.acceptIncomingData = false;
+  } else if (msg.data === ControlEvent.CONNECTED) {
+    updateUartData();
+    store.acceptIncomingData = true;
+  }
+};
+
+function updateUartData() {
+  /* TODO: hard code for the moment, 0 is UART instance id (can be changed in the future) */
+  uart_get_default_num();
+  df.wt_data_flow_attach_cur_to_sender(0);
+}
+
+function handleWinSizeRefresh() {
+  if (!store.winAutoLayout) {
+    if (win1Ref.value) {
+      if (store.winLayoutMode === "row") {
+        win1Ref.value.style.minWidth = store.winLeft.width;
+      } else {
+        win1Ref.value.style.minHeight = store.winLeft.height;
+        win1Ref.value.style.maxHeight = store.winRight.height;
+      }
+    }
+    if (win2Ref.value) {
+      if (store.winLayoutMode === "row") {
+        win2Ref.value.style.minWidth = store.winRight.width;
+      } else {
+        win2Ref.value.style.minHeight = store.winRight.height;
+        win2Ref.value.style.maxHeight = store.winRight.height;
+      }
+    }
+  }
+}
+
+onMounted(() => {
+  useUartModule()
+
+  firstWinResizeRef.value.style.borderWidth = store.winLeft.borderSize + "px";
+  thirdWinResizeRef.value.style.borderWidth = store.winRight.borderSize + "px";
+  updateCursors()
+
+  if (firstWinResizeRef.value) {
+    firstWinResizeRef.value.addEventListener("mousedown", startResize, false);
+    firstWinResizeRef.value.addEventListener("touchstart", startResize, false);
+  }
+  if (thirdWinResizeRef.value) {
+    thirdWinResizeRef.value.addEventListener("mousedown", startResize, false);
+    thirdWinResizeRef.value.addEventListener("touchstart", startResize, false);
+  }
+
+  document.addEventListener("mouseup", stopResize, false);
+  document.addEventListener("touchend", stopResize, false);
+  updateUartData();
+  store.acceptIncomingData = wsStore.state === ControlEvent.CONNECTED;
+  handleWinSizeRefresh()
+});
+
+onUnmounted(() => {
+  if (firstWinResizeRef.value) {
+    firstWinResizeRef.value.removeEventListener("mousedown", startResize, false);
+    firstWinResizeRef.value.removeEventListener("touchstart", startResize, false);
+  }
+
+  if (thirdWinResizeRef.value) {
+    thirdWinResizeRef.value.removeEventListener("mousedown", startResize, false);
+    thirdWinResizeRef.value.removeEventListener("touchstart", startResize, false);
+  }
+
+  document.removeEventListener("mouseup", stopResize, false);
+  document.removeEventListener("touchend", stopResize, false);
+});

 </script>

-<template>
-  <div class="text-layout">
-    <h2 class="page-title opacity-10">尽请期待</h2>
-  </div>
-</template>
+<style scoped>
+.button-m-0 :deep(.el-button + .el-button) {
+  margin-left: 0;
+}
+
+.custom-style .el-segmented {
+  --el-segmented-item-selected-color: var(--el-text-color-primary);
+  --el-segmented-item-selected-bg-color: var(--el-color-primary);
+  --el-border-radius-base: 16px;
+}
+
+.button-m-0 :deep(.el-checkbox) {
+  margin-right: 0;
+}
+
+</style>

src/views/Update.vue

@@ -0,0 +1,108 @@
+<template>
+  <div class="text-layout description-style">
+    <h1 class="page-title">
+      固件更新
+    </h1>
+    <p class="text-center">(需联网)</p>
+    <el-divider></el-divider>
+
+    <el-descriptions title="当前版本" border :column="1">
+      <el-descriptions-item label="硬件版本">{{ sysStore.hwInfo.ver }}</el-descriptions-item>
+      <el-descriptions-item label="固件版本">{{ sysStore.curFmInfo.ver }}</el-descriptions-item>
+      <el-descriptions-item label="固件日期">{{ sysStore.curFmInfo.date }}</el-descriptions-item>
+    </el-descriptions>
+
+    <el-divider></el-divider>
+
+    <el-descriptions title="最新版本" border :column="1">
+      <template #extra>
+        <div class="flex">
+          <el-tooltip placement="top" effect="light">
+            <template #content>
+              <p>2秒延迟后重启</p>
+            </template>
+            <el-button @click="doReboot" type="warning" :disabled="sysStore.rebootInProgress">
+              重启{{ sysStore.rebootInProgress ? '中' : ''}}
+            </el-button>
+          </el-tooltip>
+
+          <el-button @click="doUpdate" type="primary" :disabled="!updateStore.canUpdate">
+            更新
+          </el-button>
+        </div>
+
+      </template>
+      <el-descriptions-item label="固件版本">{{ updateStore.newFmInfo.fm_ver }}</el-descriptions-item>
+      <el-descriptions-item label="更新日期">{{ updateStore.newFmInfo.upd_date }}</el-descriptions-item>
+      <el-descriptions-item label="固件大小">{{ updateStore.newFmInfo.fm_size }}</el-descriptions-item>
+      <el-descriptions-item label="更新进度">
+        <el-alert v-if="updateStore.updateStatus === 'OK'" title="更新已完成，重启后，刷新网页生效" type="success" show-icon :closable="false" />
+        <el-progress v-else :percentage="updateStore.updateProgress" :format="format" :status="updateStore.progressBarStatus"/>
+      </el-descriptions-item>
+      <el-descriptions-item label="更新内容">
+        <pre>{{ updateStore.newFmInfo.upd_note }}</pre>
+      </el-descriptions-item>
+    </el-descriptions>
+
+    <el-divider @click="showHidden = !showHidden">底部</el-divider>
+    <div v-if="showHidden">
+      <p>直链更新（仅用于测试，请勿使用）</p>
+      <el-input placeholder="https://..." v-model="directLinkUpdate"></el-input>
+      <el-button type="primary" @click="doDirectLinkUpdate">更新</el-button>
+    </div>
+
+  </div>
+
+</template>
+
+<script setup lang="ts">
+import {onMounted, onUnmounted, ref} from "vue";
+import {
+  wt_ota_do_update, wt_ota_do_url_update,
+  wt_ota_get_progress, wt_ota_get_update_info,
+} from "@/api/apiOTA";
+import {useSystemStore} from "@/stores/useSystemStore";
+import {wt_sys_reboot} from "@/api/apiSystem";
+import {useUpdateStore} from "@/stores/useUpdateStore";
+
+const sysStore = useSystemStore();
+const updateStore = useUpdateStore();
+const showHidden = ref(false)
+
+const directLinkUpdate = ref("");
+
+const format = (percentage: number) => (percentage.toFixed(2) + '%')
+
+function doUpdate() {
+  wt_ota_do_update();
+  updateStore.setProgressInterval();
+}
+
+function doReboot() {
+  wt_sys_reboot();
+}
+
+function doDirectLinkUpdate() {
+  if (directLinkUpdate.value.length === 0) {
+    return;
+  }
+  updateStore.setProgressInterval();
+  wt_ota_do_url_update(directLinkUpdate.value);
+}
+
+onMounted(() => {
+  wt_ota_get_update_info();
+  wt_ota_get_progress();
+});
+
+onUnmounted(() => {
+  updateStore.clearProgressInterval();
+});
+
+</script>
+
+<style scoped>
+.description-style :deep(.el-descriptions__label) {
+  @apply w-32
+}
+</style>

src/views/WidgetPannel.vue

@@ -0,0 +1,345 @@
+<template>
+  <div class="flex flex-col h-screen">
+    <div v-show="widgetStore.showOptions" class="flex h-32 overflow-y-auto m-2">
+      <div class="flex gap-4">
+        <div class="flex flex-col gap-2 border-r pr-4">
+          <el-checkbox v-model="widgetStore.editGrid" border class="w-full">{{
+            translate('widget.editGrid')
+          }}</el-checkbox>
+          <el-checkbox v-model="widgetStore.editCell" border class="w-full">{{
+            translate('widget.editCell')
+          }}</el-checkbox>
+        </div>
+        <div class="flex flex-col items-center">
+          <div
+            class="w-40 h-24 bg-gray-200 border-2 rounded-md p-2 flex flex-col justify-center items-center text-center cursor-move"
+            draggable="true"
+            @dragstart="dragStart('loop', $event)"
+            @drag="drag"
+            @dragend="dragEnd"
+          >
+            <span class="font-bold">{{ translate('widget.loopWidget') }}</span>
+            <p class="text-xs">{{ translate('widget.loopWidgetDesc') }}</p>
+          </div>
+          <el-button @click="widgetStore.addLoopWidget" size="small" class="w-full mt-1">{{
+            translate('widget.addGrid')
+          }}</el-button>
+        </div>
+        <div class="flex flex-col items-center">
+          <div
+            class="w-40 h-24 bg-gray-200 border-2 rounded-md p-2 flex flex-col justify-center items-center text-center"
+            :class="{
+              'cursor-move': !widgetStore.isUartViewAdded,
+              'cursor-not-allowed opacity-50': widgetStore.isUartViewAdded
+            }"
+            :draggable="!widgetStore.isUartViewAdded"
+            @dragstart="dragStart('uart', $event)"
+            @drag="drag"
+            @dragend="dragEnd"
+          >
+            <span class="font-bold">{{ translate('widget.dataViewer') }}</span>
+            <p class="text-xs">{{ translate('widget.dataViewerDesc') }}</p>
+          </div>
+          <el-button
+            @click="widgetStore.addUartViewWidget"
+            size="small"
+            class="w-full mt-1"
+            :disabled="widgetStore.isUartViewAdded"
+            >{{ translate('widget.addGrid') }}</el-button
+          >
+        </div>
+        <div class="flex flex-col items-start gap-2 border-l pl-4">
+          <div>
+            <el-button @click="widgetStore.exportSettings" size="small">{{
+              translate('widget.exportSettings')
+            }}</el-button>
+          </div>
+          <div>
+            <el-button @click="widgetStore.importSettings" size="small">{{
+              translate('widget.importSettings')
+            }}</el-button>
+          </div>
+          <div>
+            <el-button type="danger" @click="widgetStore.resetToDefault" size="small">{{
+              translate('widget.resetToDefault')
+            }}</el-button>
+          </div>
+        </div>
+      </div>
+    </div>
+    <div ref="gridWrapper" class="flex-1 flex flex-col w-full min-h-0">
+      <div class="flex-1 bg-gray-100 overflow-y-auto min-h-0">
+        <GridLayout
+          ref="gridlayout"
+          v-model:layout="widgetStore.layout"
+          :col-num="20"
+          :row-height="30"
+          :is-draggable="widgetStore.editGrid"
+          :is-resizable="widgetStore.editGrid"
+          :auto-size="false"
+          :compact-type="null"
+          :vertical-compact="false"
+        >
+          <grid-item
+            v-for="(item, index) in widgetStore.layout"
+            :key="item.i"
+            v-bind="item"
+            class="rounded-md flex flex-col text-xs p-1"
+            :class="{
+              'bg-blue-300': String(item.i) !== dropId,
+              'bg-gray-400 opacity-50': String(item.i) === dropId
+            }"
+          >
+            <template v-if="String(item.i) !== dropId">
+              <div class="flex justify-between pb-0.5">
+                <InlineSvg :name="getWidgetIconName(item)" width="20"></InlineSvg>
+                <el-button
+                  v-show="widgetStore.editGrid"
+                  type="danger"
+                  size="small"
+                  class="self-center px-1"
+                  @click="widgetStore.deleteWidget(index)"
+                >
+                  <InlineSvg name="close" width="20"></InlineSvg>
+                </el-button>
+                <div :id="`tp-widget-before-${item.i}`"></div>
+                <div v-if="widgetStore.editGrid" class="w-full">
+                  <el-input
+                    v-model="item.name"
+                    size="small"
+                    :placeholder="translate('widget.gridItemName')"
+                  />
+                </div>
+                <div
+                  v-else-if="item.name"
+                  class="truncate font-bold self-center text-center text-sm w-full"
+                >
+                  {{ item.name }}
+                </div>
+                <p v-else></p>
+                <!-- empty space to align the check tag -->
+                <el-check-tag
+                  v-if="widgetStore.editGrid"
+                  :checked="item.static"
+                  type="danger"
+                  class="self-center px-1"
+                  @click="item.static = !item.static"
+                >
+                  <InlineSvg v-show="item.static" name="lock" width="20"></InlineSvg>
+                  <InlineSvg v-show="!item.static" name="lock_open" width="20"></InlineSvg>
+                </el-check-tag>
+                <div v-show="!widgetStore.editGrid" :id="`tp-widget-${item.i}`"></div>
+              </div>
+
+              <div class="bg-white overflow-y-auto flex flex-col flex-grow">
+                <component
+                  :is="item.widget"
+                  v-model="widgetStore.layout[index]"
+                  :editCell="widgetStore.editCell"
+                />
+              </div>
+            </template>
+            <div v-else class="flex justify-center items-center h-full">
+              <p class="font-bold text-white">{{ translate('widget.dropHere') }}</p>
+            </div>
+          </grid-item>
+        </GridLayout>
+      </div>
+    </div>
+  </div>
+  <teleport to="#nav-right-slot">
+    <ElCheckTag
+      :checked="widgetStore.showOptions"
+      type="primary"
+      @click="widgetStore.showOptions = !widgetStore.showOptions"
+      >{{ translate('widget.editGrid') }}</ElCheckTag
+    >
+  </teleport>
+</template>
+
+<script setup lang="ts">
+import { markRaw, ref, onMounted, onBeforeUnmount } from 'vue'
+import { GridLayout, GridItem } from 'vue-grid-layout-v3'
+import { ElInput, ElCheckbox, ElCheckTag, ElButton } from 'element-plus'
+import UartAtCommand from './widgets/uartAtCommand.vue'
+import WidgetLoop from './widgets/widgetLoop.vue'
+import textDataViewer from '@/views/text-data-viewer/textDataViewer.vue'
+import { useUartModule } from '@/composables/useUartModule'
+import { globalNotify } from '@/composables/notification'
+import { useWidgetStore } from '@/stores/useWidgetStore'
+import type { WidgetItem } from '@/types/grid'
+import { translate } from '@/locales'
+
+const widgetStore = useWidgetStore()
+
+const gridlayout = ref<InstanceType<typeof GridLayout> | null>(null)
+const gridWrapper = ref<HTMLElement | null>(null)
+
+const getWidgetIconName = (item: WidgetItem) => {
+  if (typeof item.widget === 'object' && item.widget !== null && 'widgetIconName' in item.widget) {
+    return (item.widget as any).widgetIconName
+  }
+  return 'default-icon' // or some other default
+}
+
+const throttle = (fn: Function, wait: number) => {
+  let inThrottle: boolean, lastFn: number, lastTime: number
+  return function (this: any, ...args: any[]) {
+    const context = this
+    if (!inThrottle) {
+      fn.apply(context, args)
+      lastTime = Date.now()
+      inThrottle = true
+    } else {
+      clearTimeout(lastFn)
+      lastFn = window.setTimeout(() => {
+        if (Date.now() - lastTime >= wait) {
+          fn.apply(context, args)
+          lastTime = Date.now()
+        }
+      }, Math.max(wait - (Date.now() - lastTime), 0))
+    }
+  }
+}
+
+const mouseAt = { x: -1, y: -1 }
+function syncMousePosition(event: MouseEvent) {
+  mouseAt.x = event.clientX
+  mouseAt.y = event.clientY
+}
+
+onMounted(() => {
+  useUartModule()
+  document.addEventListener('dragover', syncMousePosition)
+})
+
+onBeforeUnmount(() => {
+  document.removeEventListener('dragover', syncMousePosition)
+})
+
+const dropId = 'drop-placeholder'
+const dragging = ref<{ type: string; w: number; h: number } | null>(null)
+
+function dragStart(itemType: string, event: DragEvent) {
+  if (itemType === 'loop') {
+    dragging.value = { type: 'loop', w: 10, h: 5 }
+  } else if (itemType === 'uart') {
+    dragging.value = { type: 'uart', w: 10, h: 10 }
+  }
+  event.dataTransfer?.setData('text/plain', itemType)
+}
+
+const drag = throttle(() => {
+  if (!dragging.value || !gridWrapper.value || !gridlayout.value) return
+
+  const parentRect = gridWrapper.value.getBoundingClientRect()
+  const mouseInGrid =
+    mouseAt.x > parentRect.left &&
+    mouseAt.x < parentRect.right &&
+    mouseAt.y > parentRect.top &&
+    mouseAt.y < parentRect.bottom
+
+  const placeholderIndex = widgetStore.layout.findIndex((item) => String(item.i) === dropId)
+
+  if (mouseInGrid) {
+    const gLayout = gridlayout.value as any
+    const colNum = 20
+    const rowHeight = 30
+    const margin = [10, 10]
+    const scrollContainer = gLayout.$el.parentElement
+    if (!scrollContainer) return
+    const colWidth =
+      (gLayout.$el.offsetWidth -
+        margin[0] * (colNum - 1) -
+        (gLayout.containerPadding?.[0] || margin[0]) * 2) /
+      colNum
+
+    const xInGrid = mouseAt.x - parentRect.left + scrollContainer.scrollLeft
+    const yInGrid = mouseAt.y - parentRect.top + scrollContainer.scrollTop
+
+    let gridX = Math.round(xInGrid / (colWidth + margin[0]) - dragging.value.w / 2)
+    let gridY = Math.round(yInGrid / (rowHeight + margin[1]) - dragging.value.h / 2)
+
+    gridX = Math.max(0, Math.min(gridX, colNum - dragging.value.w))
+    gridY = Math.max(0, gridY)
+
+    if (placeholderIndex === -1) {
+      widgetStore.layout.push({
+        x: gridX,
+        y: gridY,
+        w: dragging.value.w,
+        h: dragging.value.h,
+        i: dropId
+      } as any)
+    } else {
+      widgetStore.layout[placeholderIndex].x = gridX
+      widgetStore.layout[placeholderIndex].y = gridY
+    }
+  } else {
+    if (placeholderIndex !== -1) {
+      widgetStore.layout.splice(placeholderIndex, 1)
+    }
+  }
+}, 50)
+
+function dragEnd() {
+  if (!dragging.value) return
+
+  const parentRect = gridWrapper.value?.getBoundingClientRect()
+
+  const placeholderIndex = widgetStore.layout.findIndex((item) => String(item.i) === dropId)
+
+  if (placeholderIndex === -1) {
+    dragging.value = null
+    return
+  }
+
+  const placeholder = widgetStore.layout[placeholderIndex]
+  const mouseInGrid =
+    parentRect &&
+    mouseAt.x > parentRect.left &&
+    mouseAt.x < parentRect.right &&
+    mouseAt.y > parentRect.top &&
+    mouseAt.y < parentRect.bottom
+
+  if (mouseInGrid) {
+    if (dragging.value.type === 'uart') {
+      const uartViewExists = widgetStore.layout.some(
+        (item) => item.widget === textDataViewer && String(item.i) !== dropId
+      )
+      if (uartViewExists) {
+        globalNotify(translate('widget.uartViewOnce'), 'warning')
+        widgetStore.layout.splice(placeholderIndex, 1) // remove placeholder
+        dragging.value = null
+        return
+      }
+    }
+
+    const newWidget = {
+      x: placeholder.x,
+      y: placeholder.y,
+      w: dragging.value.w,
+      h: dragging.value.h,
+      i: widgetStore.getNextId(),
+      name: dragging.value.type === 'loop' ? 'New Loop Widget' : 'UART Data Viewer',
+      static: false,
+      widget: markRaw(dragging.value.type === 'loop' ? WidgetLoop : textDataViewer),
+      widgetProps: []
+    }
+
+    widgetStore.layout.splice(placeholderIndex, 1, newWidget as any)
+  } else {
+    // Not in grid, just remove placeholder
+    widgetStore.layout.splice(placeholderIndex, 1)
+  }
+
+  dragging.value = null
+}
+</script>
+
+<style scoped>
+:deep(.el-check-tag) {
+  padding: 0;
+}
+</style>
+

src/views/Wifi.vue

@@ -1,17 +1,17 @@
 <template>
   <div class="text-layout">
     <h1 class="page-title">
-      Wi-Fi 配置
+      Wi-Fi {{ translate('wifi.settings') }}
     </h1>
     <el-divider></el-divider>

-    <h2 class="mb-4 text-xl font-bold tracking-tight md:text-2xl lg:text-3xl">连接Wi-Fi</h2>
+    <h2 class="mb-4 text-xl font-bold tracking-tight md:text-2xl lg:text-3xl">{{ translate('wifi.connection') }} Wi-Fi</h2>
     <el-form label-width="auto" ref="formRef" :model="ssidValidateForm" class="m-auto">
       <el-form-item
-          label="Wi-Fi名"
+          label="Wi-Fi"
           prop="wifiSsid"
           :rules="[
-        { required: true, message: '请输入WIFI名'},
+        { required: true, message: translate('wifi.warnWifiName')},
       ]"
       >
         <div class="flex w-full">
@@ -36,7 +36,7 @@
           </div>
         </div>
       </el-form-item>
-      <el-form-item label="密码">
+      <el-form-item :label="translate('wifi.password')">
         <el-input
             v-model="ssidValidateForm.password"
             show-password
@@ -46,40 +46,71 @@
       </el-form-item>
       <div class="mb-2">
         <el-alert type="info" show-icon>
-          如果不是通过透传器的热点连接，更换Wi-Fi将导致此界面与透传器断开连接。
+          {{ translate("wifi.connectInfoHTML")}}
         </el-alert>
       </div>
       <div class="flex justify-center">
-        <el-button @click="onConnectClick" type="primary">连接</el-button>
+        <el-button @click="onConnectClick" type="primary">{{ translate('wifi.connect') }}</el-button>
       </div>
     </el-form>

+    <el-divider></el-divider>
+    <div class="flex items-center">
+      <h5 class="text-md font-bold text-gray-800 w-32">Wi-Fi {{ translate('wifi.mode') }}</h5>
+      <div class="flex shrink-0">
+        <el-tooltip effect="light">
+          <template #content>
+            <div v-html="translate('wifi.modeTipsHtml')"></div>
+          </template>
+          <InlineSvg name="help" class="w-3.5 h-3.5 text-gray-500 cursor-help"></InlineSvg>
+        </el-tooltip>
+      </div>
+      <el-select v-model="wifiMode" :disabled="wsStore.state != ControlEvent.CONNECTED">
+        <el-option
+            v-for="item in wifiModeOptions"
+            :key="item.key"
+            :value="item.key"
+            :label="item.label"
+        />
+      </el-select>
+      <el-button type="primary" @click="wifiChangeMode" :loading="wifiMode_loading">{{ translate('wifi.save') }}</el-button>
+    </div>
+
     <el-divider></el-divider>


     <el-descriptions
-        title="Wi-Fi终端信息"
         :column="1"
         border
         class="description-style"
     >
-      <el-descriptions-item label="asd">
-        <template #label >
-          <div>
-            信号强度
-          </div>
+      <template #title>
+        Wi-Fi {{ translate('wifi.stationInfo') }}
+        <el-tag v-if="!isConnected" type="danger">{{ translate('wifi.disconnected') }}</el-tag>
       </template>
-        <template #default >
-          {{ wifiStaApInfo.rssi }}
+      <template #extra>
+        <el-switch v-model="wifiSta_On" :disabled="!isConnected || !wifiAp_On"
+                   :active-text="translate('wifi.enabled')" :inactive-text="translate('wifi.disabled')" :loading="wifiMode_loading"
+                   :before-change="()=>beforeWifiModeChange('STA')"
+        />
       </template>
-      </el-descriptions-item>
-      <el-descriptions-item span="1">
+      <el-descriptions-item span="4">
         <template #label>
           <div>
-            SSID
+            {{ translate('wifi.signalStrength') }}
           </div>
         </template>
-        {{ wifiStaApInfo.ssid }}
+        <template #default>
+          <p> {{ wifi_rssi_to_percent(wifiStaApInfo.rssi) }} % ({{ wifiStaApInfo.rssi }} dBm)</p>
+        </template>
+      </el-descriptions-item>
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>
+            Wi-Fi(SSID)
+          </div>
+        </template>
+        <p>{{ wifiStaApInfo.ssid }}</p>
       </el-descriptions-item>
 <!--      <el-descriptions-item span="6" >-->
 <!--        <template #label>-->
@@ -87,67 +118,164 @@
 <!--            密码-->
 <!--          </div>-->
 <!--        </template>-->
-<!--        <password-viewer password="asdasdasd"></password-viewer>-->
+<!--        <password-viewer :password="wifiStaApInfo.password"></password-viewer>-->
 <!--      </el-descriptions-item>-->
-      <el-descriptions-item span="4">
-        <template #label>
-          <div>
-            IP
-          </div>
-        </template>
-        {{ wifiStaApInfo.ip }}
-      </el-descriptions-item>
       <el-descriptions-item span="4">
         <template #label>
           <div>
             MAC
           </div>
         </template>
-        {{ wifiStaApInfo.mac }}
+        <p>{{ wifiStaApInfo.mac }}</p>
+      </el-descriptions-item>
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>IP({{ translate('wifi.internalAddress') }})</div>
+        </template>
+        <p>{{ wifiStaApInfo.ip }}</p>
       </el-descriptions-item>
       <el-descriptions-item span="4">
         <template #label>
           <div>
-            网关
+            {{ translate('wifi.gateway') }}
           </div>
         </template>
-        {{ wifiStaApInfo.gateway }}
+        <p>{{ wifiStaApInfo.gateway }}</p>
+      </el-descriptions-item>
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>
+            {{ translate('wifi.netmask') }}
+          </div>
+        </template>
+        <p>{{ wifiStaApInfo.netmask }}</p>
+      </el-descriptions-item>
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>
+            {{ translate('wifi.primaryDNS') }}
+          </div>
+        </template>
+        <p>{{ wifiStaApInfo.dns_main }}</p>
+      </el-descriptions-item>
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>
+            {{ translate('wifi.backupDNS') }}
+          </div>
+        </template>
+        <p>{{ wifiStaApInfo.dns_backup }}</p>
       </el-descriptions-item>

       <el-descriptions-item span="4">
         <template #label>
           <div>
-            掩码
+            {{ translate('wifi.IPmode') }}
           </div>
         </template>
-        {{ wifiStaApInfo.netmask }}
+        <el-select v-model="wifiStaticInfo.static_ip_en" :disabled="!isConnected">
+          <el-option
+              v-for="item in staIPModeOptions"
+              :key="item.key"
+              :value="item.key"
+              :label="item.label"
+          />
+        </el-select>
+      </el-descriptions-item>
+      <el-descriptions-item span="4" v-if="wifiStaticInfo.static_ip_en">
+        <template #label>
+          <div>IP({{ translate('wifi.internalAddress') }})</div>
+        </template>
+        <el-input v-model="wifiStaticInfo.ip"></el-input>
+      </el-descriptions-item>
+      <el-descriptions-item span="4" v-if="wifiStaticInfo.static_ip_en">
+        <template #label>
+          <div>
+            {{ translate('wifi.gateway') }}
+          </div>
+        </template>
+        <el-input v-model="wifiStaticInfo.gateway"></el-input>
+      </el-descriptions-item>
+      <el-descriptions-item span="4" v-if="wifiStaticInfo.static_ip_en">
+        <template #label>
+          <div>
+            {{ translate('wifi.netmask') }}
+          </div>
+        </template>
+        <el-input v-model="wifiStaticInfo.netmask"></el-input>
+      </el-descriptions-item>
+
+      <el-descriptions-item span="4">
+        <template #label>
+          <div>
+            {{ translate('wifi.DNSmode') }}
+          </div>
+        </template>
+        <el-select v-model="wifiStaticInfo.static_dns_en" :disabled="!isConnected">
+          <el-option
+              v-for="item in staDNSModeOptions"
+              :key="item.key"
+              :value="item.key"
+              :label="item.label"
+          />
+        </el-select>
+      </el-descriptions-item>
+      <el-descriptions-item span="4" v-if="wifiStaticInfo.static_dns_en">
+        <template #label>
+          <div>
+            {{ translate('wifi.primaryDNS') }}
+          </div>
+        </template>
+        <el-input v-model="wifiStaticInfo.dns_main"></el-input>
+      </el-descriptions-item>
+      <el-descriptions-item span="4" v-if="wifiStaticInfo.static_dns_en">
+        <template #label>
+          <div>
+            {{ translate('wifi.backupDNS') }}
+          </div>
+        </template>
+        <el-input v-model="wifiStaticInfo.dns_backup"></el-input>
       </el-descriptions-item>
     </el-descriptions>
+    <div class="flex justify-center mt-4">
+      <el-button type="primary" :loading="wifiMode_loading" @click="wifiStaSetStaticInfo">{{ translate('wifi.save') }}</el-button>
+    </div>

     <el-divider></el-divider>

     <el-descriptions
-        title="Wi-Fi热点信息"
         :column="1"
         border
         class="description-style"
     >
+      <template #title>
+        Wi-Fi {{ translate('wifi.hotspotInfo') }}
+        <el-tag v-if="!isConnected" type="danger">{{ translate('wifi.disconnected') }}</el-tag>
+      </template>
+      <template #extra>
+        <el-switch v-model="wifiAp_On" :disabled="!isConnected || !wifiSta_On"
+                   :loading="wifiMode_loading" :active-text="translate('wifi.enabled')" :inactive-text="translate('wifi.disabled')"
+                   :before-change="()=>beforeWifiModeChange('AP')"
+        />
+      </template>
       <el-descriptions-item span="6">
         <template #label>
           <div>
-            SSID
+            Wi-Fi(SSID)
           </div>
         </template>
-        {{ wifiApInfo.ssid }}
+        <div class="flex">
+          <el-input v-model="wifiApInfo.ssid"></el-input>
+        </div>
+      </el-descriptions-item>
+      <el-descriptions-item span="6">
+        <template #label>
+          <div>
+            {{ translate('wifi.password') }}
+          </div>
+        </template>
+        <el-input v-model="wifiApInfo.password"></el-input>
       </el-descriptions-item>
-<!--      <el-descriptions-item span="6">-->
-<!--        <template #label>-->
-<!--          <div>-->
-<!--            密码-->
-<!--          </div>-->
-<!--        </template>-->
-<!--        <password-viewer password="asdasdasd"></password-viewer>-->
-<!--      </el-descriptions-item>-->
       <el-descriptions-item span="4">
         <template #label>
           <div>
@@ -169,7 +297,7 @@
       <el-descriptions-item span="4">
         <template #label>
           <div>
-            网关
+            {{ translate('wifi.gateway') }}
           </div>
         </template>
         {{ wifiApInfo.gateway }}
@@ -178,67 +306,137 @@
       <el-descriptions-item span="4">
         <template #label>
           <div>
-            掩码
+            {{ translate('wifi.netmask') }}
           </div>
         </template>
         {{ wifiApInfo.netmask }}
       </el-descriptions-item>
     </el-descriptions>
-
+    <div class="flex justify-center mt-4">
+      <el-button type="primary" :loading="wifiMode_loading" @click="wifiApChangeCredential">{{ translate('wifi.save') }}</el-button>
+    </div>
     <el-divider></el-divider>
   </div>

 </template>

 <script setup lang="ts">
-import {computed, onMounted, onUnmounted, reactive, ref} from "vue";
+import {computed, type ComputedRef, onMounted, onUnmounted, reactive, ref} from "vue";
 import {
-  wifi_sta_get_ap_info,
+  type IWifiMode,
+  wifi_ap_get_info,
+  wifi_ap_set_credential,
+  wifi_connect_to,
+  wifi_get_mode,
   wifi_get_scan_list,
+  wifi_set_mode,
+  wifi_sta_get_ap_info,
   WifiCmd,
   type WifiInfo,
   type WifiList,
-  wifi_ap_get_info, wifi_connect_to
+  WifiMode,
+  type WifiScanInfo,
+  type WiFiCredential,
+  WifiStatus, wifi_sta_get_static_info,
+  type IWifiStaStaticInfo, wifi_sta_set_static_conf,
 } from "@/api/apiWifi";
 import type {FormInstance} from "element-plus";

 import InlineSvg from "@/components/InlineSvg.vue";
-import type {ApiJsonMsg, ControlMsg, ServerMsg} from "@/api";
+import type {ApiJsonMsg, ControlMsg} from "@/api";
 import {ControlEvent, ControlMsgType, WtModuleID} from "@/api";
 import {registerModule, unregisterModule} from "@/router/msgRouter";
 import {useWsStore} from "@/stores/websocket";
 import {globalNotify, globalNotifyRightSide} from "@/composables/notification";
+import {isDevMode} from "@/composables/buildMode";
+import {translate} from "@/locales";

 const formRef = ref<FormInstance>()
-let wifiListPlaceholder = ref("我的WIFI")
+let wifiListPlaceholder = ref("MY-WIFI")
 let ssidValidateForm = reactive({
   wifiSsid: "",
   password: "",
 })

+let wifiSta_On = ref(false);
+const wifiMode_loading = ref(false)
+
+let wifiAp_On = ref(false);
+
+let wifiMode = ref(-1);
+
+let wifiModeOptions = computed( () => [
+  {
+    label: translate('wifi.APauto_STA'),
+    key: WifiMode.WIFI_AP_AUTO_STA_ON,
+  }, {
+    label: translate('wifi.APonly'),
+    key: WifiMode.WIFI_AP_ON_STA_OFF,
+  }, {
+    label: translate('wifi.AP_STA'),
+    key: WifiMode.WIFI_AP_STA_ON,
+  }, /*
+   {
+    value: "仅开启终端（STA）",
+    key: 2,
+  },*/
+])

 let wsStore = useWsStore();

 const defWifiInfo: WifiInfo = {
   cmd: 1,
   module: 1,
-  gateway: "未连接",
-  ip: "未连接",
-  mac: "未连接",
+  gateway: "-",
+  ip: "-",
+  mac: "-",
+  dns_main: "-",
+  dns_backup: "-",
   rssi: 0,
-  netmask: "未连接",
-  ssid: "未连接",
+  netmask: "-",
+  ssid: "-",
+  password: "",
 }

+const staIPModeOptions = [
+  {
+    label: translate('wifi.autoIP'),
+    key: 0,
+  }, {
+    label: translate('wifi.staticIP'),
+    key: 1,
+  },
+]
+
+const staDNSModeOptions = [
+  {
+    label: translate('wifi.autoDNS'),
+    key: 0,
+  }, {
+    label: translate('wifi.staticDNS'),
+    key: 1,
+  },
+]
+
+const isConnected = computed(() => wsStore.state === ControlEvent.CONNECTED)
 let wifiStaApInfo = reactive<WifiInfo>({...defWifiInfo});
 let wifiApInfo = reactive<WifiInfo>({...defWifiInfo});
+let wifiStaticInfo = reactive<IWifiStaStaticInfo>({
+  dns_backup: "0.0.0.0",
+  dns_main: "0.0.0.0",
+  gateway: "0.0.0.0",
+  ip: "0.0.0.0",
+  netmask: "0.0.0.0",
+  static_dns_en: 0,
+  static_ip_en: 0,
+});

 let scanning = ref(false);
 let scan_cb: any;
 let connectBtnClicked = 0;
-let options: Array<WifiInfo> = [];
+let options: Array<WifiScanInfo> = [];
 const scanText = computed(() => {
-  return scanning.value ? "扫描中" : "扫描";
+  return scanning.value ? translate("wifi.scanning") : translate("wifi.scan");
 });

 const querySearch = (queryString: string, cb: any) => {
@@ -262,7 +460,8 @@ const onClientMsg = (msg: ApiJsonMsg) => {
       }
       if (connectBtnClicked) {
         connectBtnClicked = 0;
-        globalNotifyRightSide(wifiStaApInfo.ssid + " 连接成功", "success");
+        globalNotifyRightSide(wifiStaApInfo.ssid + " " + translate('wifi.connectionSuccess'), "success");
+        wifi_sta_get_static_info();
       }
       break;
     }
@@ -285,7 +484,7 @@ const onClientMsg = (msg: ApiJsonMsg) => {
         scan_cb(options);
         scan_cb = null;
       }
-      globalNotifyRightSide("扫描完成", "success");
+      globalNotifyRightSide(translate('wifi.scanDone'), "success");
       break;
     }
     case WifiCmd.WIFI_API_JSON_DISCONNECT:
@@ -295,6 +494,60 @@ const onClientMsg = (msg: ApiJsonMsg) => {
       Object.assign(wifiApInfo, info);
       break;
     }
+    case WifiCmd.WIFI_API_JSON_SET_MODE:
+      wifi_get_mode();
+      /* falls through */
+    case WifiCmd.WIFI_API_JSON_GET_MODE: {
+      const modeInfo = msg as IWifiMode;
+      wifiMode_loading.value = false;
+      if (modeInfo.err !== undefined) {
+        globalNotifyRightSide(translate('wifi.setFailed'), "error");
+        return;
+      }
+
+      if (modeInfo.status !== undefined) {
+        wifiAp_On.value = modeInfo.status === WifiStatus.WIFI_MODE_AP || modeInfo.status === WifiStatus.WIFI_MODE_APSTA;
+        wifiSta_On.value = modeInfo.status === WifiStatus.WIFI_MODE_STA || modeInfo.status === WifiStatus.WIFI_MODE_APSTA;
+      }
+      if (modeInfo.mode !== undefined) {
+        if (modeInfo.mode < WifiMode.WIFI_AP_STOP) {
+          wifiMode.value = modeInfo.mode;
+        } else if (modeInfo.mode === WifiMode.WIFI_AP_START) {
+          wifiAp_On.value = true;
+        } else if (modeInfo.mode === WifiMode.WIFI_AP_STOP) {
+          wifiAp_On.value = false;
+        } else if (modeInfo.mode === WifiMode.WIFI_STA_START) {
+          wifiSta_On.value = true;
+        } else if (modeInfo.mode === WifiMode.WIFI_STA_STOP) {
+          wifiSta_On.value = false;
+        }
+      }
+      break;
+    }
+    case WifiCmd.WIFI_API_JSON_AP_SET_CRED: {
+      const wifiCred = msg as WiFiCredential;
+      if (wifiCred.err !== undefined) {
+        globalNotifyRightSide(wifiCred.err, "error");
+      } else {
+        globalNotifyRightSide(translate('wifi.setSuccess'), "success");
+      }
+      wifiMode_loading.value = false;
+
+      break;
+    }
+    case WifiCmd.WIFI_API_JSON_STA_GET_STATIC_INFO: {
+      const staticInfo = msg as IWifiStaStaticInfo & ApiJsonMsg;
+      Object.assign(wifiStaticInfo, staticInfo);
+      break;
+    }
+    case WifiCmd.WIFI_API_JSON_STA_SET_STATIC_CONF:
+      wifiMode_loading.value = false;
+      break;
+    default:
+      if (isDevMode()) {
+        console.log(msg);
+      }
+      break;
   }
 };

@@ -311,12 +564,14 @@ const onClientCtrl = (msg: ControlMsg) => {
   if (msg.data === ControlEvent.CONNECTED) {
     wifi_sta_get_ap_info();
     wifi_ap_get_info();
+    wifi_get_mode();
+    wifi_sta_get_static_info();
   }
 };

 function onScanClick() {
-  if (wsStore.state !== ControlEvent.CONNECTED) {
-    globalNotify("调试器未连接", 'error');
+  if (!isConnected.value) {
+    globalNotify(translate('wifi.debuggerNotConnected'), 'error');
     return;
   }
   scanning.value = true;
@@ -324,8 +579,8 @@ function onScanClick() {
 }

 function onConnectClick() {
-  if (wsStore.state !== ControlEvent.CONNECTED) {
-    globalNotify("调试器未连接", 'error');
+  if (!isConnected.value) {
+    globalNotify(translate('wifi.debuggerNotConnected'), 'error');
     return;
   }
   if (ssidValidateForm.wifiSsid !== "") {
@@ -334,6 +589,49 @@ function onConnectClick() {
   }
 }

+function beforeWifiModeChange(ap_sta: "AP" | "STA" = "AP") {
+  if (ap_sta === "AP") {
+    wifiMode_loading.value = true;
+    wifi_set_mode(wifiAp_On.value ? WifiMode.WIFI_AP_STOP : WifiMode.WIFI_AP_START);
+  } else {
+    wifiMode_loading.value = true;
+    wifi_set_mode(wifiSta_On.value ? WifiMode.WIFI_STA_STOP : WifiMode.WIFI_STA_START);
+  }
+  wifi_sta_get_ap_info();
+  return false;
+}
+
+function wifiChangeMode() {
+  wifiMode_loading.value = true;
+  wifi_set_mode(wifiMode.value);
+}
+
+function wifi_rssi_to_percent(rssi: number)
+{
+  if (rssi <= -100) {
+    return 0;
+  } else if (rssi >= -50) {
+    return 100;
+  } else {
+    return 2 * (rssi + 100);
+  }
+}
+
+function wifiApChangeCredential() {
+  if (wifiApInfo.ssid === "") {
+    globalNotifyRightSide(translate('wifi.enterAPName'), "error");
+    return;
+  }
+  wifiMode_loading.value = true;
+  wifi_ap_set_credential(wifiApInfo.ssid, wifiApInfo.password);
+}
+
+function wifiStaSetStaticInfo() {
+  wifiMode_loading.value = true;
+  wifi_sta_set_static_conf(wifiStaticInfo);
+  wifi_sta_get_ap_info();
+}
+
 onMounted(() => {
   registerModule(WtModuleID.WIFI, {
     ctrlCallback: onClientCtrl,
@@ -342,17 +640,18 @@ onMounted(() => {
   });
   wifi_sta_get_ap_info();
   wifi_ap_get_info();
+  wifi_get_mode();
+  wifi_sta_get_static_info();
 });

 onUnmounted(() => {
   unregisterModule(WtModuleID.WIFI);
 });

-
 </script>


-<style scoped>
+<style scoped lang="postcss">
 .description-style :deep(.el-descriptions__label) {
   @apply w-32
 }

src/views/navigation/NavBar.vue

@@ -1,26 +1,22 @@
 <template>
   <nav class="relative px-2 py-0.5 sm:py-1 flex justify-between items-center border-b h-full">
     <div class="flex">
-      <button @click.prevent="sideMenuOpen=true" class="flex items-center hover:text-blue-600 pl-1 mx-4">
+      <button @click.prevent="sideMenuOpen=true" class="flex items-center hover:text-blue-600 pl-1 mx-2 sm:mx-4">
         <svg class="block h-3 lg:h-4 lg:w-4 fill-current" viewBox="0 0 20 20" xmlns="http://www.w3.org/2000/svg">
-          <title>导航侧栏</title>
+          <title>{{ translate('navbar.navigationSidebar') }}</title>
           <path d="M0 3h20v2H0V3zm0 6h20v2H0V9zm0 6h20v2H0v-2z"></path>
         </svg>
+        <el-badge v-if="updateStore.canUpdate" is-dot></el-badge>
       </button>

-      <router-link to="/" class="text-3xl px-4 font-bold leading-none hidden items-center sm:flex" title="走，去码头整点薯条">
+      <router-link to="/" class="text-3xl px-4 font-bold leading-none hidden items-center sm:flex" :title="translate('navbar.getSomeFries')">
         <InlineSvg name="favicon" class="h-5 lg:h-8"></InlineSvg>
       </router-link>

+      <div id="nav-right-slot"></div>

-<!--      <a class="text-3xl px-4 font-bold leading-none" href="/">-->
-<!--        <InlineSvg name="home" class="h-10"></InlineSvg>-->
-<!--      </a>-->
-<!--      <router-link to="/" class="flex items-center text-sm text-blue-600 font-bold">主页</router-link>-->
-<!--      <a class="flex items-center text-sm text-blue-600 font-bold" href="/">主页6</a>-->
-
-      <div class="flex pt-0.5 sm:pt-1 ml-4 text-sm items-center sm:hidden">
-        <router-link :to="route.fullPath">{{ route.meta.title }}</router-link>
+      <div class="flex pt-0.5 sm:pt-1 ml-4 text-xs items-center sm:hidden">
+        <router-link :to="route.fullPath">{{ $route.meta.title }}</router-link>
       </div>
     </div>

@@ -35,6 +31,20 @@
     <!--  <a class="md:ml-auto md:mr-3"></a>-->
     <div class="flex h-full">
       <div id="page-spec-slot" class="content-center h-full flex flex-row"></div>
+      <div class="mr-2">
+          <el-select v-model="language" class="min-w-20 h-full" @change="handleLanguageChange">
+            <el-option value="en">🇺🇸 English</el-option>
+            <el-option value="zh">🇨🇳 简体中文</el-option>
+            <el-option value="fr">🇫🇷 Français</el-option>
+            <template #label>
+              <div class="flex">
+                <InlineSvg name="translate" class="w-4 mr-1"></InlineSvg>
+                {{ languageFlag }}
+              </div>
+            </template>
+          </el-select>
+      </div>
+
       <div class="lg:hidden">
         <el-button :type="wsColor" size="small" class="transition duration-1000 min-h-full">
           <InlineSvg v-show="wsColor!=='success'" name="link-off" class="mr-2" width="20"></InlineSvg>
@@ -67,8 +77,11 @@

       <div class="flex flex-col justify-between m-4 mt-0">
         <ul>
-          <li v-for="(item, index) in menuItems" class="mb-1" :key="index">
-            <router-link @click="sideMenuOpen=false" :title="item.name" :to="item.href" :class="[sideMenuItemClass, item?.class]">{{ item.name }}</router-link>
+          <li v-for="(item, index) in sideBarItems" class="mb-1" :key="index">
+              <router-link @click="sideMenuOpen=false" :title="item.name" :to="item.href" :class="[sideMenuItemClass, item?.class]">
+                {{ item.name }}
+                <el-badge v-if="item?.badge?.value" is-dot></el-badge>
+              </router-link>
           </li>
         </ul>
       </div>
@@ -77,9 +90,9 @@
         <div>
           <el-button @click="toggle">
             <InlineSvg v-if="!isFullscreen" name="open-in-full" width="16px" fill="#000000"></InlineSvg>
-            <p v-if="!isFullscreen">全屏</p>
+            <p v-if="!isFullscreen">{{ translate('page.fullscreen') }}</p>
             <InlineSvg v-if="isFullscreen" name="close-fullscreen" width="16px" fill="#000000"></InlineSvg>
-            <p v-if="isFullscreen">缩小</p>
+            <p v-if="isFullscreen">{{ translate('page.windowed') }}</p>
           </el-button>
         </div>
       </template>
@@ -105,18 +118,31 @@

 <script lang="ts" setup>
 import InlineSvg from "@/components/InlineSvg.vue";
-import {computed, ref} from "vue";
+import {computed, type ComputedRef, type Ref, ref} from "vue";
 import {useWsStore} from "@/stores/websocket";
 import {translate} from "@/locales";
 import {ControlEvent} from "@/api";
 import {useRoute} from "vue-router";
 import { useFullscreen } from '@vueuse/core'
+import {useUpdateStore} from "@/stores/useUpdateStore";
+import {isOTAEnabled} from "@/composables/buildMode";
+import {getFlagFromLang, locale, setLang} from "@/i18n"

 const wsStore = useWsStore();
+const updateStore = useUpdateStore();
 const {isFullscreen, toggle} = useFullscreen();
 const route = useRoute();
+const language = ref(locale);

-const sideMenuItemClass = "block p-4 text-sm font-semibold hover:bg-blue-50 hover:text-blue-600 rounded"
+const languageFlag = computed(() => {
+  return getFlagFromLang(language.value);
+});
+
+function handleLanguageChange(lang: string) {
+  setLang(lang);
+}
+
+const sideMenuItemClass = "block p-4 text-sm font-semibold hover:bg-blue-50 hover:text-blue-600 rounded flex"
 const sideMenuOpen = ref(false);
 const stateMenuOpen = ref(false)

@@ -137,22 +163,40 @@ const wsColor = computed(() => {
 });

 const wsState = computed(() => {
-  return translate(wsStore.state);
+  return translate(wsStore.state.toLocaleLowerCase());
 });

 type Item = {
   name: string;
   href: string;
   class?: string;
+  badge?: Ref<boolean>;
 };

-const menuItems: Item[] = ([
-/*  {
-    name: translate("page.home"),
-    href: "/",
-  }, */{
+const menuItems: ComputedRef<Item[]> = computed(() => ([
+  {
+    name: translate("page.uart"),
+    href: "/uart",
+  }, {
     name: translate("page.wifi"),
     href: "/wifi",
+  }, {
+    name: translate("page.feedback"),
+    href: "/feedback",
+  },
+]));
+
+const sideBarItems: ComputedRef<Item[]> = computed(() => {
+  const items: Item[] = [
+    {
+      name: translate("page.wifi"),
+      href: "/wifi",
+    }, {
+      name: translate("page.uart"),
+      href: "/uart",
+    }, {
+      name: translate("page.widget"),
+      href: "/widget",
     }, {
       name: translate("page.about"),
       href: "/about",
@@ -160,7 +204,18 @@ const menuItems: Item[] = ([
       name: translate("page.feedback"),
       href: "/feedback",
     },
-]);
+  ];
+  if (isOTAEnabled()) {
+    items.push({
+      name: translate("page.update"),
+      href: "/update",
+      badge: computed(() => updateStore.canUpdate),
+    })
+  }
+  return items;
+});
+
+

 </script>

@@ -188,5 +243,9 @@ const menuItems: Item[] = ([
   padding: 0;
 }

+.el-select :deep(.el-select__wrapper) {
+  @apply h-full;
+}
+

 </style>

src/views/text-data-viewer/textDataConfig.vue

@@ -0,0 +1,457 @@
+<template>
+  <div>
+    <el-tabs v-model="store.configPanelTab" class="mx-2 custom-tabs fit">
+      <el-tab-pane name="first" class="min-h-80">
+        <template #label>{{ $t("uart.port") }}</template>
+        <div class="flex flex-col gap-2">
+          <el-form :size="store.winLeft.show ? '' : 'small'" label-position="left" label-width="auto">
+            <el-form-item
+                class="mb-2"
+            >
+              <template #label>{{ $t("uart.baudrate") }}</template>
+              <div class="flex w-full">
+                <el-select v-model="store.uartBaud" :teleported="false" @change="onUartBaudChange">
+                  <template #header>
+                    <div class="overflow-auto max-h-40">
+                      <div class="flex gap-0">
+                        <el-input-number
+                            v-model="uartCustomBaud"
+                            :placeholder="translate('uart.customBaud')"
+                            size="small"
+                            :controls="false"
+                            :min="110"
+                            class="flex-grow"
+                        ></el-input-number>
+                        <el-button size="small" @click="onUseCustomUartBaud">{{ $t('uart.use') }}</el-button>
+                        <!--                      <el-button size="small" @click="onConfirm" class="ml-0">增加</el-button>-->
+                      </div>
+
+                      <el-option-group :label="translate('uart.commonlyUsed')">
+                        <el-option
+                            v-for="item in store.predefinedUartBaudFrequent"
+                            :key="item.baud"
+                            :value="item.baud"
+                            class="border-b list-none"
+                        />
+                      </el-option-group>
+
+                      <el-option-group :label="translate('uart.other')">
+                        <el-option
+                            v-for="item in store.uartBaudList"
+                            :key="item.baud"
+                            :value="item.baud"
+                            class="border-b list-none"
+                        />
+                      </el-option-group>
+                    </div>
+                  </template>
+                </el-select>
+              </div>
+            </el-form-item>
+            <p class="text-xs">{{ $t('uart.actual') }} {{ $t('uart.baudrate') }}:{{ store.uartBaudReal }}</p>
+
+            <el-form-item :label="translate('uart.dataBits')" class="mb-2">
+              <el-select v-model="store.uartConfig.data_bits" :teleported="false"
+                         placeholder="Select" @change="onUartConfigChange">
+                <el-option
+                    v-for="item in uartDataBitsOptions"
+                    :key="item.key"
+                    :value="item.key"
+                    :label="item.label"
+                />
+              </el-select>
+            </el-form-item>
+
+            <el-form-item :label="translate('uart.parity')" class="mb-2">
+              <el-select v-model="store.uartConfig.parity" :teleported="false"
+                         placeholder="Select" @change="onUartConfigChange">
+                <el-option
+                    v-for="item in uartParityOptions"
+                    :key="item.key"
+                    :value="item.key"
+                    :label="item.label"
+                />
+              </el-select>
+            </el-form-item>
+
+            <el-form-item :label="translate('uart.stopBits')">
+              <el-select v-model="store.uartConfig.stop_bits" :teleported="false"
+                         placeholder="Select" @change="onUartConfigChange">
+                <el-option
+                    v-for="item in uartStopBitsOptions"
+                    :key="item.key"
+                    :value="item.key"
+                    :label="item.label"
+                />
+              </el-select>
+            </el-form-item>
+
+            <div class="flex justify-center">
+              <el-button :type="store.acceptIncomingData ? 'danger': 'success'"
+                         :disabled="wsStore.state !== ControlEvent.CONNECTED"
+                         @click="store.acceptIncomingData = !store.acceptIncomingData"
+              >
+                {{ store.acceptIncomingData ? $t("uart.stopCommunication") : $t("uart.startCommunication") }}
+              </el-button>
+            </div>
+          </el-form>
+        </div>
+
+
+      </el-tab-pane>
+      <!--  /////////////////////////////////////////////////////////////////    -->
+      <el-tab-pane name="second">
+        <template #label>{{ $t("uart.displayPannel") }}</template>
+        <div class="flex flex-col">
+          <el-collapse v-model="collapseActiveName">
+            <el-collapse-item name="1">
+              <template #title>
+                {{ $t('uart.displayOptions') }}
+              </template>
+              <template #default>
+                <div class="flex flex-col gap-2">
+                  <div class="flex flex-col">
+                    <el-checkbox border v-model="store.showText" :label="translate('uart.text')"/>
+                  </div>
+                  <div class="flex flex-col">
+                    <el-checkbox border v-model="store.showHex" label="HEX"/>
+                  </div>
+                  <div class="flex flex-col">
+                    <el-checkbox border v-model="store.showHexdump" label="HEXDUMP"/>
+                  </div>
+                  <div class="flex flex-col">
+                    <el-checkbox border v-model="store.showTimestamp" :label="translate('uart.timestamp')"/>
+                  </div>
+                  <div class="flex flex-col">
+                    <el-checkbox border v-model="store.enableLineWrap" :label="translate('uart.lineWrap')"/>
+                  </div>
+
+                  <el-tag type="success">
+                    <el-text type="success">RX HEXDUMP {{ $t("uart.highlight") }}</el-text>
+                    <el-color-picker v-model="store.RxHexdumpColor" show-alpha :predefine="store.predefineColors"
+                                     size="small"/>
+                  </el-tag>
+
+                  <el-tag type="primary">
+                    <el-text type="primary">TX HEXDUMP {{ $t("uart.highlight") }}</el-text>
+                    <el-color-picker v-model="store.TxHexdumpColor" show-alpha :predefine="store.predefineColors"
+                                     size="small"/>
+                  </el-tag>
+                </div>
+              </template>
+            </el-collapse-item>
+
+            <el-collapse-item name="2" :title="translate('uart.frameBreakStrategy')">
+              <VueDraggable v-model="store.frameBreakRules" target="tbody" handle=".sort-target"
+                            :animation="150"
+                            :on-move="checkMove">
+                <table class="w-full bg-white">
+                  <thead>
+                  <tr class="text-sm h-7">
+                    <th>{{ $t('uart.priority') }}</th>
+                    <th>
+                      <div class="flex justify-center">
+                        {{ translate('uart.rule' as TranslationKeys) }}
+                        <el-tooltip placement="top" effect="light">
+                          <template #content>
+                            <div v-html="translate('uart.ruleTips')"></div>
+                          </template>
+                          <InlineSvg name="help" class="w-4 text-gray-500 cursor-help"></InlineSvg>
+                        </el-tooltip>
+                      </div>
+                    </th>
+                    <th>{{ translate('uart.value' as TranslationKeys) }}</th>
+                  </tr>
+                  </thead>
+                  <tbody class="text-xs text-center">
+                  <tr v-for="(item, index) in store.frameBreakRules" :key="index">
+                    <td :class="item.draggable ? 'sort-target' : ''">
+                      {{ item.draggable ? index : 'NaN' }}
+                    </td>
+                    <td :class="item.draggable ? 'sort-target' : ''">
+                      {{ translate("uart." + item.name) }}
+                    </td>
+                    <td>
+                      <div v-if="item.type === 'number'">
+                        <el-input-number v-if="item.name === 'timeout'" v-model="store.frameBreakDelay" :min="item.min || 0" size="small" style="width: 100px"/>
+                        <el-input-number v-else v-model="store.frameBreakSize" :min="item.min || 0" size="small" style="width: 100px"/>
+                      </div>
+                      <div v-else>
+                        <el-input class="break-input" v-model="store.frameBreakSequence" :placeholder="translate('uart.textAndEscape')" size="small"
+                                  style="width: 100px">
+                          <template #prepend>
+                            <el-button size="small" @click="store.frameBreakAfterSequence = false">
+                              <span
+                                  :class="store.frameBreakAfterSequence ? 'text-gray-400' : 'text-blue-400 font-bold'">
+                              {{ translate("uart.begin") }}
+                              </span>
+                            </el-button>
+                          </template>
+                          <template #append>
+                            <el-button size="small" @click="store.frameBreakAfterSequence = true">
+                              <span
+                                  :class="store.frameBreakAfterSequence ? 'text-blue-400 font-bold' : 'text-gray-300'">
+                              {{ translate("uart.end") }}
+                              </span>
+                            </el-button>
+                          </template>
+                        </el-input>
+                      </div>
+                    </td>
+                  </tr>
+                  </tbody>
+                </table>
+              </VueDraggable>
+            </el-collapse-item>
+
+            <el-collapse-item name="3" :title="translate('uart.other')">
+              <template #default>
+                <div class="flex flex-col gap-2">
+                  <el-tooltip
+                      class="box-item"
+                      effect="light"
+                      placement="right-start"
+                  >
+                    <template #content>
+                      <div v-html="translate('uart.ansiTooltips')"></div>
+                    </template>
+                    <el-checkbox border v-model="store.enableAnsiDecode">{{ translate('uart.decodeAnsiEscapeCodes') }}</el-checkbox>
+                  </el-tooltip>
+                  <el-input v-model="store.filterValue" :placeholder="translate('uart.textAndEscape')" clearable>
+                    <template #prepend>
+                      {{ translate("uart.filter") }}
+                    </template>
+                  </el-input>
+
+                  <div class="border rounded flex flex-col">
+
+                    <el-checkbox border v-model="store.dataFilterAutoUpdate">{{ translate('uart.autoUpdateNewData') }}</el-checkbox>
+
+                    <el-tooltip :content="translate('uart.updateFrequencyTooltip')" placement="right" effect="light"
+                                :show-after="500">
+                      <div class="flex gap-4 p-2">
+                        <el-text>{{ translate('uart.updateFrequency') }}</el-text>
+                        <el-input-number
+                            :step="10"
+                            :min="10"
+                            size="small"
+                            v-model="store.batchUpdateTime"
+                        >
+                        </el-input-number>
+                      </div>
+                    </el-tooltip>
+
+                  </div>
+
+                </div>
+
+              </template>
+            </el-collapse-item>
+          </el-collapse>
+
+          <!--          <div class="flex flex-col">-->
+          <!--            <el-text type="success">断帧设置</el-text>-->
+          <!--            <el-input v-model="store.frameBreakSequence" class="max-w-52">-->
+          <!--              <template #prepend>-->
+          <!--                文本匹配断帧-->
+          <!--              </template>-->
+          <!--            </el-input>-->
+          <!--            <el-input v-model="store.frameBreakDelay" type="number" class="max-w-52">-->
+          <!--              <template #prepend>-->
+          <!--                超时断帧-->
+          <!--              </template>-->
+          <!--            </el-input>-->
+          <!--          </div>-->
+
+
+          <!--          <div class="flex flex-col flex-wrap">-->
+          <!--            <el-button size="small">滚动到底</el-button>-->
+
+
+          <!--            <div>显示-->
+          <!--              <el-checkbox size="small" border>数据差异高亮</el-checkbox>-->
+          <!--              <el-checkbox size="small" border>TX高亮</el-checkbox>-->
+          <!--              <el-checkbox size="small" border>显示RX</el-checkbox>-->
+          <!--              <el-checkbox size="small" border>显示TX</el-checkbox>-->
+          <!--              <el-checkbox size="small" border>RX右对齐</el-checkbox>-->
+          <!--            </div>-->
+
+          <!--            &lt;!&ndash;            <div>专有协议&ndash;&gt;-->
+          <!--            &lt;!&ndash;              <el-button size="small">输入格式</el-button>&ndash;&gt;-->
+          <!--            &lt;!&ndash;              <el-button size="small">输出格式</el-button>&ndash;&gt;-->
+          <!--            &lt;!&ndash;            </div>&ndash;&gt;-->
+          <!--          </div>-->
+        </div>
+      </el-tab-pane>
+
+      <!--    /////////////////////////////////////////////////////////////  -->
+      <el-tab-pane :label="translate('uart.send')" name="third">
+        <template #label>{{ $t("uart.send") }}</template>
+        <div class="flex flex-col gap-2">
+          <el-input v-model="store.textPrefixValue" :placeholder="translate('uart.textAndEscape')" clearable>
+            <template #prepend>
+              {{ translate('uart.addHeader') }}►
+            </template>
+          </el-input>
+          <el-input v-model="store.textSuffixValue" :placeholder="translate('uart.textAndEscape')" clearable>
+            <template #append>
+              ◄{{ translate('uart.addFooter') }}
+            </template>
+          </el-input>
+        </div>
+      </el-tab-pane>
+
+
+      <el-tab-pane :label="translate('uart.proxy')" name="fourth" class="min-h-80">
+        <template #label>{{ $t("uart.passthrough") }}</template>
+        <div class="flex flex-col gap-2">
+          <div class="border rounded bg-white p-2">
+            <span class="border-r px-2">TCP {{ translate('uart.serverPort') }}</span>
+            <span class="px-2 cursor-not-allowed">1346</span>
+          </div>
+          <div>
+            <p><el-button @click="refreshTCPClientList" size="small" type="primary" :plain="true">{{ translate('uart.refresh') }}</el-button> {{ translate('uart.connectedClient') }}</p>
+
+            <el-table :data="dfStore.instanceList.filter((item) => (item.port_info as ISocketInfo).local_port === 1346)" :empty-text="translate('uart.noClientConnected')">
+              <el-table-column label="IP" prop="port_info.foreign_ip" />
+              <el-table-column :label="translate('uart.port')" prop="port_info.foreign_port"/>
+            </el-table>
+          </div>
+        </div>
+      </el-tab-pane>
+    </el-tabs>
+  </div>
+</template>
+
+<script setup lang="ts">
+import {VueDraggable} from 'vue-draggable-plus'
+import {computed, ref} from "vue";
+import {useDataViewerStore} from "@/stores/dataViewerStore";
+import {useWsStore} from "@/stores/websocket";
+import {globalNotify} from "@/composables/notification";
+import {ControlEvent} from "@/api";
+import type {MoveEvent} from "sortablejs";
+import InlineSvg from "@/components/InlineSvg.vue";
+import {useDataFlowStore} from "@/stores/useDataFlowStore";
+import {wt_data_flow_get_instance_list, type ISocketInfo} from "@/api/apiDataFlow";
+import {uart_set_baud, uart_set_config} from "@/api/apiUart";
+import {useUartStore} from "@/stores/useUartStore";
+import {translate, type TranslationKeys} from "@/locales";
+
+const store = useDataViewerStore()
+const uartStore = useUartStore()
+const wsStore = useWsStore()
+const dfStore = useDataFlowStore()
+
+const collapseActiveName = ref(["1", "2", "3"])
+
+const uartCustomBaud = ref(1500000)
+
+const uartDataBitsOptions = [
+  {
+    key: 5,
+    label: "5 bits",
+  }, {
+    key: 6,
+    label: "6 bits",
+  }, {
+    key: 7,
+    label: "7 bits",
+  }, {
+    key: 8,
+    label: "8 bits",
+  }
+]
+
+const uartParityOptions = computed(() => [
+  {
+    key: 0,
+    label: translate("uart.parityNone"),
+  }, {
+    key: 1,
+    label: translate("uart.parityOdd"),
+  }, {
+    key: 2,
+    label: translate("uart.parityEven"),
+  }
+]);
+
+
+const uartStopBitsOptions = [
+  {
+    key: 1,
+    label: "1",
+  }, {
+    key: 15,
+    label: "1.5",
+  }, {
+    key: 2,
+    label: "2",
+  }
+]
+
+const onUseCustomUartBaud = () => {
+  if (uartCustomBaud.value) {
+    store.uartBaud = uartCustomBaud.value;
+    onUartBaudChange();
+  } else {
+    globalNotify("波特率格式错误", "warning")
+  }
+}
+
+function onUartBaudChange() {
+  uart_set_baud(store.uartBaud, uartStore.uartNum);
+}
+
+function onUartConfigChange() {
+  uart_set_config(store.uartConfig, uartStore.uartNum);
+}
+
+function checkMove(event: MoveEvent) {
+  // Find index of related element
+  const toIndex: number = Array.from(event.to.children).indexOf(event.related);
+  return !!store.frameBreakRules[toIndex].draggable;
+}
+
+function refreshTCPClientList() {
+  dfStore.instanceList = [];
+  wt_data_flow_get_instance_list();
+}
+
+</script>
+
+<style scoped>
+.custom-tabs {
+  box-sizing: border-box;
+}
+
+.custom-tabs :deep(.el-tabs__item.is-top) {
+  padding: unset;
+}
+
+.custom-tabs :deep(.el-tabs__nav.is-top) {
+  @apply w-full flex justify-around
+}
+
+.custom-tabs :deep(.el-collapse-item__wrap) {
+  transition: all 0s; /* Customize the duration and easing */
+}
+
+.sortable-chosen {
+  background-color: var(--el-color-primary-light-9);
+}
+
+.sort-target {
+  cursor: move;
+}
+
+tr td {
+  @apply p-1;
+}
+
+.break-input :deep(.el-input-group__prepend), .break-input :deep(.el-input-group__append) {
+  background-color: unset;
+  @apply p-0 min-w-6
+}
+
+</style>

src/views/text-data-viewer/textDataMacro.vue

@@ -0,0 +1,182 @@
+<template>
+  <div class="flex items-center mb-2 flex-wrap gap-2">
+    <el-button type="primary" @click="importSettings">{{ translate('uart.import') }}</el-button>
+    <el-button type="warning" @click="exportSettings">{{ translate('uart.export') }}</el-button>
+
+    <el-tooltip
+        effect="light"
+        placement="top"
+        :show-after="500"
+    >
+      <template #content>
+        <p>{{ translate('uart.resetTooltip') }}</p>
+      </template>
+      <el-button type="info" @click="resetSettings">{{ translate('uart.reset') }}</el-button>
+    </el-tooltip>
+    <el-tooltip
+        effect="light"
+        placement="top"
+        :show-after="500"
+    >
+      <template #content>
+        <p>{{ translate('uart.saveToLocalTooltip') }}</p>
+      </template>
+      <el-checkbox border v-model="store.autoSaveSettings">{{ translate('uart.saveToLocal') }}</el-checkbox>
+    </el-tooltip>
+  </div>
+
+  <div class="flex items-center mb-2 flex-wrap gap-2">
+    <el-button type="primary" @click="() => {
+    store.macroData.push({
+      value: '',
+      label: translate('uart.send'),
+      id: store.macroId,
+    })
+    store.macroId++;
+  }">{{ translate('uart.add') }}
+    </el-button>
+    <el-checkbox v-model="editMode" border>{{ translate('uart.edit') }}</el-checkbox>
+    <el-checkbox v-model="draggableEnabled" border>{{ translate('uart.drag') }}</el-checkbox>
+  </div>
+  <div>
+    <el-alert v-if="store.ipChangeAlert" @close="store.ipChangeAlert=false">{{ translate('uart.ipChangeAlert') }}</el-alert>
+  </div>
+
+  <VueDraggable v-model="store.macroData" handle=".sort-target"
+                :animation="150" class="break-input">
+    <div v-for="(item, index) in store.macroData" :key="item.id" class="w-full text-xs flex items-center py-0.5"
+         :class="editMode ? 'macroButtons' : ''">
+      <el-tag size="large" type="success" v-if="draggableEnabled" class="sort-target mr-1">
+        =
+      </el-tag>
+      <el-input v-model="item.value" class="font-mono">
+        <template #append>
+          <el-input v-if="editMode" v-model="item.label"></el-input>
+          <el-button v-else @click="onSendClick(item.value)" type="primary">{{ item.label }}</el-button>
+        </template>
+      </el-input>
+      <el-link :underline="false" @click="store.macroData.splice(index, 1);">
+        <el-tag size="large" type="danger" v-if="editMode" class="ml-1">
+          x
+        </el-tag>
+      </el-link>
+    </div>
+  </VueDraggable>
+</template>
+
+<script setup lang="ts">
+import {VueDraggable} from "vue-draggable-plus";
+import {onMounted, ref} from "vue";
+import {globalNotify, globalNotifyRightSide} from "@/composables/notification";
+import {useDataViewerStore} from "@/stores/dataViewerStore";
+import {translate} from "@/locales";
+
+const editMode = ref(false);
+const draggableEnabled = ref(true);
+const store = useDataViewerStore();
+const emit = defineEmits(['winSizeRefresh'])
+
+function onSendClick(val: string) {
+  if (!val && !store.hasAddedText) {
+    globalNotify("无帧头帧尾、发送框无数据发送")
+    return;
+  }
+
+  if (store.acceptIncomingData) {
+    store.addString(val, false, true);
+  } else {
+    store.addString(val, false, true, 1);
+  }
+}
+
+function importSettings() {
+  const input = document.createElement('input');
+  input.type = 'file';
+  input.accept = 'application/json';
+
+  input.onchange = (event: Event) => {
+    const target = event.target as HTMLInputElement;
+    if (!target.files) return;
+    const file = target.files[0];
+
+    const reader = new FileReader();
+    reader.onload = (e: ProgressEvent<FileReader>) => {
+      const text = e.target?.result;
+      if (typeof text !== 'string') return;
+
+      try {
+        store.loadSettings(text);
+        emit('winSizeRefresh', '');
+      } catch (error) {
+        globalNotifyRightSide('导入失败', "error");
+        console.log("error", error);
+      }
+    };
+
+    reader.readAsText(file);
+  };
+
+  input.click();
+}
+
+function exportSettings() {
+  let obj = {
+    version: "v0.1.0",
+
+    /* Macro Window */
+    ...store.settings
+  };
+
+  const dataStr = JSON.stringify(obj, null, 2);
+  const blob = new Blob([dataStr], { type: 'application/json' });
+  const url = URL.createObjectURL(blob);
+  const link = document.createElement('a');
+  link.href = url;
+  link.download = "settingsBackup.json";
+  document.body.appendChild(link);
+  link.click();
+  document.body.removeChild(link);
+  URL.revokeObjectURL(url);
+}
+
+function resetSettings() {
+  localStorage.clear();
+}
+
+onMounted(() => {
+  store.loadSettings();
+});
+
+</script>
+
+
+<style scoped>
+.sortable-chosen {
+  background-color: var(--el-color-primary-light-7);
+}
+
+.sort-target {
+  cursor: move;
+}
+
+.macroButtons :deep(.el-input-group__append) {
+  padding: 0;
+}
+
+.break-input :deep(.el-input-group__append) {
+  background-color: unset;
+  border-color: unset;
+  color: unset;
+}
+
+.break-input :deep(.el-input-group__append button.el-button) {
+  background-color: var(--el-color-primary-light-9);
+  border-color: var(--el-border-color);
+  color: unset;
+  border-radius: 0 5px 5px 0;
+}
+
+.break-input :deep(.el-input-group__append button.el-button):hover {
+  background-color: var(--el-color-primary-light-7);
+}
+</style>

src/views/text-data-viewer/textDataViewer.vue

@@ -0,0 +1,457 @@
+<template>
+  <div class="flex min-h-7 overflow-auto">
+    <el-popover
+        placement="bottom"
+        trigger="click"
+        :hide-after="0"
+        transition="none"
+        width="300"
+    >
+      <div v-if="showDataConfig" class="h-[40vh] overflow-auto">
+        <text-data-config></text-data-config>
+      </div>
+      <template #reference>
+        <el-link v-show="showDataConfig" type="primary">
+          <InlineSvg name="arrow_drop_down" class="h-6 mb-1 px-2"></InlineSvg>
+        </el-link>
+      </template>
+    </el-popover>
+
+    <div class="flex">
+      <el-checkbox size="small" v-model="store.forceToBottom" :label="translate('uart.autoScrollToBottom')" border/>
+      <el-tooltip
+          class="box-item"
+          effect="light"
+          placement="top"
+      >
+        <template #content>
+          <p>{{ translate('uart.clearTooltip') }}</p>
+        </template>
+        <el-button size="small" @click="store.clearFilteredBuff">
+          <InlineSvg class="h-5" name="trash"></InlineSvg>
+          {{ $t('uart.clearScreen') }} ⇩
+        </el-button>
+      </el-tooltip>
+
+      <el-tooltip
+          class="box-item"
+          effect="light"
+          placement="top"
+      >
+        <template #content>
+          <p>{{ translate('uart.clearTooltip') }}</p>
+        </template>
+        <el-button size="small" @click="store.refreshFilteredBuff">
+          {{ $t('page.update') }}
+        </el-button>
+      </el-tooltip>
+      <el-tooltip
+          class="box-item"
+          effect="light"
+          placement="top"
+      >
+        <template #content>
+          <p>{{ translate('uart.autoUpdateTooltip') }}</p>
+        </template>
+        <el-checkbox size="small" border v-model="store.dataFilterAutoUpdate">
+          {{ $t('uart.autoUpdate') }}
+        </el-checkbox>
+      </el-tooltip>
+    </div>
+  </div>
+
+  <div class="flex flex-grow overflow-hidden border-2 rounded scroll-m-2">
+    <v-virtual-scroll
+        v-if="store.showVirtualScroll"
+        :items="store.dataFiltered"
+        id="myScrollerID"
+        ref="vuetifyVirtualScrollRef"
+        class="font-mono break-all text-sm"
+        :class="[store.enableLineWrap ? 'break-all' : 'text-nowrap']"
+    >
+      <template v-slot:default="{ item, }">
+        <div class="">
+          <div class="flex" :class="[store.enableLineWrap ? 'whitespace-pre-wrap' : 'whitespace-pre']">
+            <p class="text-nowrap text-sm text-lime-500" v-if="item.isRX" type="success" v-show="store.showTimestamp">
+              <span>{{ item.time }}</span>◄-RX|</p>
+            <p class="text-nowrap text-sm text-sky-500" v-else-if="item.type === 0" type="primary" v-show="store.showTimestamp">
+              <span>{{ item.time }}</span>TX-►|</p>
+            <p class="text-nowrap text-sm text-amber-800" v-else type="primary" v-show="store.showTimestamp">
+              <span>{{ item.time }}</span>NS-►|</p>
+
+            <p v-show="store.showText"
+               v-html="item.str"></p>
+          </div>
+          <div class="flex">
+            <p v-show="store.showHex" class="">{{ item.hex }}</p>
+          </div>
+          <div class="flex whitespace-pre">
+            <p v-show="store.showHexdump"
+               class="text-nowrap"
+               :style="{ 'background-color': item.isRX ? store.RxHexdumpColor : store.TxHexdumpColor }"
+               v-html="item.hexdump"
+            ></p>
+          </div>
+        </div>
+      </template>
+    </v-virtual-scroll>
+    <v-virtual-scroll
+        v-else
+        :items="store.dataFiltered"
+        id="myScrollerID"
+        ref="vuetifyVirtualScrollRef2"
+        class="font-mono break-all text-sm"
+        :class="[store.enableLineWrap ? 'break-all' : 'text-nowrap']"
+    >
+      <template v-slot:default="{ item, }">
+        <div>
+          <div class="flex" :class="[store.enableLineWrap ? 'whitespace-pre-wrap' : 'whitespace-pre']">
+            <p class="text-nowrap text-sm text-lime-500" v-if="item.isRX" type="success" v-show="store.showTimestamp">
+              <span>{{ item.time }}</span>◄-RX|</p>
+            <p class="text-nowrap text-sm text-sky-500" v-else-if="item.type === 0" type="primary" v-show="store.showTimestamp">
+              <span>{{ item.time }}</span>TX-►|</p>
+            <p class="text-nowrap text-sm text-amber-800" v-else type="primary" v-show="store.showTimestamp">
+                <span>{{ item.time }}</span>NS-►|</p>
+            <p v-show="store.showText"
+               v-html="item.str"></p>
+          </div>
+          <div class="flex">
+            <p v-show="store.showHex" class="">{{ item.hex }}</p>
+          </div>
+          <div class="flex whitespace-pre">
+            <p v-show="store.showHexdump"
+               class="text-nowrap"
+               :style="{ 'background-color': item.isRX ? store.RxHexdumpColor : store.TxHexdumpColor }"
+               v-html="item.hexdump"
+            ></p>
+          </div>
+        </div>
+      </template>
+    </v-virtual-scroll>
+  </div>
+
+  <div class="shrink-0 flex h-8 mt-0.5 text-xs">
+    <div class="flex shrink-0">
+      <el-tooltip :content="translate('uart.tempDisplayTooltip')" effect="light">
+        <InlineSvg name="help" class="w-3.5 h-3.5 text-gray-500 cursor-help"></InlineSvg>
+      </el-tooltip>
+      <p>►</p>
+    </div>
+    <div ref="RxHexDumpRef" class="p-0.5 border-2 rounded w-full overflow-y-scroll font-mono text-nowrap">
+      <p v-html="store.RxRemainHexdump"></p>
+    </div>
+  </div>
+
+  <div class="shrink-0 min-h-6 flex gap-2 justify-between overflow-auto">
+    <div class="flex gap-2">
+      <el-link @click="clearSendInput">
+        <el-tag class="font-mono" size="small">
+          <div class="flex ">
+            <InlineSvg class="h-5" name="trash"></InlineSvg>
+            <span class="content-end text-xs">⇩</span>
+          </div>
+        </el-tag>
+      </el-link>
+
+      <el-tooltip :content="translate('uart.loopSendTooltip')" placement="right" effect="light" :show-after="1000">
+        <div class="flex align-center">
+          <el-checkbox v-model="store.enableLoopSend" class="font-mono font-bold max-h-5" size="small" border>
+            {{ translate('uart.loopSend') }}(ms)
+          </el-checkbox>
+          <el-input-number
+              v-model="store.loopSendFreq"
+              class="h-5"
+              size="small"
+              :step="10"
+              :min="1"
+          >
+          </el-input-number>
+        </div>
+      </el-tooltip>
+
+      <el-link @click="store.isSendTextFormat = !store.isSendTextFormat">
+        <el-tag class="font-mono font-bold" size="small">{{ translate('uart.sendFormat') }}：{{ store.isSendTextFormat ? translate("uart.text") : "HEX" }}</el-tag>
+      </el-link>
+    </div>
+    <div class="flex gap-2">
+      <el-link @click="store.clearTxCounter()">
+        <el-tag class="font-mono font-bold" size="small">
+          {{ `TX(B):${store.TxByteCount}/ ${store.TxTotalByteCount}` }}
+        </el-tag>
+      </el-link>
+      <el-link type="success" @click="store.clearRxCounter()">
+        <el-tag class="font-mono font-bold" size="small" type="success">
+          {{ `RX(B):${store.RxByteCount}/ ${store.RxTotalByteCount}` }}
+        </el-tag>
+      </el-link>
+      <div class="flex align-center">
+        <el-tag class="font-mono font-bold" size="small" type="info">
+          <el-link class="flex" @click="store.clearDataBuff" type="warning">
+            <InlineSvg class="h-5" name="trash"></InlineSvg>
+          </el-link>
+          <span class="align-text-bottom">{{ translate('uart.cachedFrame') }}: {{ store.dataBufLength }}/30000</span>
+        </el-tag>
+      </div>
+    </div>
+  </div>
+  <div class="flex flex-row font-mono">
+    <el-input type="textarea" :autosize="{ minRows: 1, maxRows: 6}" v-model="store.uartInputTextBox" clearable
+              :placeholder="store.isSendTextFormat ?
+              translate('uart.textAndEscape') :
+              'HEX'"
+              @keydown="handleTextboxKeydown"
+    ></el-input>
+    <el-tooltip content="Ctrl+Enter" placement="top" :auto-close="500">
+      <el-button type="primary"
+                 @click="onSendClick">
+        {{ (store.isSendTextFormat || store.isHexStringValid) ? translate("uart.send") : translate("格式化") }}
+      </el-button>
+    </el-tooltip>
+  </div>
+</template>
+
+<script setup lang="ts">
+import {nextTick, onMounted, onUnmounted, ref, watch} from "vue";
+import {useDataViewerStore} from "@/stores/dataViewerStore";
+import InlineSvg from "@/components/InlineSvg.vue";
+import TextDataConfig from "@/views/text-data-viewer/textDataConfig.vue";
+import {debouncedWatch} from "@vueuse/core";
+import {globalNotify} from "@/composables/notification";
+import {translate} from "@/locales";
+import type { DraggableComponent } from '@/types/grid'
+
+defineOptions({
+  name: 'TextDataViewer',
+  widgetIconName: 'text-data'
+})
+
+withDefaults(defineProps<{
+  editCell?: boolean
+  showDataConfig?: boolean
+}>(), {
+  editCell: false,
+  showDataConfig: true,
+})
+
+const modelValue = defineModel<DraggableComponent>({ required: false })
+
+
+const count = ref(0);
+const vuetifyVirtualScrollBarRef = ref(document.body);
+const vuetifyVirtualScrollContainerRef = ref(document.body);
+
+const store = useDataViewerStore();
+
+const RxHexDumpRef = ref(document.body);
+
+let lastScrollHeight = 0;
+
+const mutationObserver = new MutationObserver(() => {
+  if (store.forceToBottom) {
+    lastScrollHeight = vuetifyVirtualScrollBarRef.value.scrollTop;
+    scrollToBottom();
+  }
+});
+
+function attachScroll() {
+  const parent = document.getElementById('myScrollerID') || document.body;
+
+  // used to scroll to bottom
+  vuetifyVirtualScrollBarRef.value = parent || document.body;
+
+  // used to monitor height changes, so that one new Items are rendered, the height change -> scroll to bottom
+  vuetifyVirtualScrollContainerRef.value = parent.querySelector('.v-virtual-scroll__container') || document.body;
+
+  vuetifyVirtualScrollBarRef.value.onscroll = handleScroll;
+
+  if (vuetifyVirtualScrollContainerRef.value) {
+    const config = {childList: true, subtree: true, attributes: true};
+    mutationObserver.observe(vuetifyVirtualScrollBarRef.value, config)
+  }
+
+  if (store.forceToBottom) {
+    scrollToBottom();
+  }
+}
+
+onMounted(() => {
+  attachScroll();
+})
+
+onUnmounted(() => {
+  mutationObserver.disconnect();
+  if (!store.isHexStringValid) {
+    store.uartInputTextBox = formatHexInput(store.uartInputTextBox);
+  }
+});
+
+debouncedWatch(() => store.showVirtualScroll, () => {
+  lastScrollHeight = 0;
+  mutationObserver.disconnect();
+  attachScroll();
+}, {debounce: 80});
+
+
+function addItem(nr: number) {
+  let rawText = "";
+
+  let maxcount = count.value + nr;
+
+  for (; count.value < maxcount; count.value++) {
+    let text = "";
+    if ((count.value & 3) === 3) {
+      text = `<p class="border-4">${count.value}inputasdf<br/>${count.value}asdf <br/>${count.value}asdfasdf <br/>${count.value}asdf </p>`;
+      text += text;
+
+    } else if ((count.value & 2) === 2) {
+      text = `<p class="border-4">${count.value}inputas  df2<br/>${count.value} asdf asd  <br/>${count.value}fasdf asdf </p>`;
+      text += text;
+    } else if ((count.value & 1) === 1) {
+      text = `<p class="border-4">${count.value}inputas  df2asdf asd  <br/>${count.value}fasdf asdf ${count.value} </p>`;
+      text += text;
+    } else {
+      text = `<p class="border-4">${count.value}inputasa<br/>jdhfklasjdhfklasdhflasidfhilasdfhlasdiufhlasdkfhuasnlfcyerhfcibnkuaweghnfctiklaweuyrchnlaweirtucgnawertkcgyawertcnawelcrvnawgervcawencrgf${count.value} </p>`;
+    }
+
+    rawText = count.value + "<p class=\"border-4\"> 666666666b\n6666      666\x1b[33m6666666666666666666666666</p>b\n"
+    const encoder = new TextEncoder();
+    const arr = encoder.encode(rawText);
+    store.addItem(arr, false, false, 1);
+  }
+}
+
+function scrollToBottom() {
+  nextTick(() => {
+    const scrollerElement = vuetifyVirtualScrollBarRef.value; // Adjust according to your setup
+    scrollerElement.scrollTop = scrollerElement.scrollHeight;
+  });
+}
+
+function formatHexInput(input: string) {
+  // Split the input string on spaces to process each segment separately
+  let str;
+
+  // Remove any "0x" prefix and handle uppercase conversion
+  str = input.replace(/^0x/i, ' ').toUpperCase();
+
+  // Remove any non-hexadecimal characters
+  str = str.replace(/[^0-9A-F]/gi, ' ');
+
+  let segments = str.split(/\s+/);
+  let output: string[] = [];
+
+  segments.forEach(segment => {
+    // Check if segment length is odd and needs padding
+    if (segment.length % 2 !== 0) {
+      segment = '0' + segment; // Prepend '0' to make the length even
+    }
+
+    // Split segment into array of two-character chunks
+    let chunked = [];
+    for (let i = 0; i < segment.length; i += 2) {
+      chunked.push(segment.substring(i, i + 2));
+    }
+
+    // Concatenate chunked segments and add to output
+    output.push(chunked.join(' '));
+  });
+
+  // Join all processed segments with a space and return
+  return output.join(' ');
+}
+
+function checkHexTextValid() {
+  store.isHexStringValid = store.uartInputTextBox.toUpperCase() === formatHexInput(store.uartInputTextBox);
+  if (!store.isHexStringValid) {
+    store.enableLoopSend = false;
+  }
+}
+
+watch(() => store.isSendTextFormat, (value) => {
+  if (!value) {
+    checkHexTextValid()
+  }
+});
+
+watch(() => store.uartInputTextBox, () => {
+  if (!store.isSendTextFormat) {
+    checkHexTextValid()
+  }
+})
+
+/* patch scroll container does not update clear filter */
+watch(() => store.filterChanged, (value) => {
+  if (value && store.forceToBottom) {
+    scrollToBottom();
+  }
+  store.filterChanged = false;
+})
+
+watch(() => store.RxRemainHexdump, value => {
+  if (value) {
+    RxHexDumpRef.value.scrollTop = RxHexDumpRef.value.scrollHeight;
+  }
+})
+
+watch(() => store.showVirtualScroll, () => {
+  if (store.forceToBottom) {
+    scrollToBottom();
+  }
+});
+
+const handleScroll = () => {
+  if (store.forceToBottom) {
+    if (vuetifyVirtualScrollBarRef.value.scrollTop - lastScrollHeight < 0) {
+      store.forceToBottom = false;
+    } else {
+      scrollToBottom();
+    }
+  } else if ((vuetifyVirtualScrollBarRef.value.scrollHeight -
+      vuetifyVirtualScrollBarRef.value.scrollTop) <= vuetifyVirtualScrollBarRef.value.clientHeight) {
+      store.forceToBottom = true;
+  }
+  lastScrollHeight = vuetifyVirtualScrollBarRef.value.scrollTop;
+};
+
+watch(() => store.forceToBottom, value => {
+  if (value) {
+    setTimeout(scrollToBottom, 0);
+  }
+});
+
+function clearSendInput() {
+  store.uartInputTextBox = ""
+}
+
+function handleTextboxKeydown(ev: KeyboardEvent) {
+  if (ev.ctrlKey && ev.key === 'Enter') {
+    onSendClick();
+  }
+}
+
+function onSendClick() {
+  if (!store.uartInputTextBox && !store.hasAddedText) {
+    globalNotify("无帧头帧尾、发送框无数据发送")
+    return;
+  }
+
+  if (store.acceptIncomingData) {
+    if (store.isSendTextFormat) {
+      store.addString(store.uartInputTextBox, false, true);
+    } else if (!store.isHexStringValid) {
+      store.uartInputTextBox = formatHexInput(store.uartInputTextBox);
+    } else {
+      store.addHexString(store.uartInputTextBox, false, true);
+    }
+  } else {
+    if (store.isSendTextFormat) {
+      store.addString(store.uartInputTextBox, false, true, 1);
+    } else if (!store.isHexStringValid) {
+      store.uartInputTextBox = formatHexInput(store.uartInputTextBox);
+    } else {
+      store.addHexString(store.uartInputTextBox, false, true, 1);
+    }
+  }
+}
+
+</script>

src/views/widgets/uartAtCommand.vue

@@ -0,0 +1,69 @@
+<template>
+  <div ref="rootEl" class="p-1 bg-white text-xs border-b-2">
+    <div v-if="props.editCell">
+      <div>
+        <div class="mb-1">
+          <el-input v-model="model.label" placeholder="Label" size="small">
+            <template #prepend>Label</template>
+          </el-input>
+        </div>
+        <div class="mb-1">
+          <el-input v-model="model.command" placeholder="UART Command" size="small">
+            <template #prepend>Command</template>
+          </el-input>
+        </div>
+      </div>
+    </div>
+    <div v-else-if="width < 250" class="">
+      <div class="truncate flex justify-between">
+        <el-text class="font-bold">{{ model.label }}</el-text>
+        <p class="ml-1 font-mono text-gray-500 text-[10px]">{{ model.command }}</p>
+      </div>
+      <div>
+        <strong>R:</strong>
+        <el-text class="ml-1 font-mono">{{ model.response }}</el-text>
+      </div>
+    </div>
+    <div v-else class="flex text-gray-700">
+      <div class="truncate min-h-8 w-32">
+          <p class="font-bold">{{ model.label }}</p>
+          <p class="font-mono text-gray-500 text-[10px]">{{ model.command }}</p>
+      </div>
+      <div class="pt-0.5">
+        <p class="font-mono text-sm">{{ model.response }}</p>
+      </div>
+    </div>
+  </div>
+</template>
+
+<script setup lang="ts">
+import { defineModel, type PropType, ref } from 'vue'
+import { ElInput, ElText } from 'element-plus'
+import { useElementSize } from '@vueuse/core'
+
+interface UartCommandData {
+  command: string
+  label: string
+  response: string
+  group?: string
+}
+
+const props = defineProps({
+  editCell: {
+    type: Boolean,
+    default: false
+  }
+})
+
+const model = defineModel<UartCommandData>({ required: true })
+
+const rootEl = ref(null)
+const { width } = useElementSize(rootEl)
+</script>
+
+<style scoped>
+.el-input :deep(.el-input-group__prepend) {
+  padding: 0 5px;
+  font-size: 10px;
+}
+</style>

src/views/widgets/widgetLoop.vue

@@ -0,0 +1,233 @@
+<script setup lang="ts">
+import { VueDraggable } from 'vue-draggable-plus'
+import type { DraggableComponent, WidgetItem } from '../../types/grid'
+import { ElButton, ElIcon } from 'element-plus'
+import { markRaw, ref, watch, onMounted, onUnmounted } from 'vue'
+import { debouncedWatch } from '@vueuse/core'
+import type { UartCommandData } from '@/types/grid'
+import UartAtCommand from '@/views/widgets/uartAtCommand.vue'
+import { useWsStore } from '@/stores/websocket'
+import { globalNotify } from '@/composables/notification'
+import { isDevMode } from '@/composables/buildMode'
+import { useSequentialUart } from '@/composables/useSequentialUart'
+import { useCommandLoopManager } from '@/composables/useCommandLoopManager'
+import { translate } from '@/locales'
+
+/* ---------------- props & model ----------------------------------- */
+const modelValue = defineModel<WidgetItem>({ required: true })
+const editCell = defineModel<boolean>('editCell', { required: true })
+
+defineOptions({
+  name: 'WidgetLoop',
+  widgetIconName: 'repeat'
+})
+
+const intervalMS = ref(0)
+const active = ref(false)
+
+// Get command loop manager
+const commandLoopManager = useCommandLoopManager()
+const { sendCommands } = useSequentialUart()
+const widgetId = ref(`widget-${modelValue.value.i}`)
+
+// This watcher handles enabling or disabling the recurring task.
+watch(active, (isActive) => {
+  if (isActive) {
+    // When activated, register the loop if the interval is valid.
+    const intervalValue = typeof intervalMS.value === 'string' ? parseInt(intervalMS.value, 10) : intervalMS.value;
+    if (intervalValue > 0) {
+      commandLoopManager.registerLoop(widgetId.value, intervalValue, runCommands);
+    }
+  } else {
+    // When deactivated, always unregister the loop.
+    commandLoopManager.unregisterLoop(widgetId.value);
+  }
+});
+
+// This watcher handles changes to the interval, but only if the loop is active.
+debouncedWatch(intervalMS, (newInterval) => {
+  // If the loop isn't active, do nothing. The `active` watcher handles state.
+  if (!active.value) {
+    // If the interval is cleared while inactive, ensure it's unregistered.
+    if (!newInterval || newInterval <= 0) {
+        commandLoopManager.unregisterLoop(widgetId.value);
+    }
+    return;
+  }
+
+  const intervalValue = typeof newInterval === 'string' ? parseInt(newInterval, 10) : newInterval;
+
+  // The registerLoop function internally handles unregistering the old task.
+  // It will also handle unregistering if the new interval is invalid (e.g., 0).
+  commandLoopManager.registerLoop(widgetId.value, intervalValue, runCommands);
+
+}, { debounce: 500 });
+
+const handleAddItem = () => {
+  const newId =
+    Math.max(
+      0,
+      ...modelValue.value.widgetProps.map((item) => item.id)
+    ) + 1
+  const newItem: DraggableComponent<UartCommandData> = {
+    id: newId,
+    componentType: markRaw(UartAtCommand),
+    props: {
+      label: 'New Command',
+      command: 'AT+CMD',
+      response: ''
+    }
+  }
+  modelValue.value.widgetProps.push(newItem)
+}
+
+function deleteItem(id: number) {
+  const index = modelValue.value.widgetProps.findIndex((item) => item.id === id)
+  if (index !== -1) {
+    modelValue.value.widgetProps.splice(index, 1)
+  }
+}
+
+/* optional helper if you still need cloning */
+function rawClone(item: DraggableComponent): DraggableComponent {
+  return { ...item } // already plain in parent
+}
+
+function ensureUniqueId(evt: any) {
+  const arr = modelValue.value.widgetProps
+  const moved = arr[evt.newIndex]       // item that just arrived
+  const hasDuplicate = arr.filter(i => i.id === moved.id).length > 1
+  if (hasDuplicate) {
+    // e.g. give it the next free integer
+    const max = Math.max(...arr.map(i => i.id))
+    moved.id = max + 1
+  }
+}
+
+const executeOnce = () => {
+  // Register a one-time execution with the command loop manager
+  // Set as highest priority by using a very small interval (1ms)
+  commandLoopManager.registerLoop(
+    `${widgetId.value}-once-${Date.now()}`, // Unique ID
+    1, // 1ms interval (will be executed immediately)
+    runCommands,
+    true // oneTime = true
+  )
+}
+
+const runCommands = async () => {
+  if (useWsStore().state !== 'CONNECTED') {
+    globalNotify('Device not connected', 'error');
+    return
+  }
+
+  const commandsToRun = modelValue.value.widgetProps
+  if (!commandsToRun || commandsToRun.length === 0) return
+
+  // Extract command strings
+  const commandStrings = commandsToRun.map(cmd => cmd.props.command)
+
+  if (isDevMode()) {
+    console.log('Running commands:', commandStrings)
+  }
+
+  // Execute all commands at once
+  const responses = await sendCommands(commandStrings)
+
+  // Update responses in UI
+  commandsToRun.forEach((command, index) => {
+    if (index < responses.length) {
+      command.props.response = responses[index] || 'No response'
+    }
+  })
+}
+
+// Cleanup on unmount
+onUnmounted(() => {
+  commandLoopManager.unregisterLoop(widgetId.value)
+})
+
+// Initialize on mount
+onMounted(() => {
+  // On component mount, only register if it's explicitly set to active and has an interval.
+  if (active.value && intervalMS.value > 0) {
+    commandLoopManager.registerLoop(
+      widgetId.value,
+      intervalMS.value,
+      runCommands
+    )
+  }
+})
+</script>
+
+<template>
+  <div class="flex flex-col h-full p-1">
+    <VueDraggable
+      v-model="modelValue.widgetProps"
+      item-key="id"
+      class="flex-1 min-h-0 overflow-y-auto"
+      group="people"
+      :clone="rawClone"
+      :animation="100"
+      direction="vertical"
+      handle=".drag-handle"
+      @add="ensureUniqueId"
+    >
+      <div v-for="row in modelValue.widgetProps" :key="row.id" class="flex flex-row items-center">
+        <el-tag v-if="editCell" size="large" type="success" class="drag-handle cursor-move">
+          =
+        </el-tag>
+        <component
+          :is="row.componentType"
+          v-model:modelValue="row.props"
+          :editCell="editCell"
+          class="flex-1"
+        />
+        <el-button
+          v-if="editCell"
+          type="danger"
+          size="small"
+          @click="deleteItem(row.id)"
+          circle
+        >
+          <InlineSvg name="trash" width="20"></InlineSvg>
+        </el-button>
+      </div>
+    </VueDraggable>
+    <div v-if="editCell" class="bg-gray-50 flex gap-1">
+      <el-button type="primary" size="small" @click="handleAddItem">{{ translate('widget.addCommand') }}</el-button>
+      <div>
+        <el-popover
+          placement="top-start"
+          trigger="hover"
+          :show-after="1000"
+          :content="translate('widget.loopInterval')"
+        >
+          <template #reference>
+            <el-input
+                v-model="intervalMS"
+                size="small"
+                type="number"
+                :min="0"
+                :max="2147483647"
+              >
+                <template #prepend>
+                  <InlineSvg name="repeat" width="20"></InlineSvg>
+                </template>
+              </el-input>
+          </template>
+        </el-popover>
+      </div>
+    </div>
+  </div>
+  <teleport defer :to="`#tp-widget-before-${modelValue.i}`">
+    <el-button plain size="small" @click="active = !active" :type="active ? 'success' : 'info'">
+        {{ intervalMS }}ms
+    </el-button>
+  </teleport>
+  <teleport defer :to="`#tp-widget-${modelValue.i}`">
+    <el-button text bg size="small" @click="executeOnce">
+      <InlineSvg name="play" width="20"></InlineSvg>
+    </el-button>
+  </teleport>
+</template>

src/views/widgets/widgetTemplate.vue

@@ -0,0 +1,37 @@
+<!-- CommandWidget.vue -->
+<script setup lang="ts">
+import { VueDraggable } from 'vue-draggable-plus'
+import type { DraggableComponent } from '../../types/grid'
+
+/* ---------------- props & model ----------------------------------- */
+const modelValue = defineModel<DraggableComponent[]>({ required: true })
+defineProps<{
+  editCell: boolean
+}>()
+
+/* optional helper if you still need cloning */
+function rawClone(item: DraggableComponent): DraggableComponent {
+  return { ...item } // already plain in parent
+}
+</script>
+
+<template>
+  <VueDraggable
+    v-model="modelValue"
+    item-key="id"
+    class="h-full flex flex-col"
+    group="people"
+    :clone="rawClone"
+    :animation="100"
+    direction="vertical"
+    handle=".drag-handle"
+  >
+    <component
+      v-for="row in modelValue"
+      :key="row.id"
+      :is="row.componentType"
+      v-model:modelValue="row.props"
+      :is-editing-cell="editCell"
+    />
+  </VueDraggable>
+</template>

vite.config.ts

@@ -7,7 +7,7 @@ import vue from '@vitejs/plugin-vue'
 import svgLoader from "vite-svg-loader";
 import cssInjectedByJsPlugin from "vite-plugin-css-injected-by-js";
 import { viteSingleFile } from 'vite-plugin-singlefile'
-
+import vuetify from 'vite-plugin-vuetify'

 // https://vitejs.dev/config/
 export default ({mode}: ConfigEnv) => {
@@ -25,6 +25,7 @@ export default ({mode}: ConfigEnv) => {
       svgLoader(),
       cssInjectedByJsPlugin(),
       viteSingleFile(),
+      vuetify(),
     ],
     define: {},
     resolve: {
